Product Description

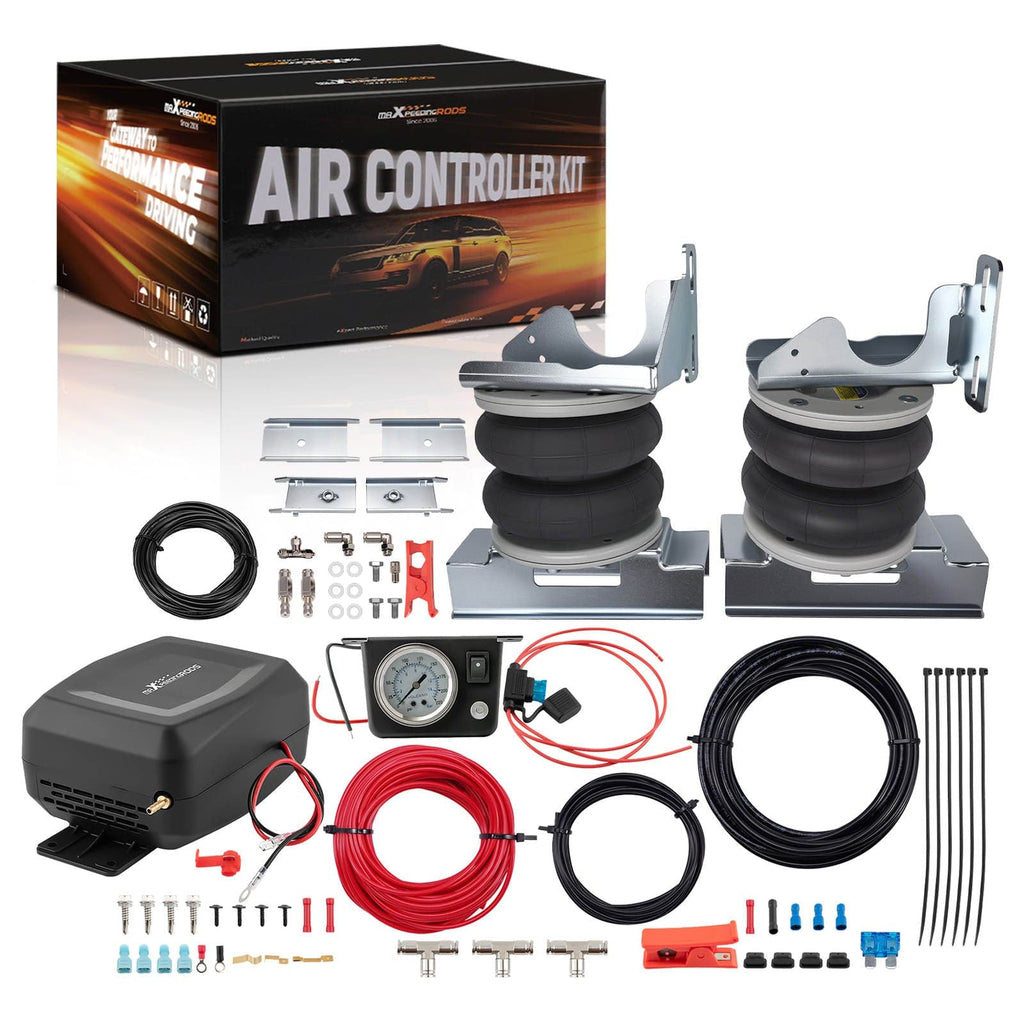

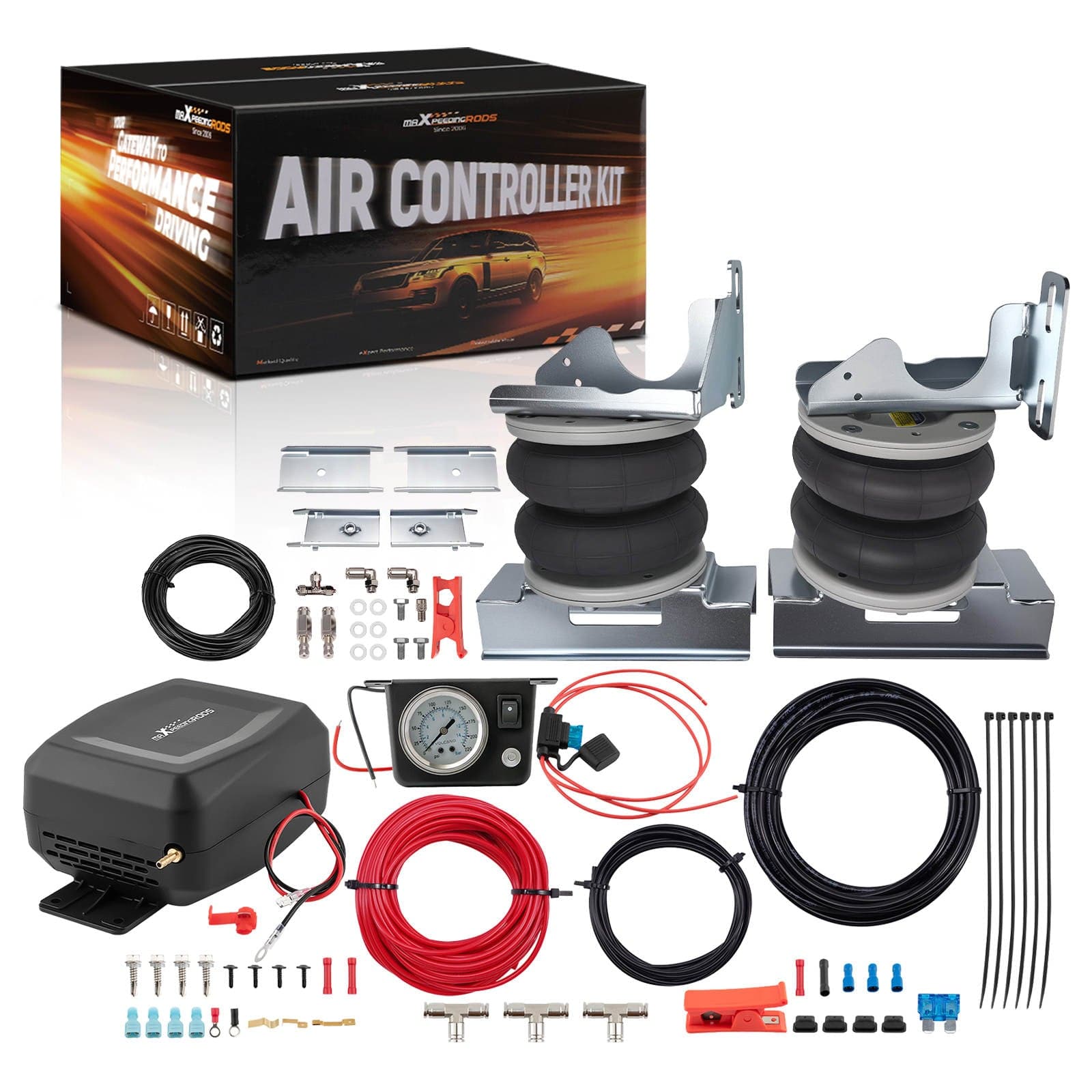

This rear air suspension with compressor controller kit is intended for the Mercedes-Benz Sprinter.

Suitable for:

• Mercedes-Benz Sprinter, 2006-2022, single rear wheel RWD and FWD, round axle

Please note: only for single rear wheel RWD and FWD round axle versions. Chassis type: all standard chassis, except Alko chassis with torsion bars. Body type: van, tipper, camper, minibus, Luton, crew bus, tow truck, horse trailer, pick-up.

Specifications

• Condition: Brand new
• Air spring bag kit material: Galvanized high-grade steel S355, rubber
• Max. load: 4000 kg (8818 lbs)
• Installation position: Rear left and right
• Drive: Rear-wheel and front-wheel drive
• Rear wheel configuration: Single rear wheel
• Stroke: 140 mm
• Max. extended: 230 mm
• Min. compressed: 90 mm
• Working pressure: ≤2.0 Mpa
• Temperature range: ≤+70°C, ≥-40°C
• Max. compressor air pressure: 100 psi
• Recommended compressor working pressure: 5-70 psi
• Drilling required: yes
• Installation manual: included

Scope of Delivery

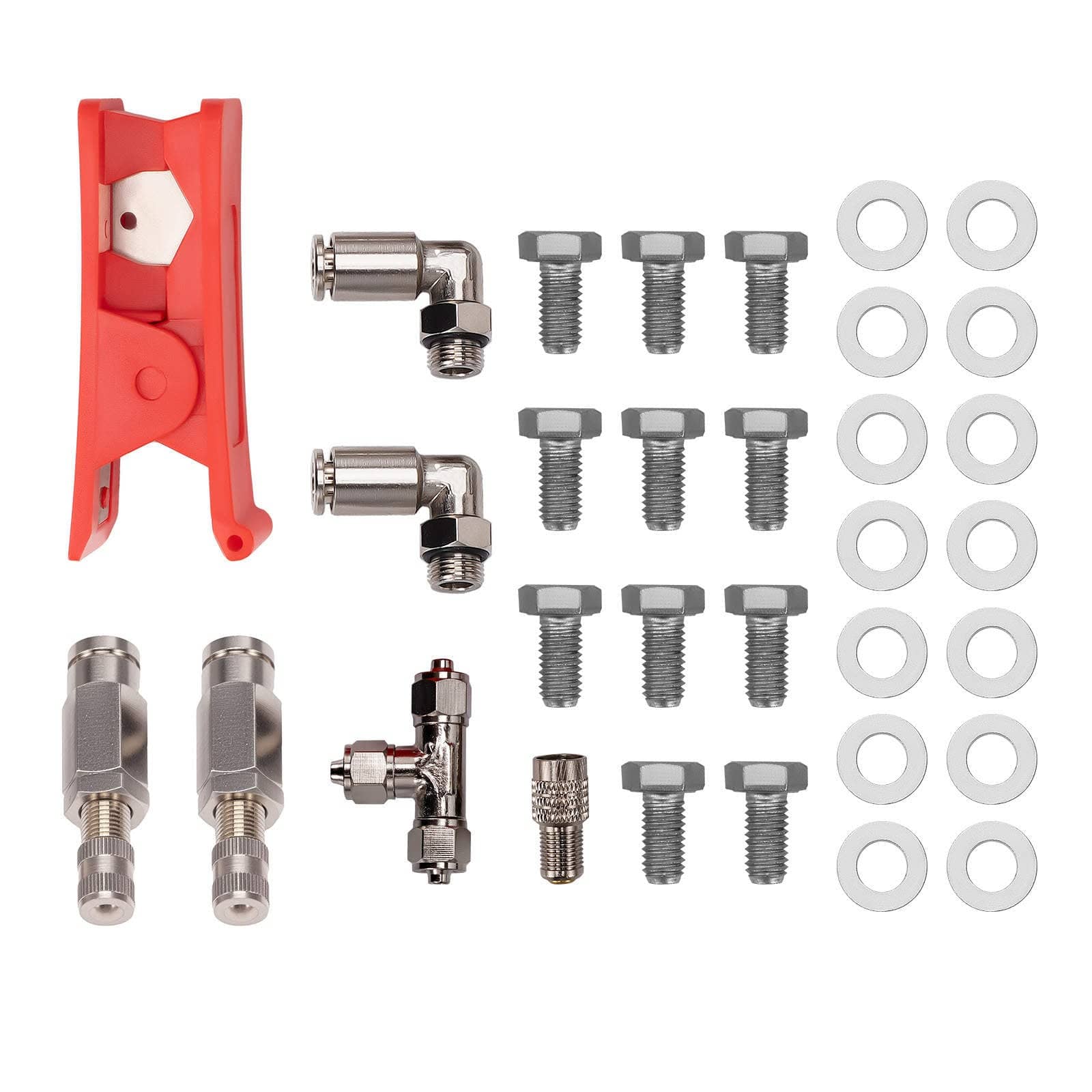

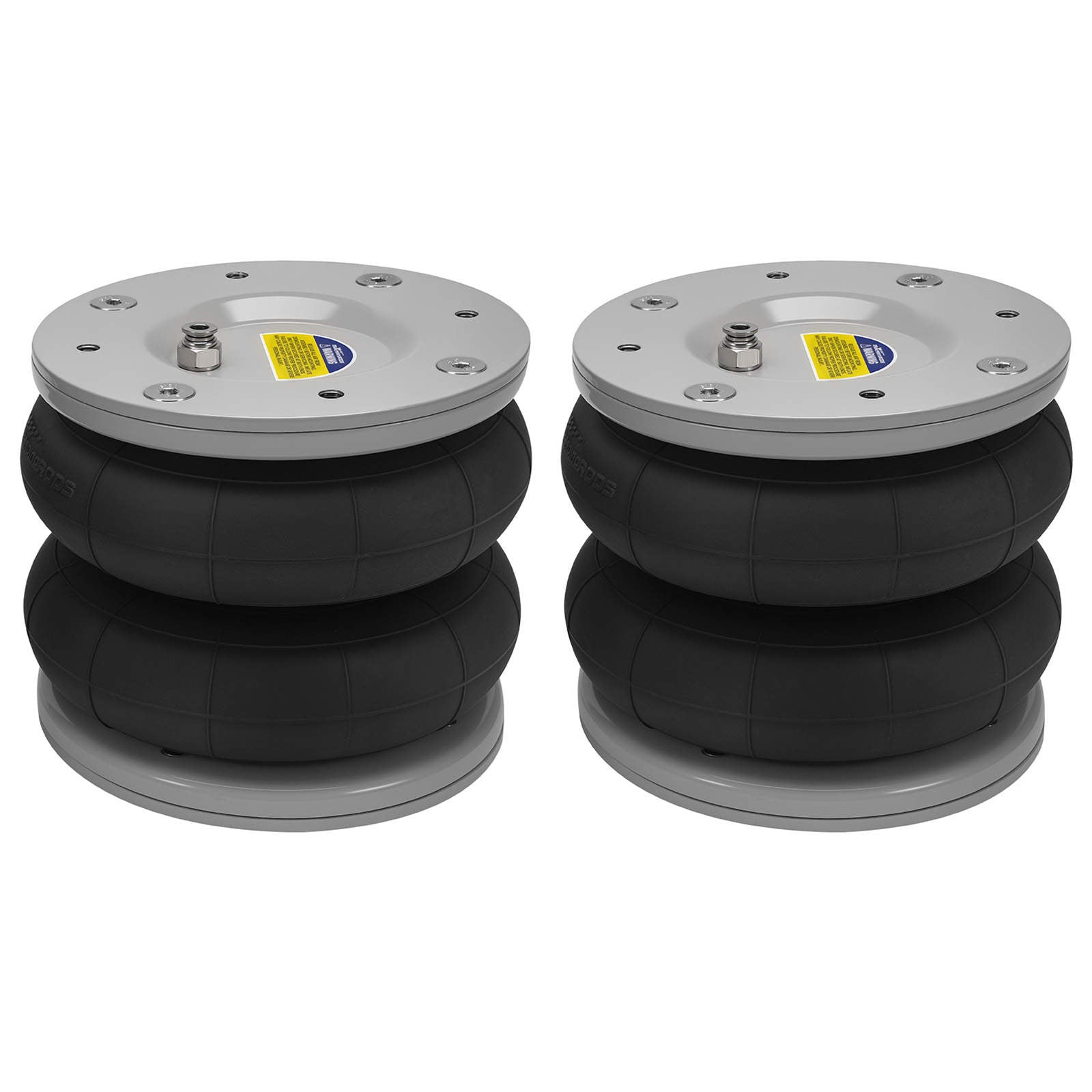

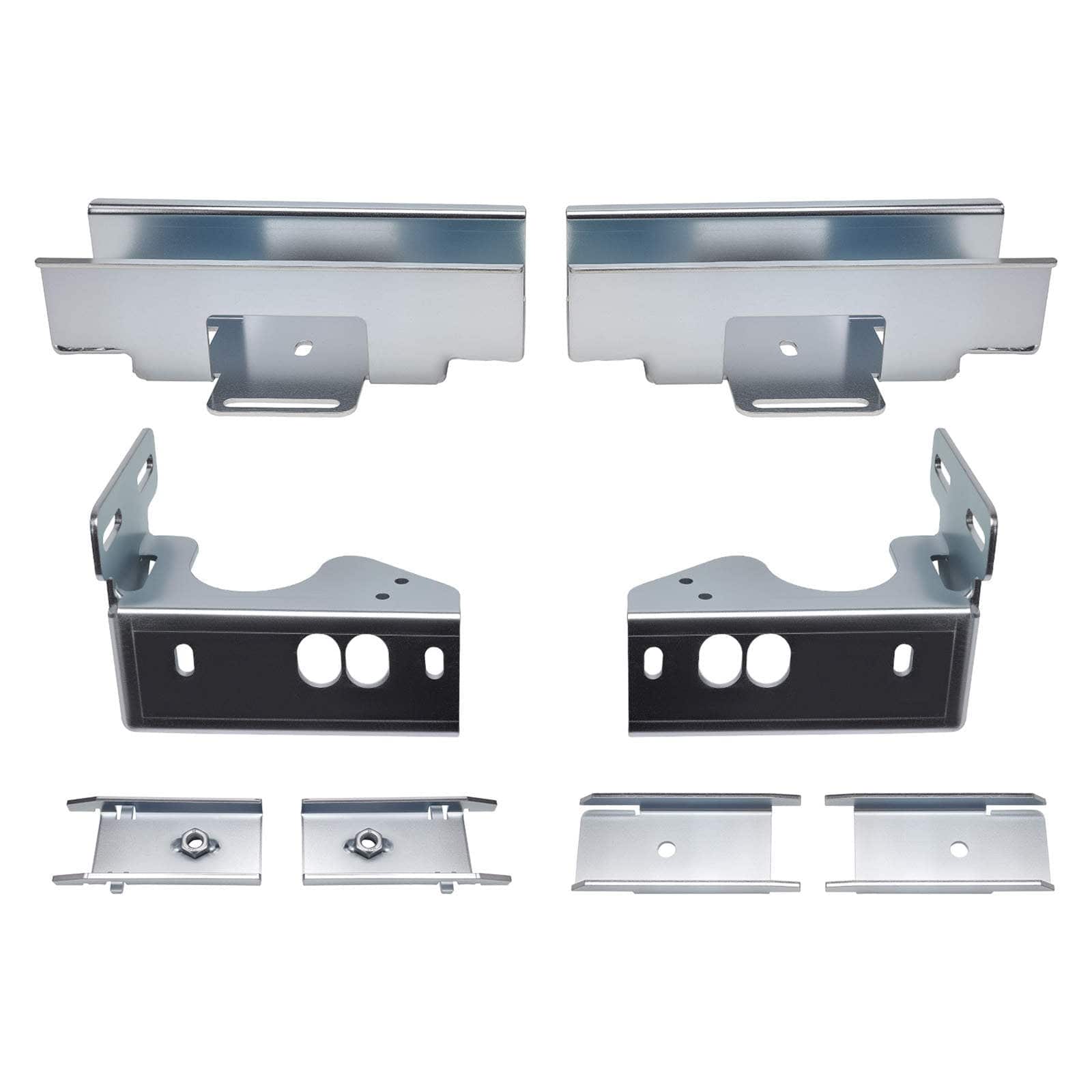

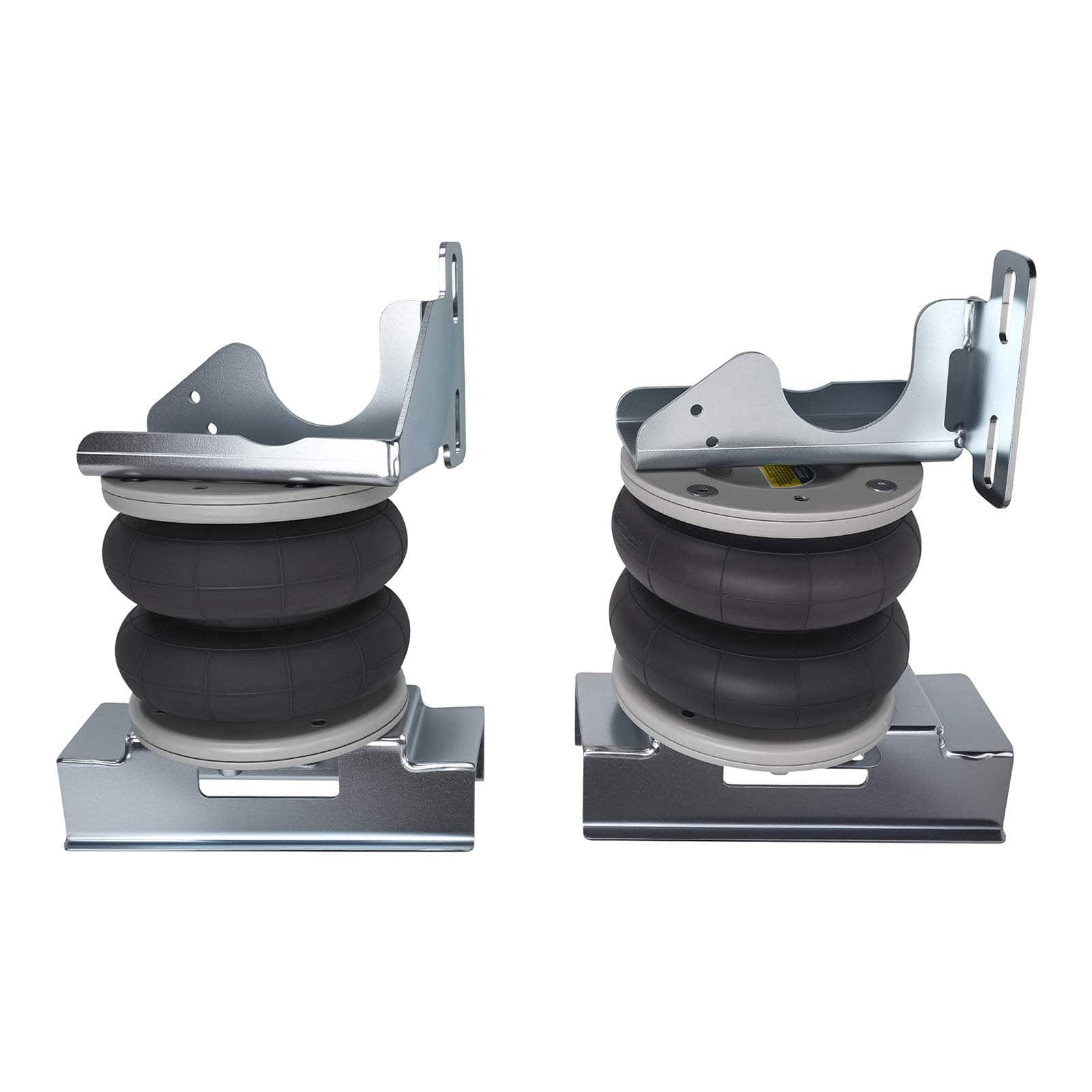

Air suspension kit: 2x air spring, 8x mounting bracket, 1x 11.5 m air line, mounting screws and air connections.
Compressor controller kit: 1x 12V air compressor (black), 1x pressure gauge panel (up/down buttons), 1x air line ø6x1 (6 m), 1x wiring harness (2.5 m) black, 1x wiring harness (8.5 m) red, 1x relay cord (1 m), 3x T-connectors, some other accessories.

Features

• Stress test of more than 5,000,000 times: durable and safe
• Burst pressure ≥2.0 MPa: high pressure resistance and less noise
• 100% airtightness guarantee
• Temperature range ≥-40°C/≤70°C, premium natural rubber material
• 4-layer reinforced construction for better air spring load support
• High-quality steel with high load capacity and long service life
• Practical and solid screw mounting
• Safe load capacity and stability
• Restores original ride height and improves ride quality
• Improves ride comfort and reduces tire wear
• Dacromet surface treatment for excellent corrosion resistance
• Allows control and adjustment of air pressure in the air spring bag from the driver's seat
• Suitable for light to medium-duty applications and occasional towing
• Includes on-board air compressor, single gauge panel, air lines and mounting hardware
• Single-path control allowing you to set a pair of air springs
• Strict quality control for long-term use without damage
• Wiring harness with flame-retardant properties
• Compressor with waterproof housing

Please note

Before purchasing, compare with the product images and the OE number to avoid incorrect purchases. Professional installation is recommended; the installation manual is available. Do you have any questions or wishes? Please contact us.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
