Product Description

Air spring (air bellow) kit with compressor and controller set for the Mercedes-Benz Sprinter and VW Crafter with twin rear wheels.

Suitable for:

• VW Crafter 4x4, twin rear wheels
• Mercedes-Benz Sprinter 4x4, twin rear wheels

Please note: fits vehicles with dual rear wheels and a 4-inch axle beam.

Specifications

• Condition: Brand new
• Air Bellow Kit – installation position: Rear left and right
• Air Bellow Kit – design height: 152 mm, stroke 110 mm, max extended 175 mm, min compressed 65 mm
• Air Bellow Kit – load capacity: Max. 5600 LBS
• Compressor Kit – maximum air pressure: 100 psi
• Compressor Kit – recommended operating pressure: 5-70 PSI

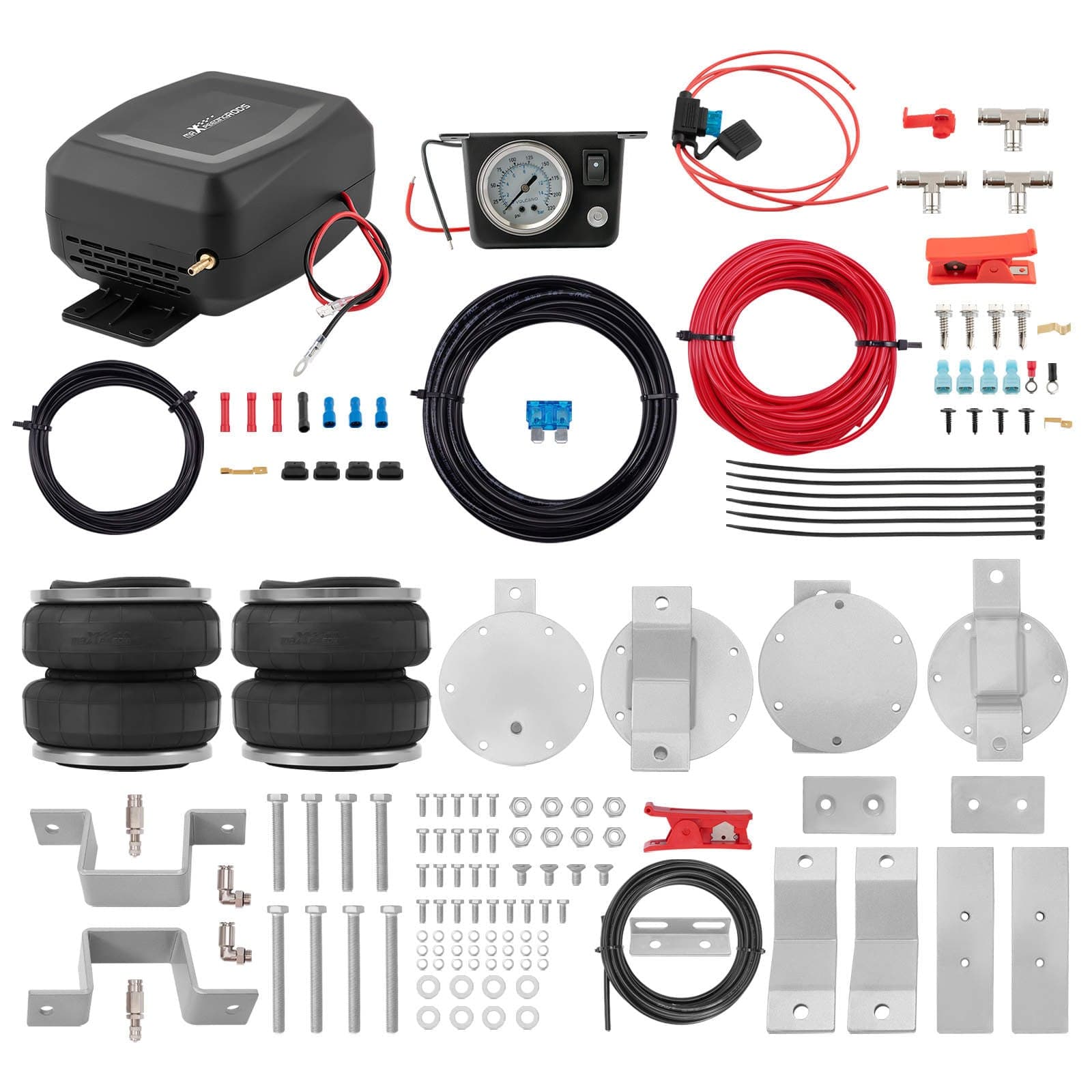

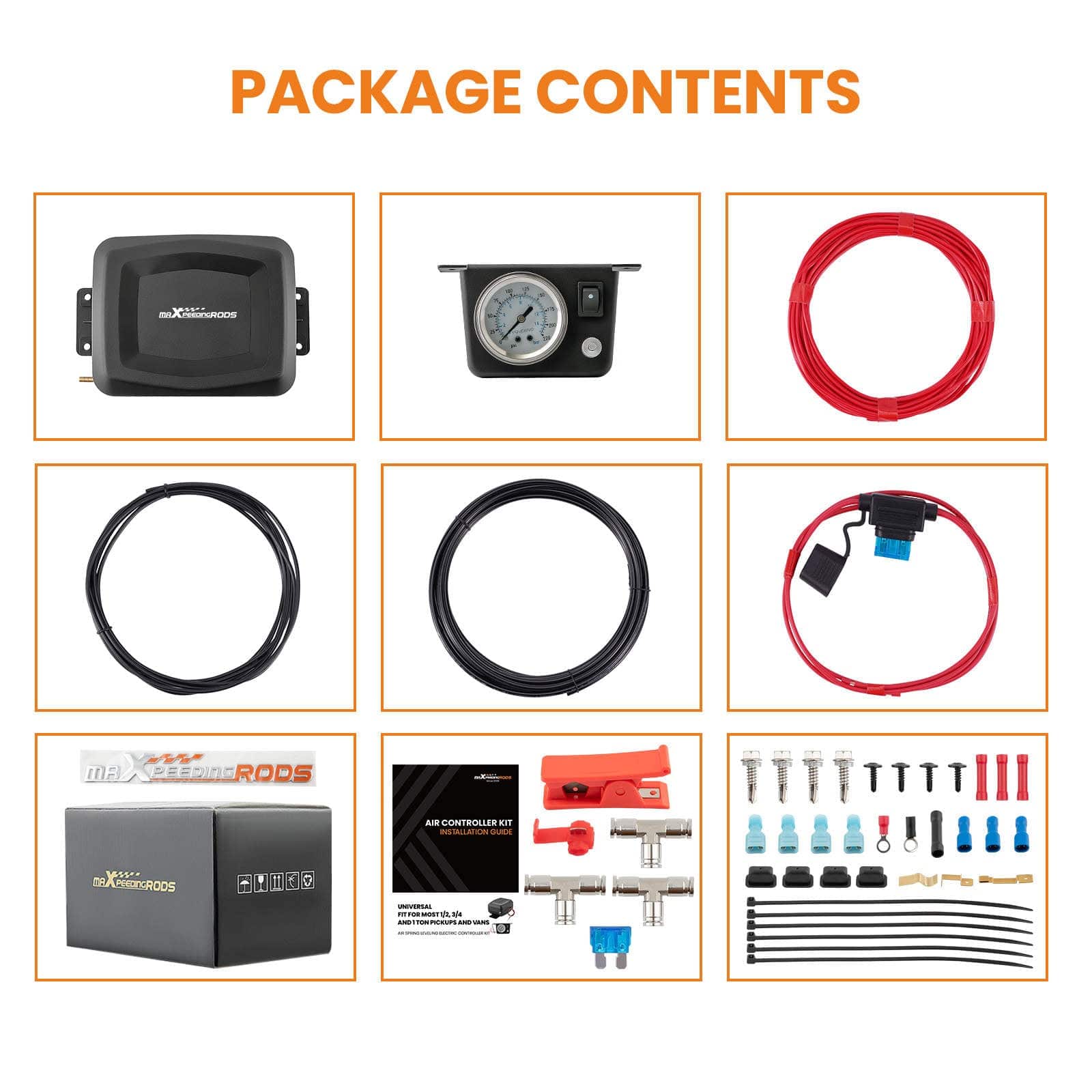

Scope of delivery

Air suspension kit: 2x heavy-duty double convoluted air spring, 4x upper and lower mounting brackets, mounting hardware.

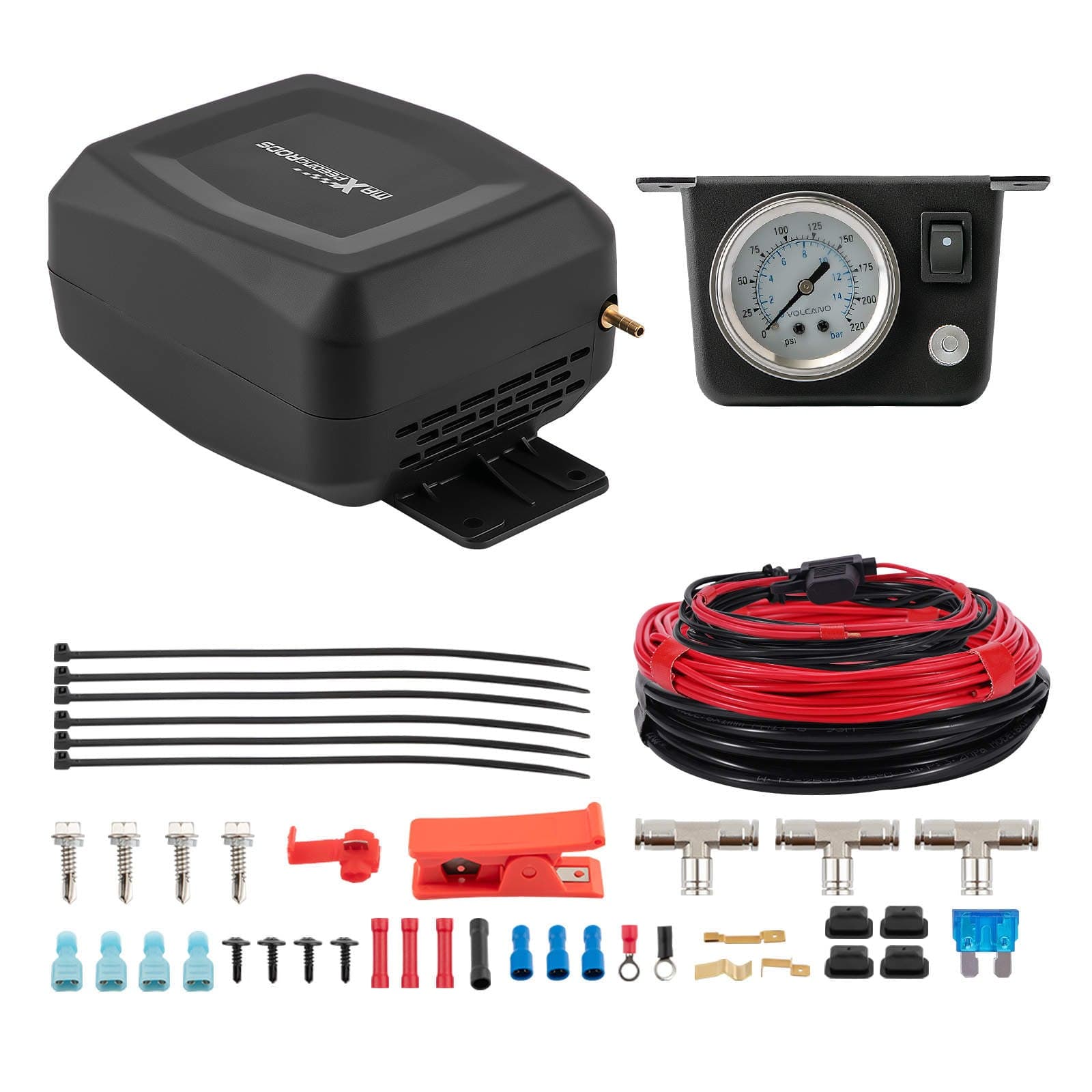

Compressor and controller kit: 1x 12V MaXpeedingrods air compressor (black), 1x gauge panel (up/down push buttons), 1x air line Ø6*1 (6m), 1x wiring harness (2.5m) black, 1x wiring harness (8.5m) red, 1x relay wiring (1m), 3x T-connectors and other accessories.

Features

• Load tested over 5,000,000 times: durable and safe
• Burst pressure ≥ 2.0 MPa: high pressure resistance and low noise
• 100% airtight guarantee
• Temperature range ≥ -40°C / ≤ 70°C: high-quality natural rubber material
• 4-layer reinforced construction for better load-bearing capacity
• High-quality steel for high load capacity and long service life
• Restores original ride height and improves ride comfort, reduces tire wear
• Dacromet surface treatment for excellent corrosion resistance

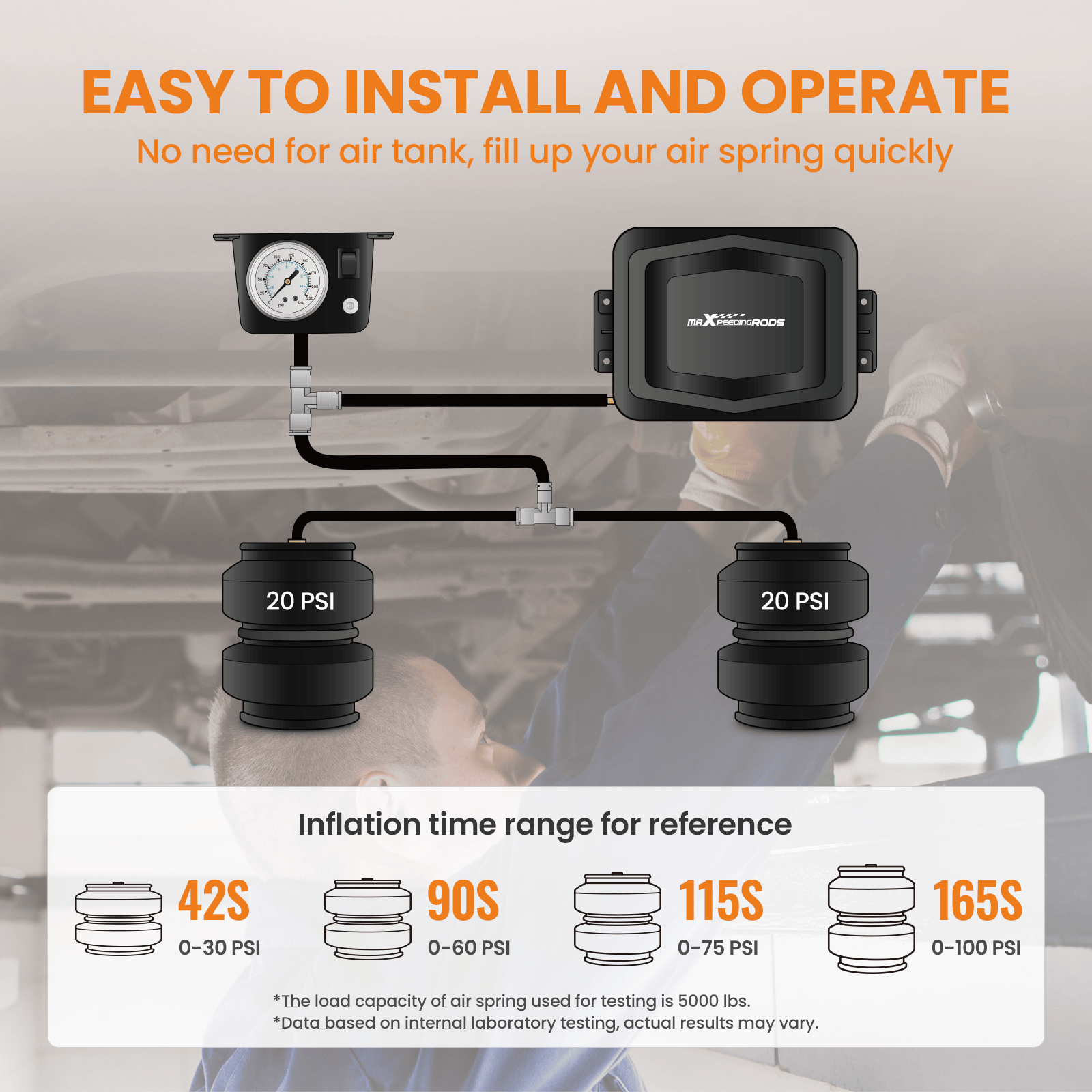

• Air pressure in the air spring can be monitored and adjusted from the driver's seat
• Suitable for light to medium duty applications and occasional towing

Please note

Before purchasing, compare the product photos and OE number to avoid incorrect purchases. Professional installation recommended.

Check fitment

Before ordering, always check the original OEM part number, year of manufacture, engine code, and vehicle version, as there may be differences depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
