Rear Air Suspension with Wireless Compressor Kit suitable for Mercedes Sprinter 4X2 1995-
Rear Air Suspension with Wireless Compressor Kit suitable for Mercedes Sprinter 4X2 1995-
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product Description

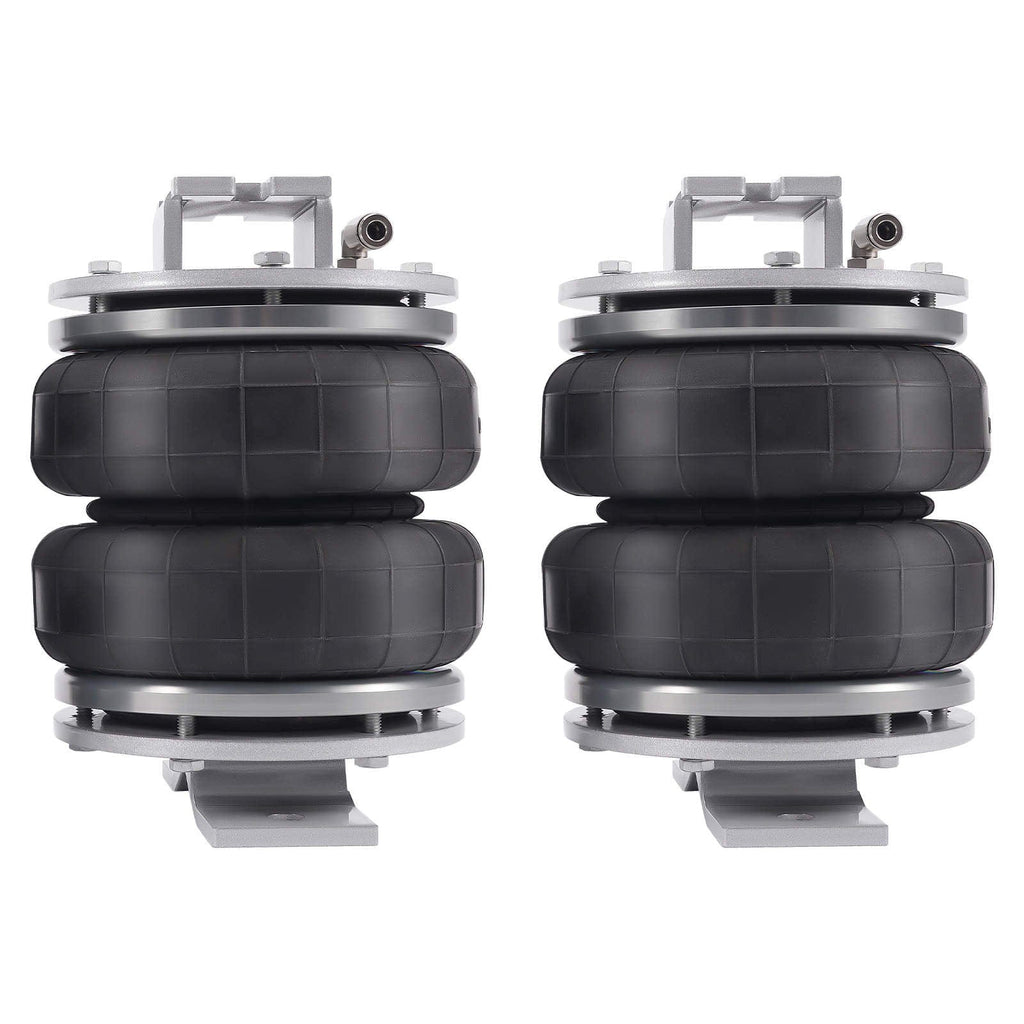

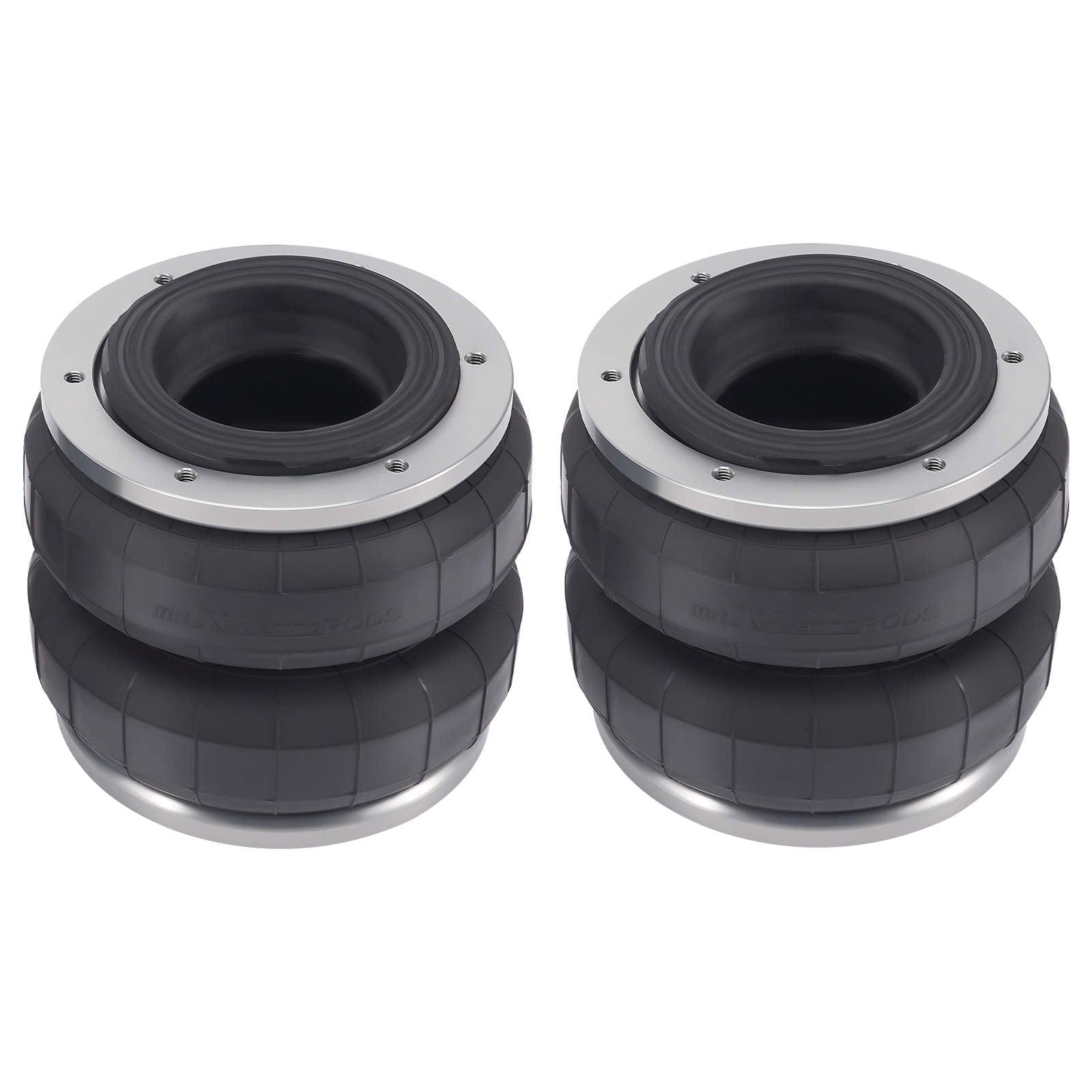

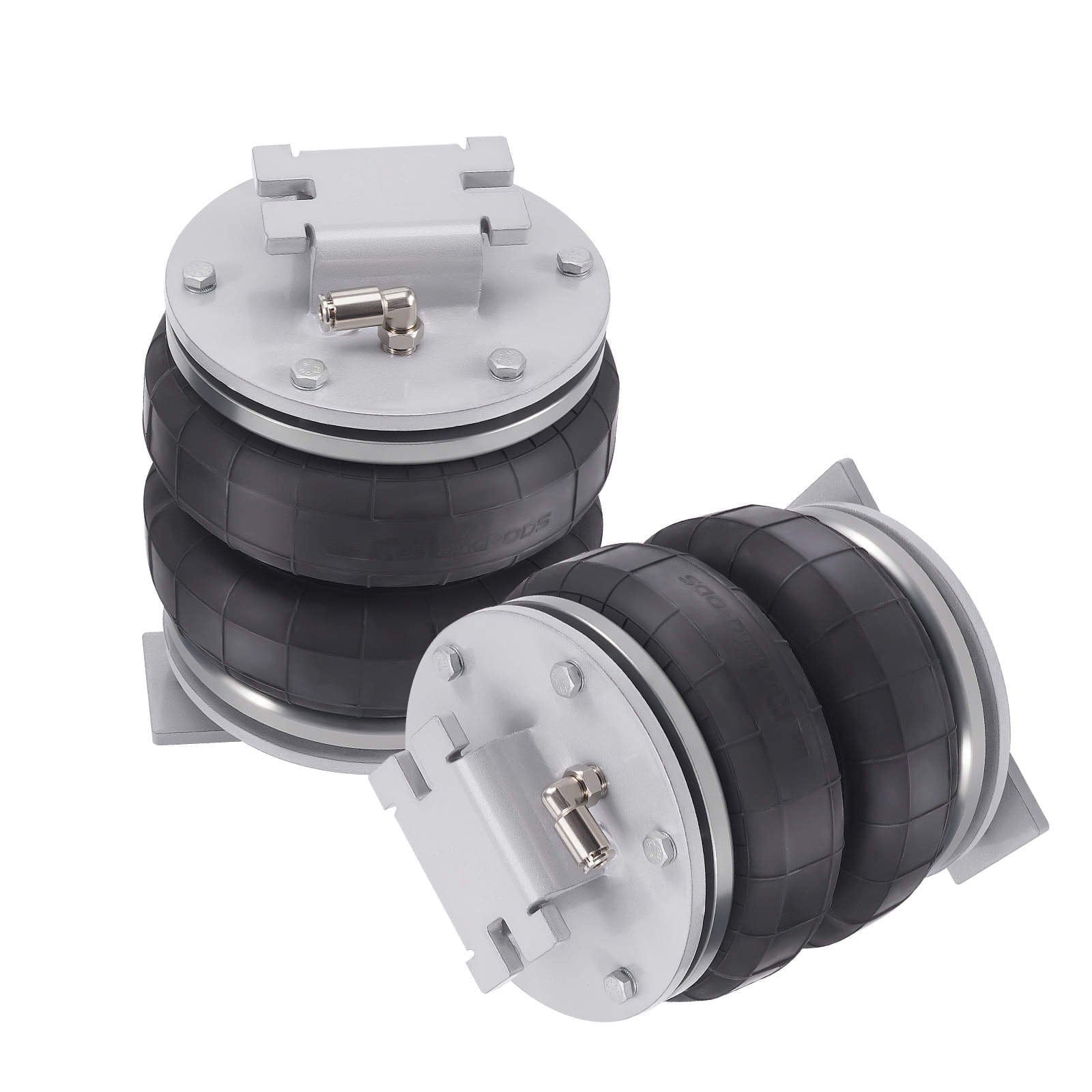

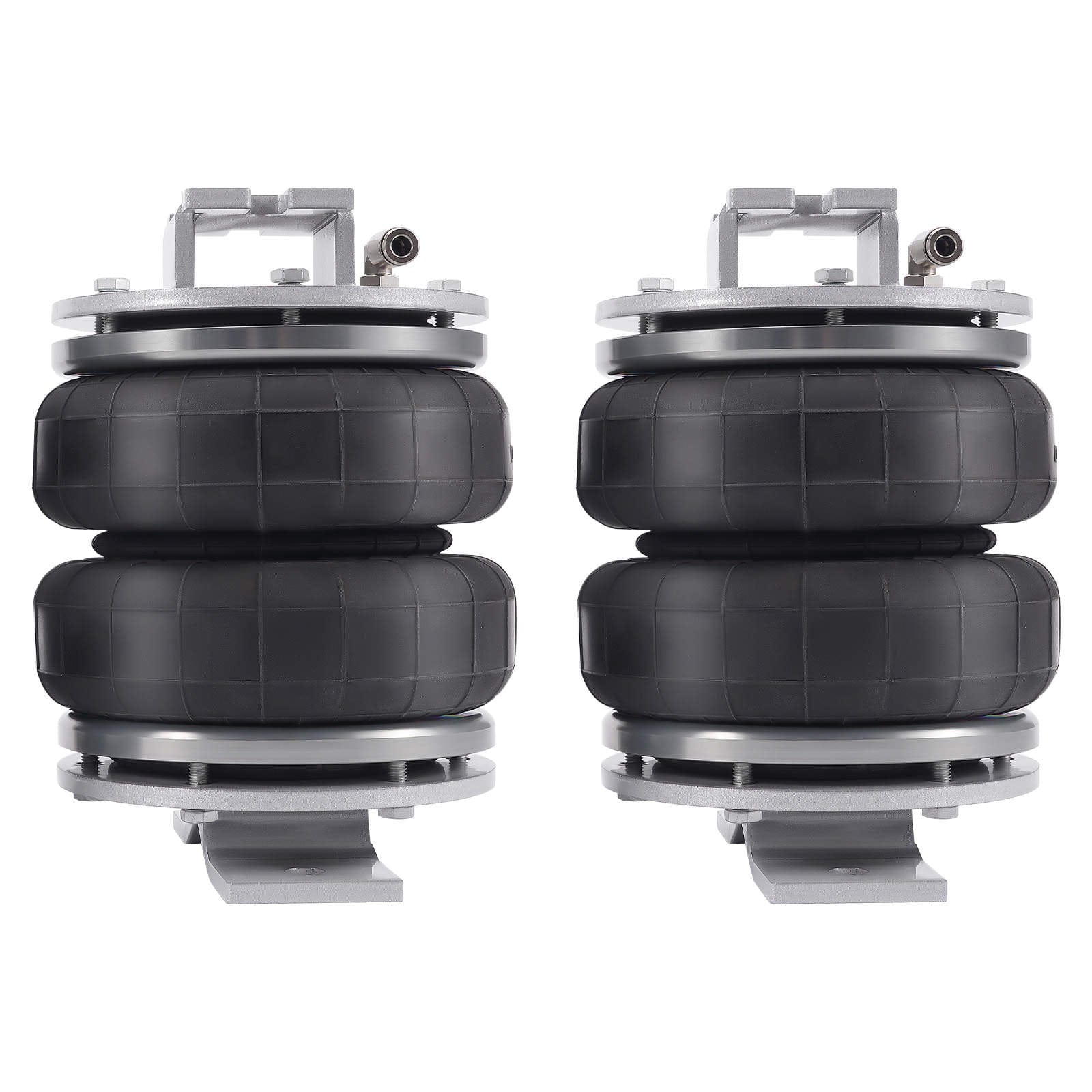

Rear air suspension (double convoluted air spring, heavy duty) with wireless compressor control system, intended for a single rear wheel with a 3-inch axle tube.
Suitable for:
- Volkswagen Crafter 4X2 (1995-2021)
- Mercedes-Benz Sprinter 4X2 (1995-2021)
Specifications
- Installation position: rear, left and right
- Load capacity: max. 5600 LBS
- Design height: 152 mm
- Stroke: 110 mm
- Max. extended: 175 mm
- Min. compressed: 65 mm
- Top plate length: 135 mm
- Top plate height: 38 mm
- Bottom plate length: 135 mm
- Bottom plate height: 33.3 mm
- Max. compressor air pressure: 120 psi
- Recommended operating pressure: 50-70 psi
- Condition: brand new

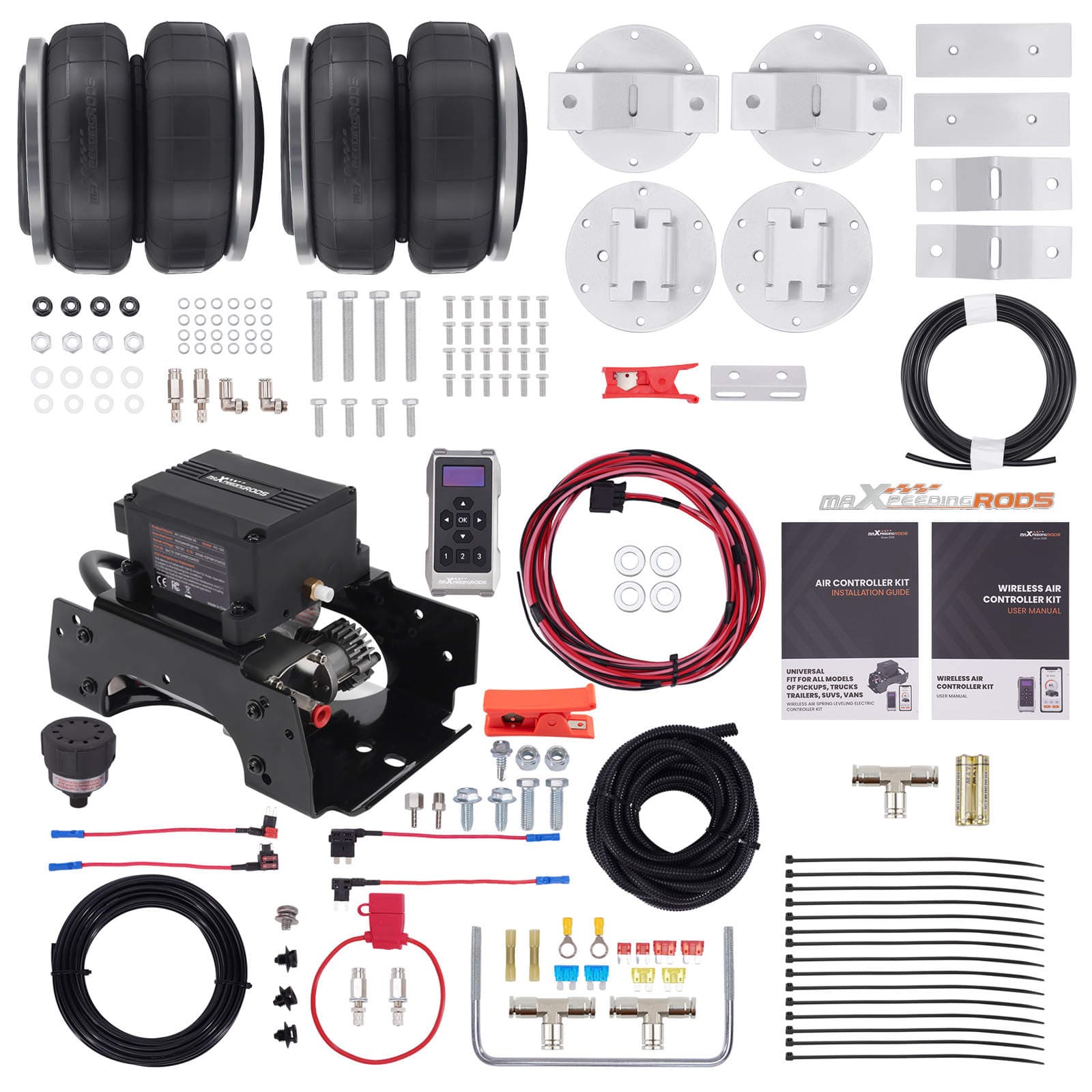

Scope of delivery

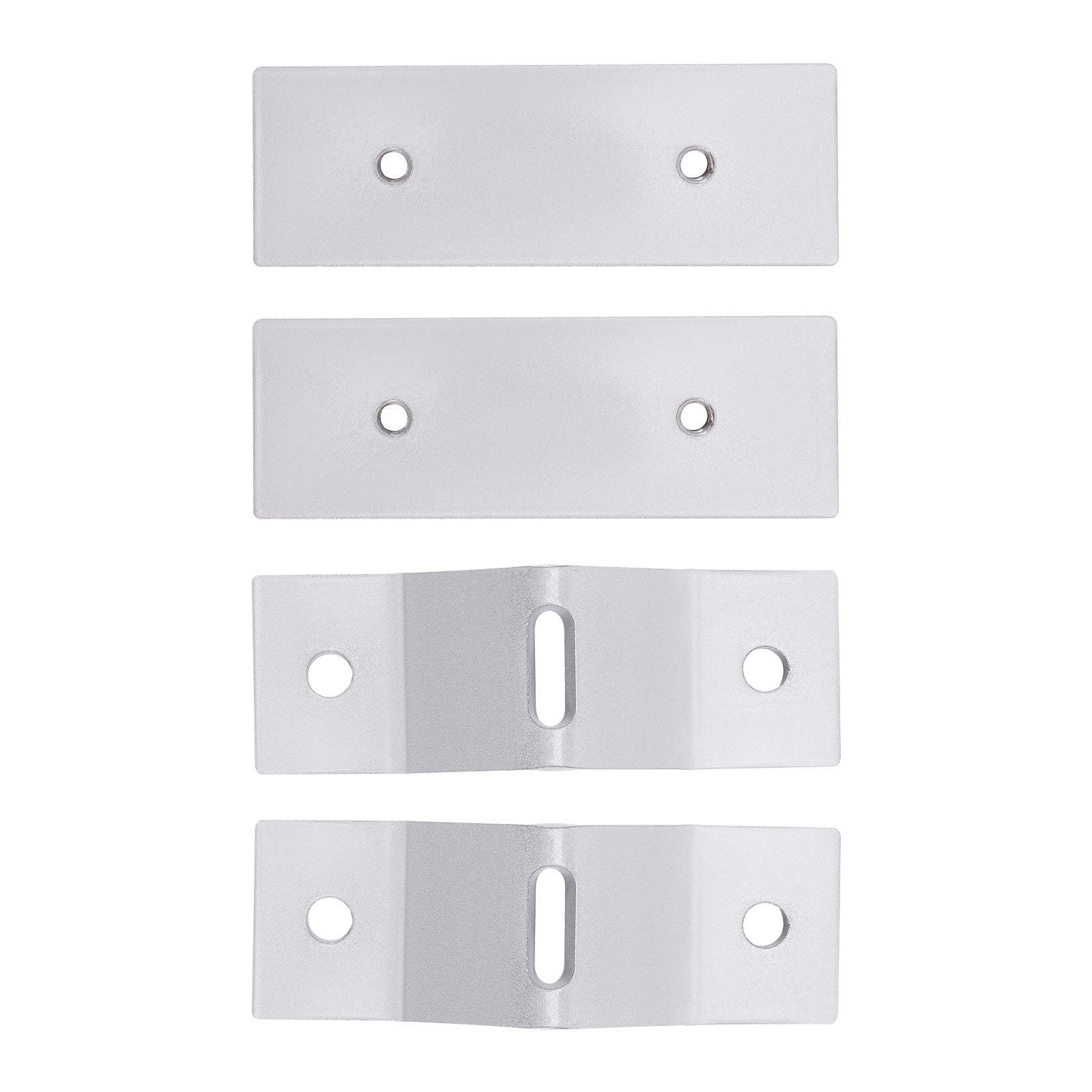

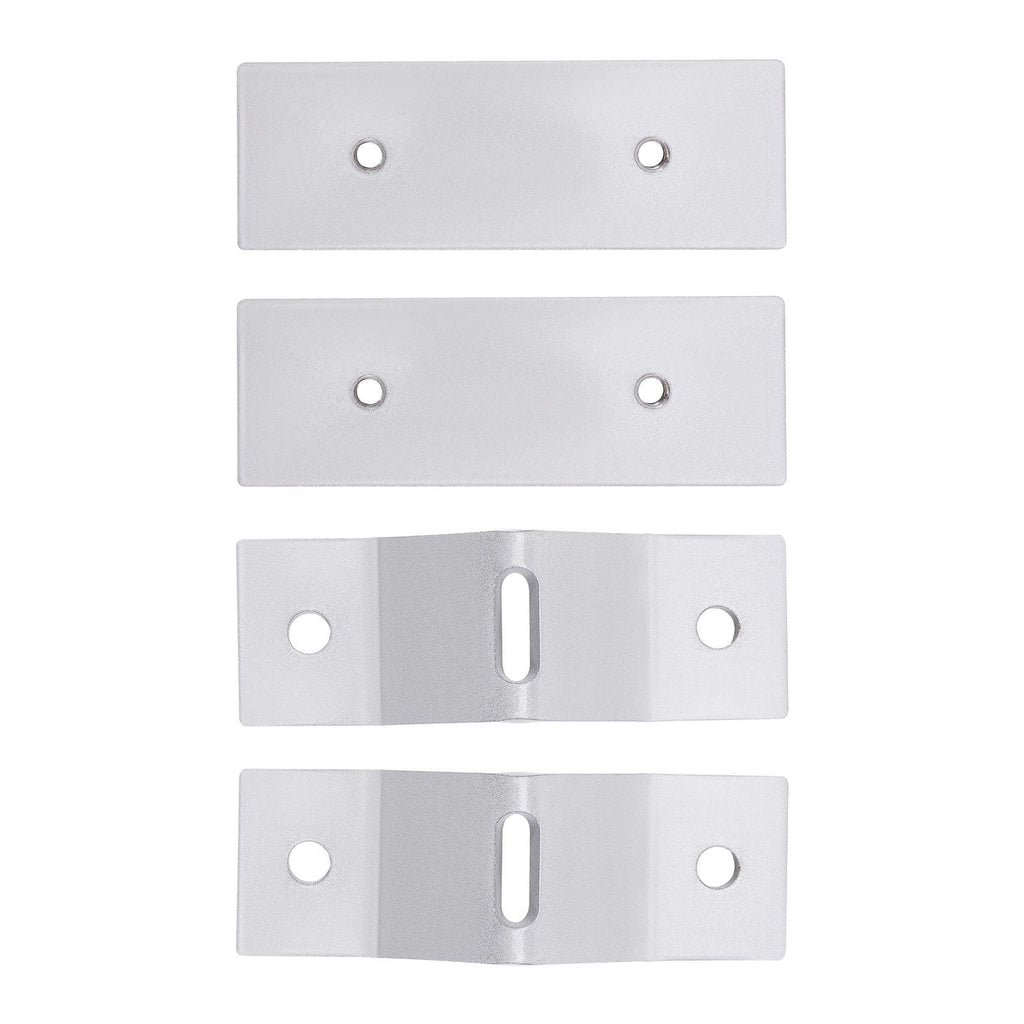

Air suspension kit: 2x double convoluted air springs (heavy duty), 4x upper and lower mounting brackets, mounting hardware.
Wireless compressor kit: 1x compressor control system, 1x wireless remote control, 1x air line φ6x1 (12 m), 1x air filter, 1x wiring harness (6 m), 1x relay cable set (1 m), 3x T-connectors and other mounting hardware. Installation manual included.
Features
- Load test of more than 5,000,000 cycles: durable and safe
- Burst pressure ≥ 2.0 MPa: high pressure resistance and low noise
- 100% airtightness guarantee, temperature range ≥ -40°C / ≤ 70°C, high-quality natural rubber
- 4-layer reinforced construction for higher load capacity
- Restores original vehicle height, improves ride comfort and reduces tire wear
- Wireless control (with app) to activate the compressor from inside or outside the cabin, with three presets
- No air lines or wiring harnesses required in the cabin
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Feel free to contact us before purchasing.
