K03 Turbocharger compatible for Audi A4 2,0TFSI B7 2005-2008 2.0L with manifold 53039700106

This MaXpeedingRods part is suitable for Audi applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Audi A4 2.0 TFSI (B7) BGB200HP 147KW2004 - 2008

suitable for Audi A4 2.0 TFSI (B7) BWE 200HP 147KW2005- 2008

suitable for Audi A4 2.0 TFSI (B7) BUL220HP 147KW2005 - 2008

For AudiA6 2.0 TFSI (C6) BPJ170HP 125KW2005

Suitable for Seat Exeo 2.0 TFSI BWE 200HP 147KW2009 - 2012OE part number53039880106 , 53039700106,

53039700087, 53039880087,

5303-988-0086, 53039880086,

5303-988-0106 , 5303-970-0106,

5303-988-0087 , 5303-970-0087,

06A145701A, 06A145701AX, 06A145701AV,

06D145701B, 06D145701BX, 06D145701BV,

06D145701C, 06D145701CX, 06D145701CV,

06D145701D, 06D145701DX, 06D145701DV,

06D145701E, 06D145701EX, 06D145701EV,

06D145701F, 06D145701FX, 06D145701FV,

06D145701H, 06D145701HX, 06D145701HV,

06D145701J,06D145701JX, 06D145701JV,Specifications Turbo Model: K03-2080DCB5.88KCAXK

Engine model: 2.0 TFSI along

Cooling Type：water Cooled

Bearing Type: Floating Bearing

Trust bearing: 270 Degrees

Horsepower: 147kw/200hp

Actuator Type: Electronic Actuator

Turbo Type: Individual

Universal Fitment: No

Finish:Matte

Condition: Brand New

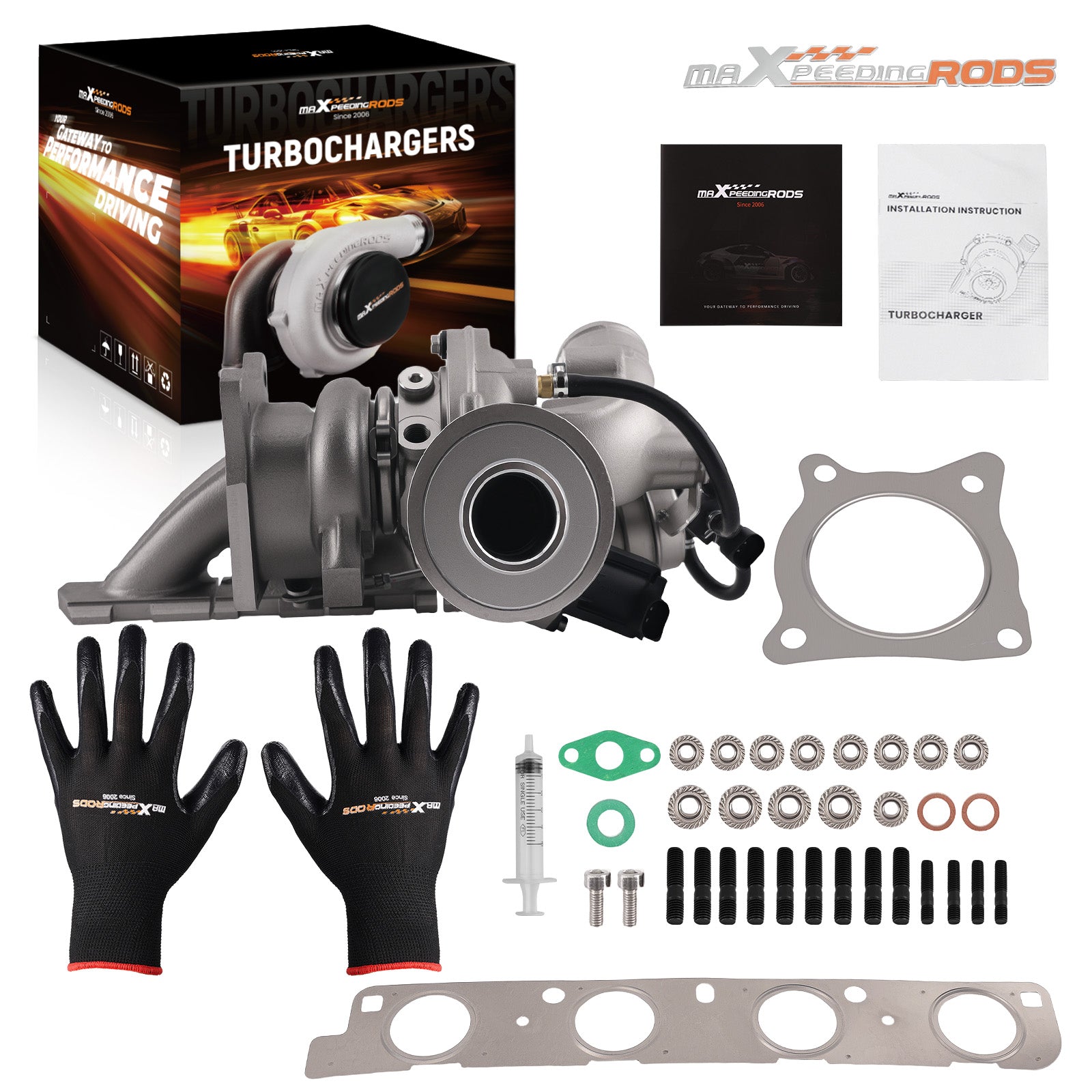

Accessories: You will get exactly as shown in the picture above

package size：48x39x25cm

package weight：13620g Package included1x turbo

2x flange gasket

2x Oil/water Port Gaskets

14x Bolts

13x Nuts

2x Washers

1x Manual

1x Brochure

1x Sticker Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
