For GT25 T25 for GT2860 GT2871 Billet Turbocharger for 1.5L-2.0L 350BHP Ball Bearing

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Racing Dual Ceramic Ball Bearing Billet T25 T28 for GT25 GT28 GT2860 GT2871 Turbocharger

Application:

Perfect for all 1.5L-2.0L engines, for all 4 cylinder

Horse Power: Boost Horse Power up to 350+BHP

Specifications:

Exhaust Inlet Flange:T25 Flange

Exhaust Outlet Flange: 5-Bolt

Turbine Side:

Turbine Trim: 78.9

Turbine Inducer Diameter: 52.8mm

Turbine Exducer Diameter: 46.9mm

Turbine A/R: 0.64

Compressor Side:

Compressor Trim: 42.4

Compressor Inducer Diameter: 45.6 mm

Compressor Exducer Diameter: 70 mm

Compressor A/R: 0.6

Oil Inlet: M12*1.25

Oil Outlet: M14 & 2*M8*1.25

Water: M14*1.5

Cooling Type:Water + Oil cooled

Wastegate:With Wastegate

Bearing Type:Dual Ceramic Ball Bearing

Horse Power: 350HP

Actuator Type: Vacuum

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Condition: 100% Brand New

Accessories: You will get exactly as shown as picture above

Package Size: 26x 24 x 23 cm

Package Weight: 7700g

Features:

*Product Material

1. Turbine housing: Stainless steel turbine housing - temperature resistant up to 1020℃

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

*Product Features

1. Racing turbocharger

2. Excellent high temperature resistance, high efficiency and durability

3. Rich experience in turbo production and own factory

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

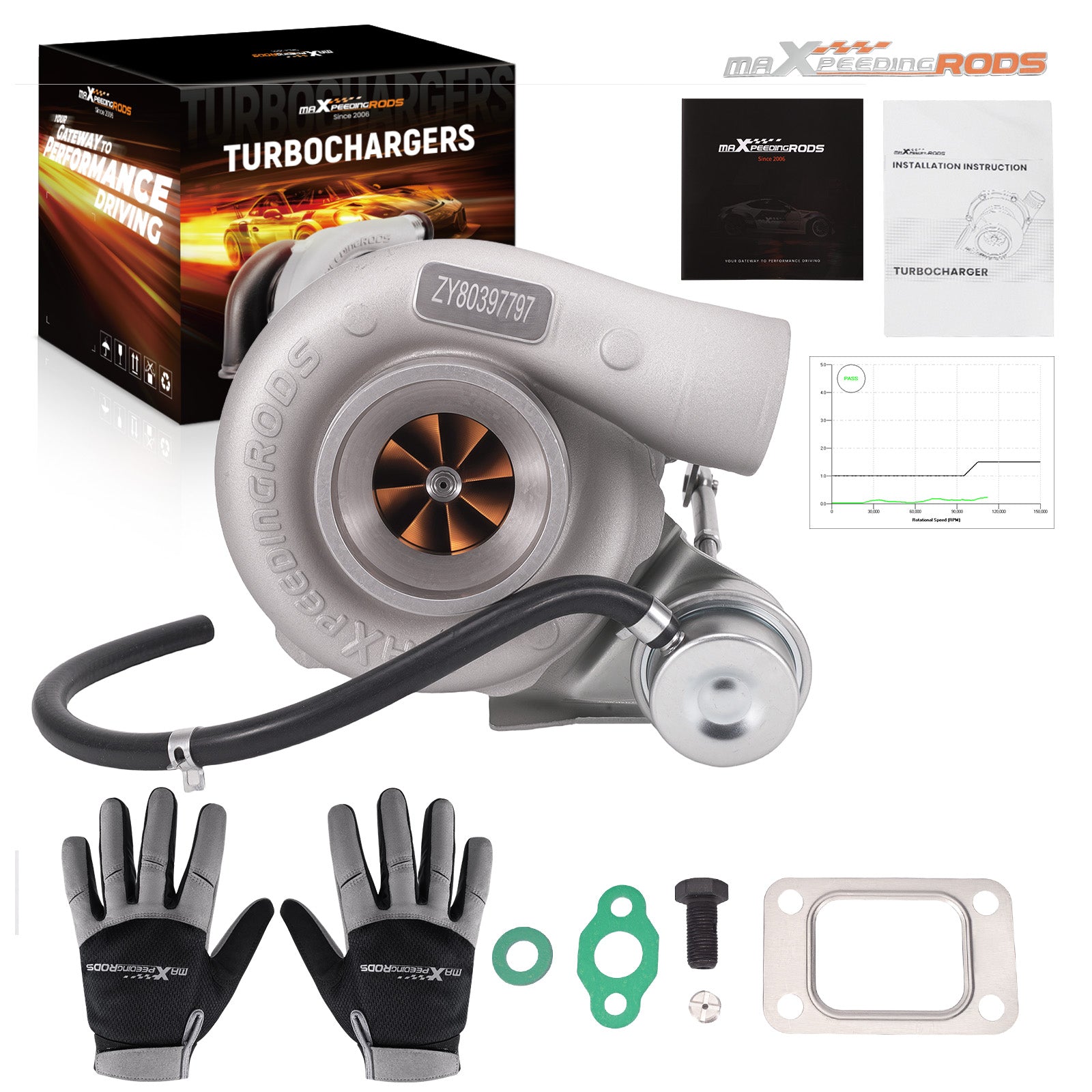

Package included:

1x Turbocharger

1x Flange gasket

2x Oil feed/drain gaskets

1x Bolt

1x Oil restrictor

1x Manual

1x Brochure

1x Sticker

Notice:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
