12 PCS Turbo Kit for D Series for D15Z1 D16Z6 D16Y7 D16Y5 D16Y8 D15B8 D15B7

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for.

Application For 92-95 suitable for Honda Civic VX 1.5L SOHC VTEC-E I-4 92HP D15Z1 For 96-00 suitable for Honda Civic DX/LX 1.6L SOHC I-4 106HP D16Y7 For 96-00 suitable for Honda Civic HX 1.6L SOHC VTEC-E I-4 115HP D16Y5 For 96-00 suitable for Honda Civic EX 1.6L SOHC VTEC I-4 127HP D16Y8 For 92-95 suitable for Honda Civic CX 1.5L SOHC I-4 70HP D15B8 For 92-95 suitable for Honda Civic DX/LX 1.5L SOHC I-4 102HP D15B7 For 92-95 suitable for Honda Civic EX/Si 1.6L SOHC VTEC I-4 125HP D16Z6 For 88-91 suitable for Honda CRX DX 1.5L SOHC I-4 92HP D15B2 For 88-91 suitable for Honda CRX HF 1.5L SOHC I-4 70HP D15B6 For 88-91 suitable for Honda CRX Si 1.6L SOHC I-4 108HP D16A6 For 93-95 suitable for Honda Del Sol S 1.5L SOHC I-4 102HP D15B7 For 93-1997 suitable for Honda Del Sol Si 1.6L SOHC VTEC I-4 125HP D16Z6 For 96-1997 suitable for Honda Del Sol S 1.6L SOHC I-4 106HP D16Y7

Specifications1x T3/T4 Turbocharger:Horse Power: Up to 400 HPCompressor Inlet Diameter: 72mm(2.8")Compressor Outlet Diameter: 53mm（2"）Oil Inlet: 1/8 NPTExhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns Exhaust Outlet (pipe) Flange: 5 bolt Flange Turbine Trim: 74.2 Turbine Inducer Diameter: 64.8 mm Turbine Exducer Diameter: 55.8mm Turbine A/R: 0.63 Compressor Trim: 48.1 Compressor Inducer Diameter: 52.7mm Compressor Exducer Diameter: 76 mm Compressor A/R: 0.5 Bearing: Wet Float Bearing Turbocharger Overall size: 270*220*2201x Exhaust Manifold:Material: Cast Iron Inlet diameter: 38mm1x Intercooler:Intercooler:Inlet size is 2.5 inch.core size: 21*7*2.5.Overall Size 27'' x 7'' x 2.5'' inch.Support up to 350 hp for this small intercooler size - tube and fin style .1x Type-S Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost! Can hold up to 1000+ HP.1x 35/38MM Wastegate: 35/38mm External Waste Gate Kit1x Fuel Regulator: All Accessories are Included for Installation.1x Oil Catch Can1x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbocharger to the oil pan. The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.Material: Stainless Steel Braided

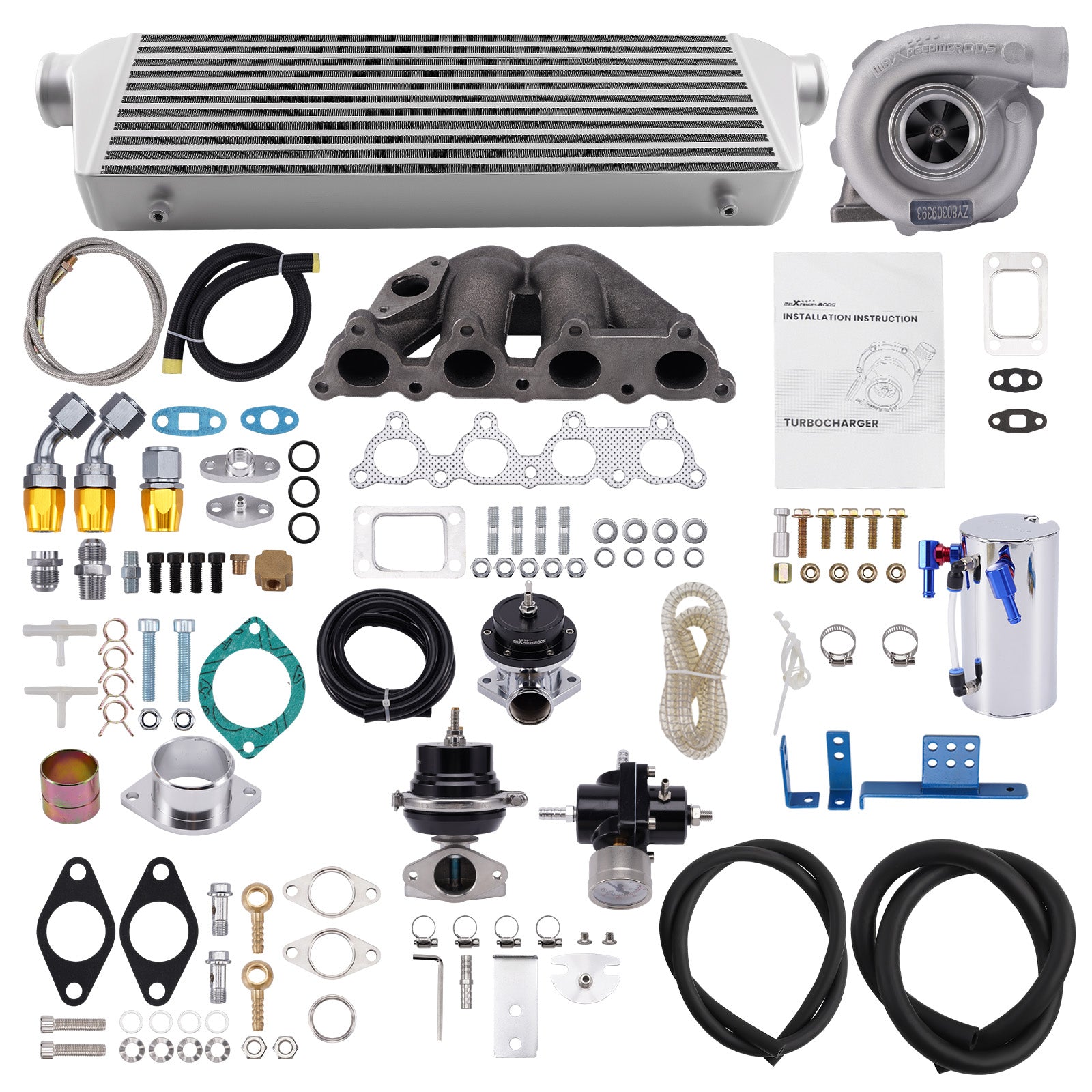

Package included1x T3/T4 Turbocharger1x Manifold1x Turbo Intercooler1x Oil Feed / Return Line1x 35/38mm Wastegate1x Type-S Blow Off Valve1x Oil catch can1x Fuel Regulator

Features1.Turbo charger: * Capable of Boosting Horse Power up to 400+ HP* Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃* Cast aluminium blades with good gas tightness and corrosion resistance.2.Manifold*Direct replacement*Replaces original manifolds that are cracked from thermal expansion and contraction3.intercooler* core size:21*7*2.5 cools down the turbocharged air efficiently* Lightweight aluminum racing intercooler，* Strong TIG welds will support high PSI levels 4. Turbo Oil returen /Feeding line kit* Stainless Steel Braided* Includes complete install kit* It helps circulate oil from the turbo charger to the oil pan.* The kit provides a anodized look* gives a best cooling on your turbo and long lasting life.5.Blow Off Valve Kit* CNC Billet Aluminum Type RS Style Blow off Valve* Including all necessary hardwares.* easily adjustable to prevent both permature boost leakage and compressor surge.* Fast response One For Low And High Boost Pressure.* Quality design will not leak under high boost conditions* Flanges can be installed at user discretion6. 38MM Wastegate* Most reliable wastegates For competition vehicles.* accurate boost control* high quality appearance features Dual port design* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.7. Oil catch can* Made with High Quality Aluminum for Enhanced Strength and Durability8. Fuel Regulator* All Accessories are Included for Installation.

Note* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )Warranty: one year warranty for any manufacturing defect
