1997 - 2012 compatible for HOLDEN Commodore VT-VX-VY-VZ Rear Shock Spring Coilovers Suspension Struts Lowering Kit

This MaXpeedingRods part is suitable for Holden applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles),which offers you a lowered stance, improved performancefor your daily use vehicle.Application Suitable for Holden Commodore Third generation 1997-2007

Suitable for Holden Commodore VT / VT II Sedan Wagon 1997-2000

Suitable for Holden VX Commodore Berlina Calais Sedan Wagon 2000-2002

Suitable for Holden VY Commodore Sedan Wagon 2002-2004

Suitable for Holden VZ Commodore Sedan Wagon 2004-2007 Specifications Top mount: OE top mounts reused

Rear spring rate:13 kg/mm (728 lbs/in)

Adjustable height: Yes lowering 1" to 3"

Shock type：Twin tube

Color: gold body with black spring Package included Package included：

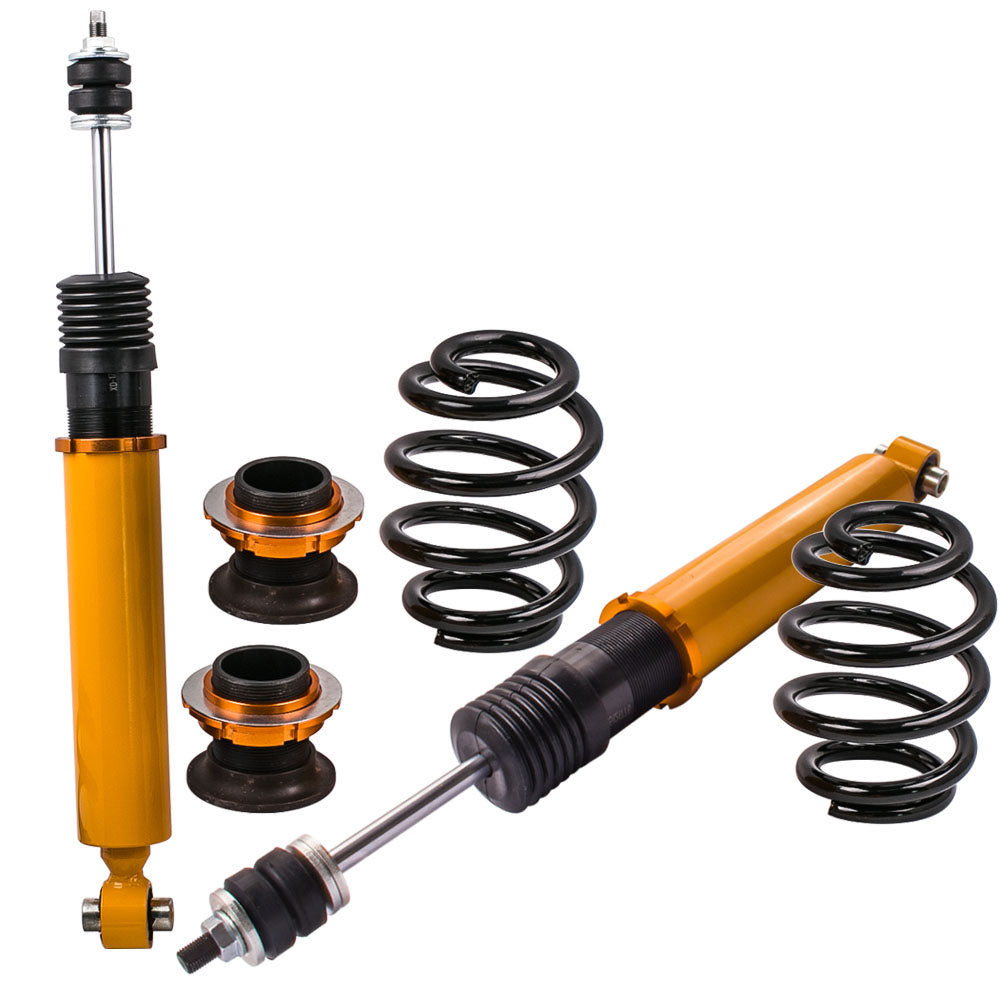

2x Rear coil-overs

(Please note: no top mounts included)Dimension Package dimension :61*31*17cm

Package weight: 14000g Features1.Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

2.Twin-Tube structure allows sufficient stroke within the shock absorber.

3.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

4.Dust boot included to protect damper seal

5.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

6.Most pieces in our coilover systems,including collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

7.Steel shock bodies with special surface treatment to improve the durability.

8.Full rebuildable Please note NOTE:Don't fit for VZ 3.6L,3.8L V6 Model, including SV6, SV8, Executive model

for VT II , VX I series and some VZ, where the drop link connect to the suspension have different style, please check before place an order
