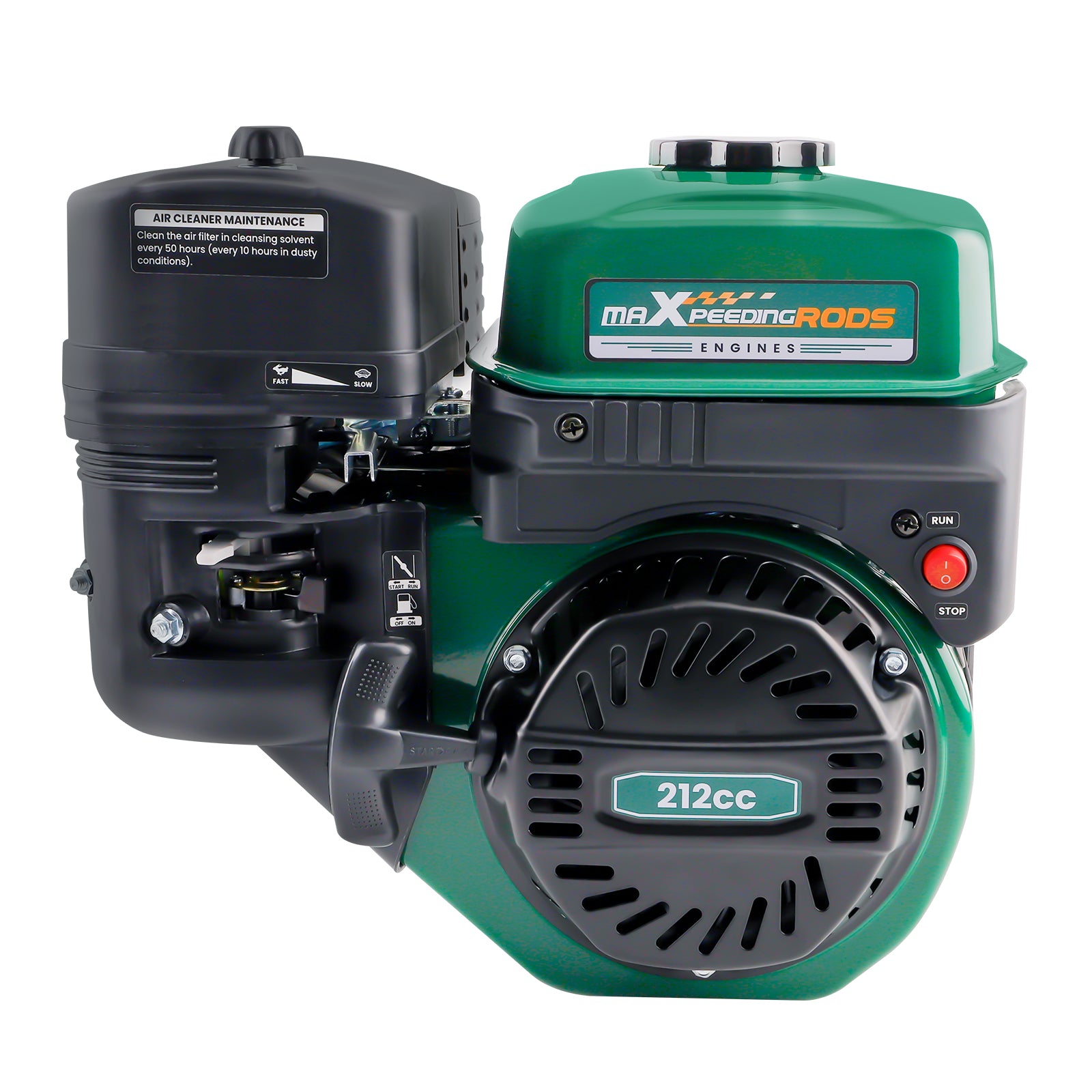

212cc 7HP petrol engine horizontal 4 Stroke OHV gasoline engine 3.6KW

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Specifications Model: MXR212R

Engine Type: Single Cylinder,4 Stroke,Forced Cooling,OHV

Rated Power(KW):3.6

Bore x Stroke(mm): 70x55

Displacement: 212cc

Compression: 8.5 : 1

Starting Method: Recoil

Ignition Method: Transistorized ignition

Horse Power(HP): 7

Fuel Type: Gasoline

Oil Type: SAE 10W-30

Fuel Tank Capacity(L): 3.6

Oil Capacity(L): 0.6

Dimensions L*W*H (mm): 390*325*385

Net Weight (kgs): 15

Gross Weight(kgs): 16.5

Shaft Orientation: Horizontal

Shaft Diameter(mm): 19.05

Shaft Keyway(mm): 4.78

Shaft length(mm): 61.7

Shaft End: 5/16"-24 Drilled and Tapped

CE Certified: Yes

Euro-V Certified: Yes

Warranty: one year Package included Gasoline Engine ( 1 )

Spark Plug Socket Wrench ( 1 )

Oil Funnel ( 1 )

Owner's Manual( 1 )Features Powerful Engine: Our gasoline engine is a 4-stroke 212cc OHV engine, which provides you with strong power and ensures that your work can be completed quickly and easily.

High Fuel Efficiency: OHV design for improved power output and fuel efficiency.

Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.

Easy to Use and Maintain: Ergonomic, easy to grip recoil rope design, simple throttle control, easily accessible spark plug.

Versatility: Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.

Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation.Please note1. Do not pull the pull rope to start the machine without refilling oil. Starting the engine without refilling oil can cause permanent damage to the internal engine components.

2. All engine functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.

3. Installation Manual Is NOT Included; Professional Installation Is Highly Recommended.

4. Don't remove or modify the engine parts, otherwise the warranty will be void. (e.g. air filter, throttle assembly, muffler, etc.)Warning An engine's exhaust contains toxic carbon monoxide, which you cannot see or smell. Breathing carbon monoxide can KILL YOU IN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a engine.
