4340 Connecting Rods Conrod compatible for VW Golf MK4 97-06 Gti 1.8T 24.9mm Tapper ARP2000

This MaXpeedingRods part is suitable for Volkswagen applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application

Compatible for VW Golf MK4 Gti 1.8T 19mm Pin Connecting Rod

Compatible for VW Golf Gti 1.8T 225 2.0 16V 20V

Compatible for Audi A3 A4 A6 S4 TT 1.8 Turbo

Compatible for Audi S3 A3 A4 A6 TT 1.8T

Compatible for VW Passat compatible for Golf Gti 1.8T 225 2.0 16V 20V

Fitment Details:

Compatible for Audi A3 8L1 1996-2003 1.8T

Compatible for Audi A4 B5 1994-2001 1.8T

Compatible for Audi A4 B6 2000-2004 1.8T

Compatible for Audi A6 C5 1997-2005 1.8T

Compatible for VW Golf MK IV 1997-2006 1.8T

Compatible for VW Passat 3B5 1997-2000 Estate 1.8 T

Specifications

Power: 600hp ~ 800PS per set

Torque: 28ft

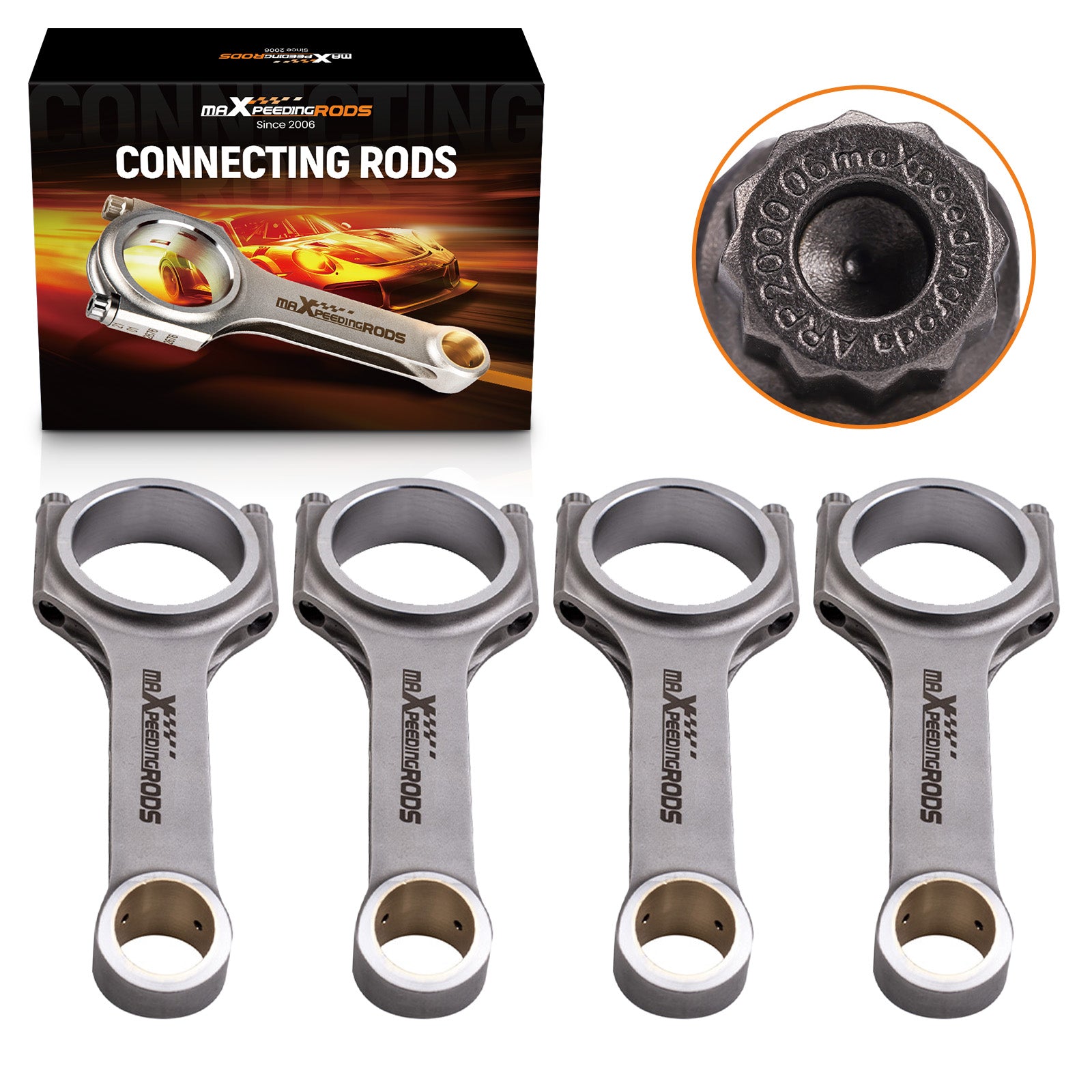

Quantity: 4 Pieces a set as showing in picture

Bolts: Including Genuine ARP 2000 3/8" bolts (Please note Extra cost for upgrading to ARP L19 bolts)

Type: 4340 EN24 H-Beam Connecting Rod

Weight Tolerance: Balanced to +/- 1 gram in set

Warranty: one year warranty.

Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

100% X-rayed, sonic tested and magnafluxed

Multi-stage heat treated

Shot peened to relieve stress

Come with the bronzed bushing suitable for the floating piston pin

Process parameters

The big end bores are honed to a +/-.0004 in tolerance

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

Dimensions

Center to center length: 144mm/5.67"

Big end diameter: 50.6mm/1.992"

Small end diameter: 19mm /0.748"(tapered small end)

Big end width: 24.9mm /0.98 "

Small end width: 19.9mm/0.784"

Please note that Big end width:24.9mm！！

FeaturesTÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；2. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；3. H-Beam design reduces weight without compromising strength；4.Heat-treating Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；5.100% CNC machined,Precision rod cap alignment dowels；6.Bores finished to +/- .01 mm ；7.Balanced to within +/- 1 g per rod ；8. Each rod is magnetic particle tested to ensure free of flaws；9.100% X-rayed, sonic tested；Please note

* Please Carefully check the Size of the Rods in Specific and Description* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))

* For any needs please contact us
