5 Ton Hydraulic Gear, Bearing, Wheel Bearing Puller 2-3 Reversible Jaw

This 5 Ton Hydraulic Gear, Bearing, Wheel Bearing Puller 2-3 Reversible Jaw is intended for precise maintenance, assembly, and repair of vehicles. The set helps to perform work faster, neater, and more controlled than with general tools.

Use this product for the specified application and always compare vehicle model, year of manufacture, engine code, part number, and dimensions with your vehicle before purchase.

Key Benefits

• For controlled assembly and disassembly without unnecessary damage to surrounding parts.
• Handy set for pulling, pressing, installing, or removing parts.
• Always check vehicle, year of manufacture, engine code, part number, and dimensions before ordering.
• Delivered according to product images and specifications.

Application and Specifications

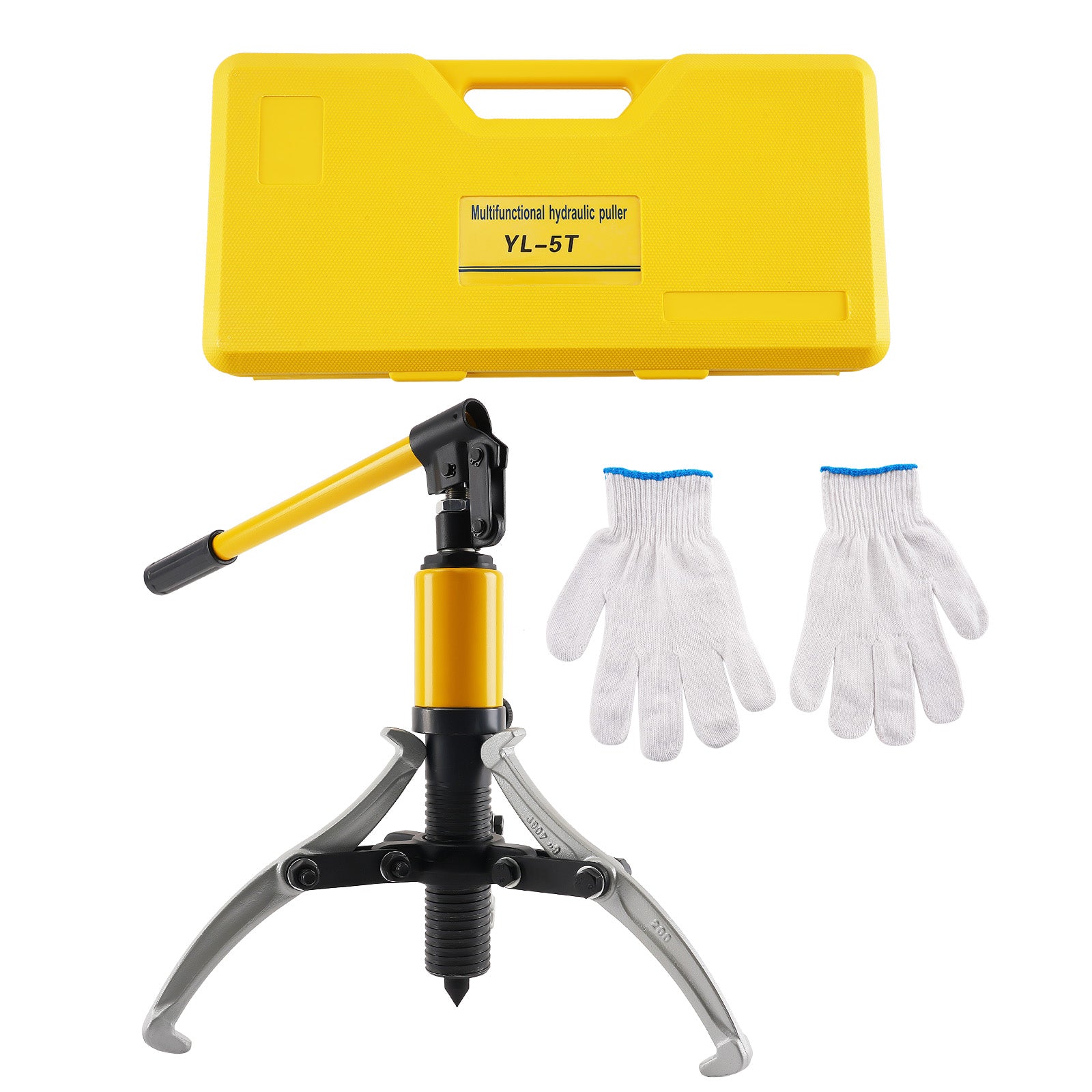

5 Ton Hydraulic Gear, Bearing, Wheel Bearing Puller 2-3 Reversible Jaw This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering. Advantages Based on original MaXpeedingRods product information Suitable for direct replacement or performance upgrade Application: , specifications and compatibility Specifications: Max. Capacity: 5 ton / 11023 lbs Axis Travel: 2" / 50mm Min/Max. Reach(Vertical Operation): 0-5.5" / 0-140mm Min/Max. Spread(Horizontal Operation): 2"-7.8" / 50-200 mm suitable for Ram Stroke(Thimble stroke): 1.96" / 50mm Thread diameter: 1.77" / 45mm Jaws: 2 or 3 Changeable Type: Hydraulic Gear Puller Material:45 Carbon Steel Package included1 x Hydraulic Puller 1 x Handle 1 x 2/3 Leg Puller Yoke 3 x Jaws 6 x Link Plates & Screw Sets Features: 1. 5T Pulling Capacity: The 5T hydraulic claw puller delivers efficient disassembly of large machine components with its 8-inch (228.6 mm) maximum pull size. Ideal for machine repair, bearing and gear extraction, pulley removal, railway and ship maintenance, mining equipment servicing, and other heavy-duty applications. 2. Leak-Proof Design: Featuring an integrally cast oil cylinder and oil cover to prevent cracking and leakage. The thickened pump body with clearly visible surface threads provides high torque resistance and a 2-inch (50 mm) maximum stroke, enabling closer positioning to targets for shorter, more efficient pulling operations. 3. Horizontal/Vertical Operation: Supports both horizontal and vertical pulling orie

Package Contents

You will receive the tool kit as depicted and described with this product.

Please note

• Professional use or assembly by an experienced mechanic is recommended.
• Always check compatibility before ordering.
• If in doubt about fitment or application, you can contact us in advance.

Article number/SKU: TTK-5TON-19
