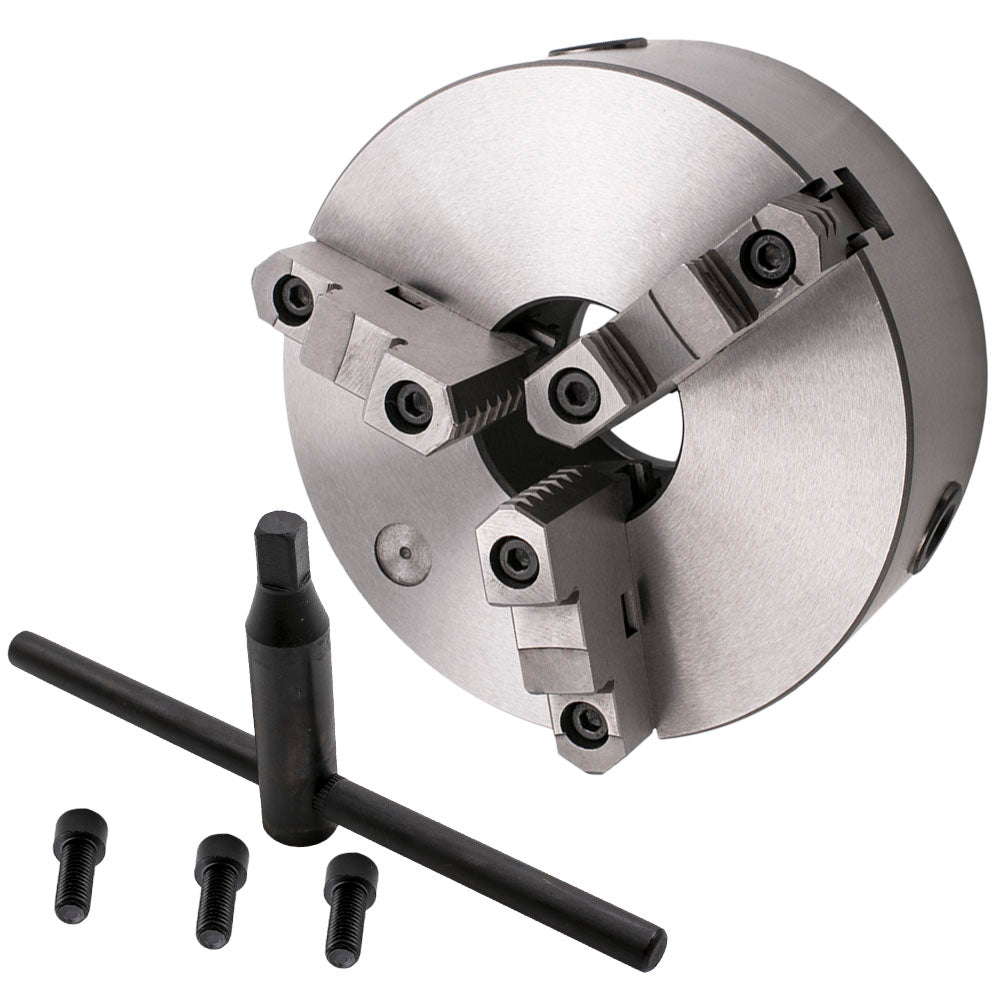

8 inch 3 Jaw Self Centering Lathe Chuck Milling K11-200A Hardened Steel
8 inch 3 Jaw Self Centering Lathe Chuck Milling K11-200A Hardened Steel
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
8" 3 Jaw Self Centering Lathe Chuck Milling K11-200A Hardened Steel
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Benefits
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility
Applicationfor General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..Specifications- Material:Hardened Steel
Model: K11-200A
Jaw: 3 Jaw
High precision: ≤0.05mm
Application: for CNC Drilling Milling Machine
Color: Silver
Lathe Chuck:
Size: 200 mm (7.9")
Outside Diameter: 200 mm (7.9")
Bolt Circle Diameter: 180 mm (7.08")
Center Thru Hole Diameter: 65 mm (2.559")
Chuck Body Thickness: 75 mm (2.95")
Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35")
Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87")
External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87")
Mounting Thread: 3-M10
Accuracy: 0.002"
Included:
1 x Three Jaw Self Centering Chuck
3 x Bolts Circle
1 x Handle Please note Please feel free to contact us for whatever we can help.Warranty: one year warranty for any manufacturing defect
