Rear Air Helper Spring Suspension Kit compatible for Toyota Tacoma 2WD 4WD 05-23

This MaXpeedingRods part is suitable for Toyota applications where listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications and Compatibility

Application Suitable for Toyota Tacoma 4WD 2005 – 2023

Suitable for Toyota Tacoma 2WD 2005 – 2023

Suitable for Toyota Tacoma Pre-Runner 2WD 2005 – 2023

NOTE:

2WD Axles are below the leaf Specifications Condition: Brand New

Minimum PSI: 5 PSI

Maximum PSI: 100PSI

Internal Jounce Bumper included: No

Placement on Vehicle: Rear left and right

Load capacity：Up to 5000 LBS

Design height: 145mm

Stroke:135mm

Max. Extended: 210mm

Min. Compressed: 75mm

Minimum height of whole kit: 208 mm

Maximum height of whole kit: 343 mm

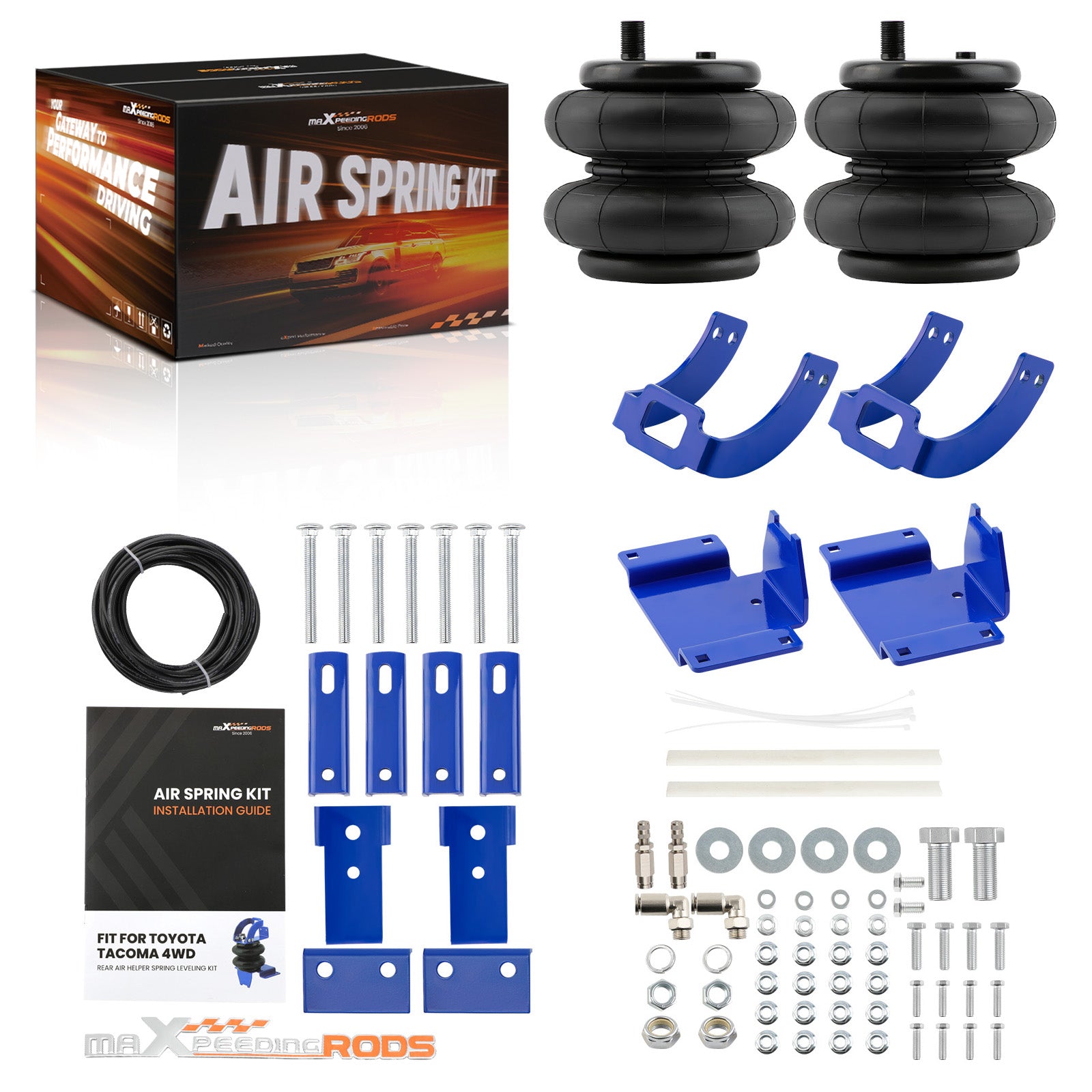

The package includes（as the picture shows）:

2x Heavy Duty Double Bellow Air Ride Suspension bags

6x Upper and lower mounting brackets

1x Air line 5m

Includes All Brackets & Hardware Needed to Install

Mounting Hardware Features1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5、 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
