Rear Air Suspension Spring Bag Kit compatible for Toyota Hilux 4WD 2015-2022 Heavy Duty

This MaXpeedingRods part is suitable for Toyota applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Toyota Hilux 4WD 2015–2021 GGN125 GUN126

Please note:

Only fits suitable for Toyota Hilux 4WD new models that began in 2015.

Also fits vehicle with 2 inch suspension lift.Specifications Condition: Brand New

Placement on Vehicle: Rear left and right

Recommended working range：5psi - 160psi

Charge: 5000 LB / 2268 KG

Air spring

Design height：152mm

Stroke:110mm

Max. Extended: 175mm

Min. Compressed:65mm

Minimum height of whole kit: 206 mm

Maximum height of whole kit: 316 mm

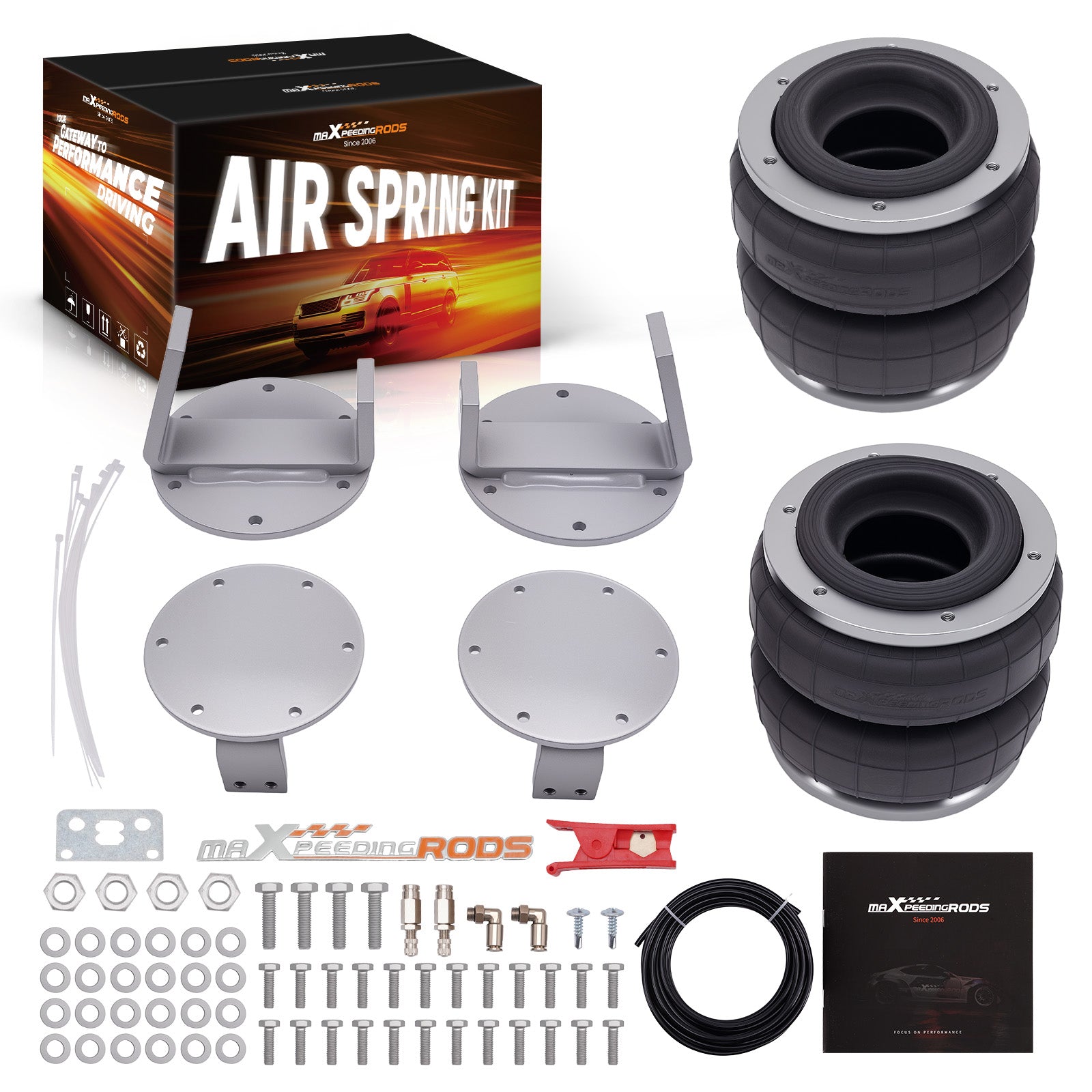

Package includes（as the picture shows）:

2x Heavy Duty Double Bellow Air Ride Suspension bags

4x Upper and lower mounting brackets

1x Air line 5m

Mounting Hardware Features1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
