Rear Coilovers compatible for BMW E36 3 Series 92-98 Saloon Coupe 316 323 325 328

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application

Suitable for BMW 3 E36 Saloon09/1990-12/1998

316i 318i 320i 323i 325i 328i 318is 325is 318tds 325tds 325td M3

Suitable for BMW 3 E36 Coupe09/1991-04/1999

318is 316i 320i 323i 323is 325i 328i 328is M3

Suitable for BMW 3 Convertible E36 03/1993-04/1999

318i 320i 323i 325i 328i M3

Suitable for BMW 3 E36 Touring /Estate08/1994-12/1999

316i 318i 320i 323i 328i 318tds 325tds

Specifications

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable:24 levels of rebound damping force

Spring rate Rear: 7 kg/mm (392 lbs/in)

Rear spring inner diameter: 63-66 mm

Spring length Rear: 183 mm

Rear top mounts: pillow ball

Shock type: Twin tube

Spring Preload: 7-10 mm

Warranty: one year

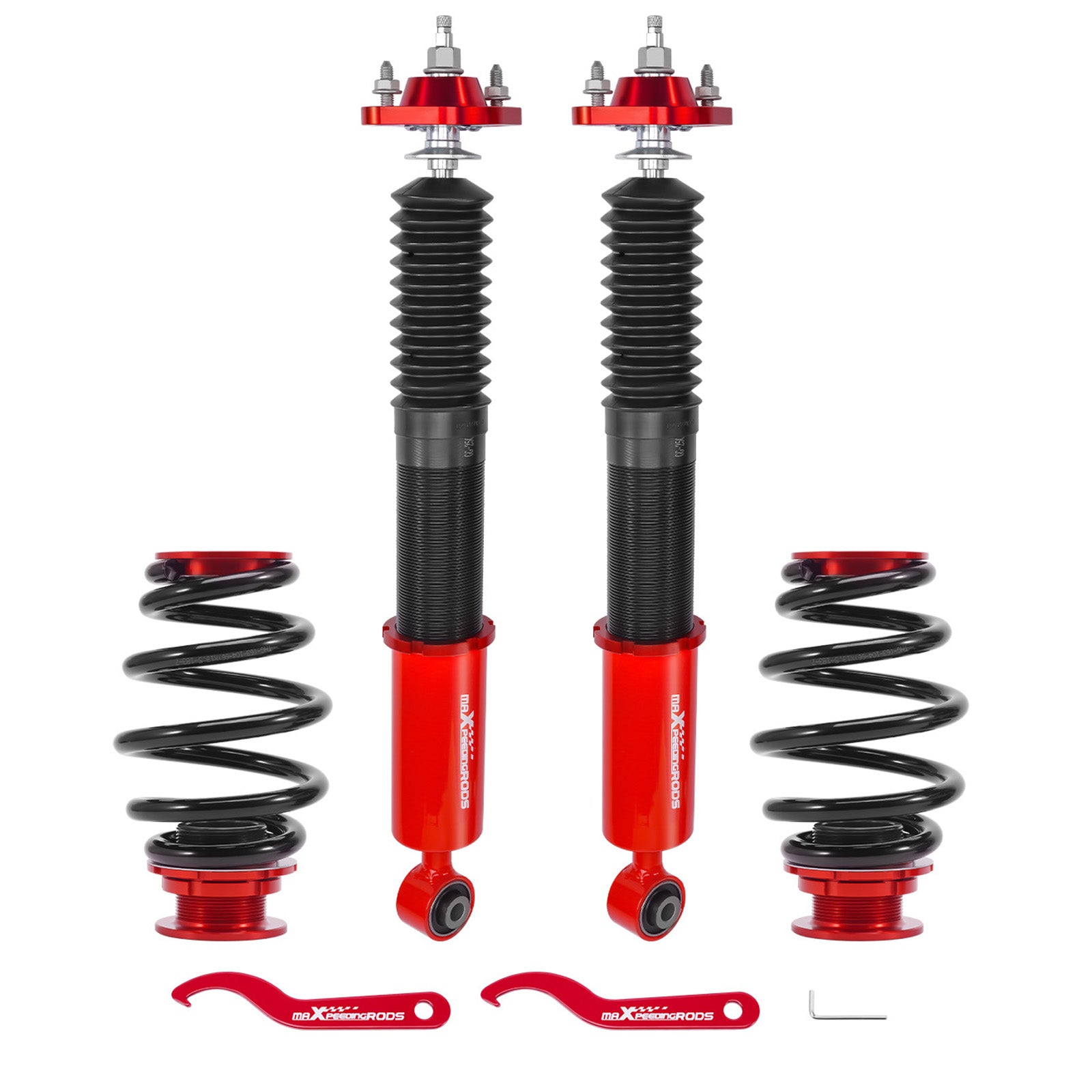

Package included

2 x Rear coilovers

2 x C spanners

Features

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Please note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
