Rear Coilovers Kit compatible for VW Golf Mk5 1.4-2.0+FSI/TSI/TFSI GTI/TDI/SDI

This MaXpeedingRods part is suitable for Volkswagen applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

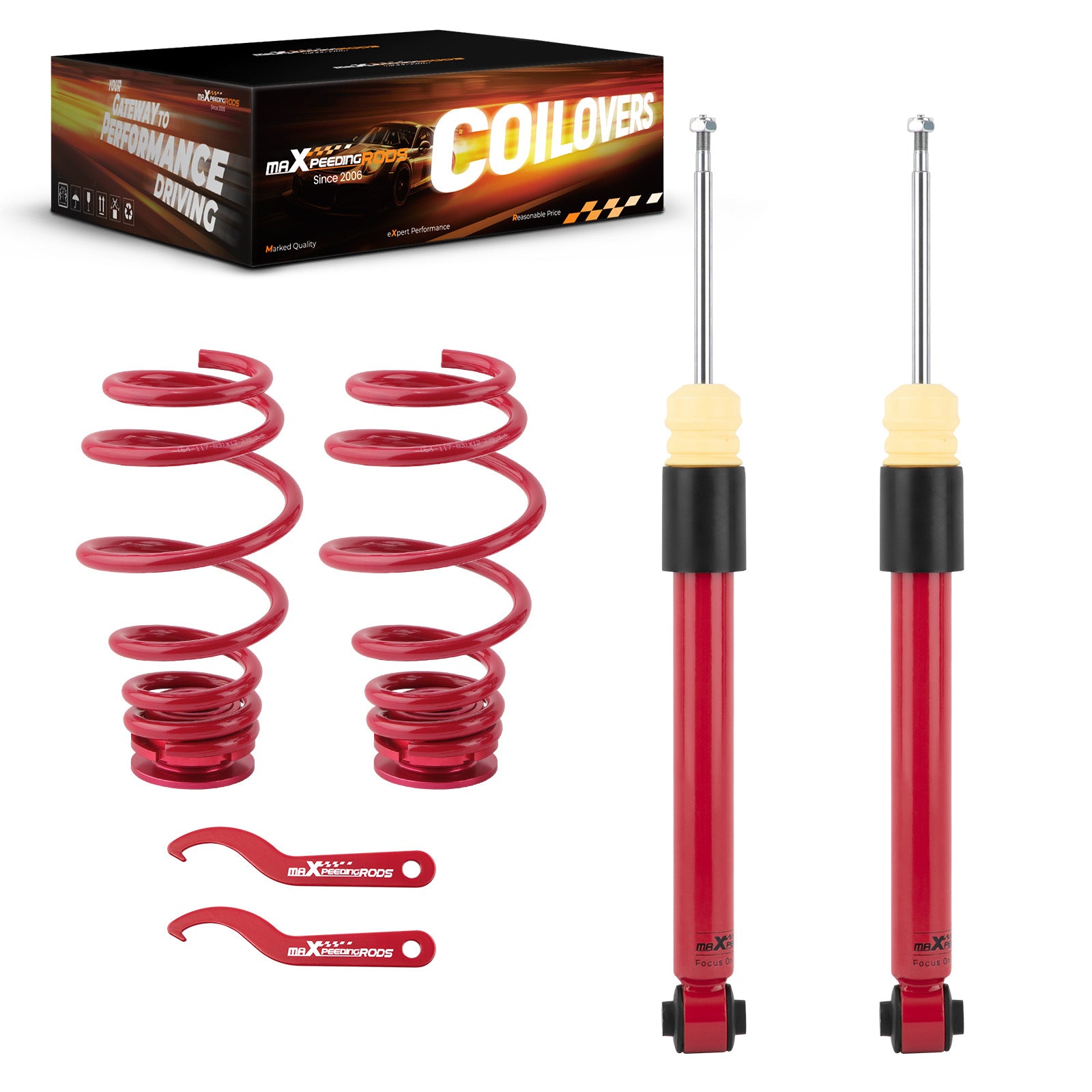

Introductionma Xpeedingrods' Ma Xpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.Application Suitable for VW Golf MK5 A5 Typ 1K 2003-2008suitable for VW Jetta MK5 A5, Typ 1K5 2006-2011suitable for VW Golf MK6 A6 Typ 5K 2008-2012suitable for VW B6 Passat 2006-2010suitable for VW EOS 2007-2014suitable for VW CC 2009-2014suitable for VW Tiguan 2009-2014suitable for VW Beetle 2012-2014suitable for Audi A3 8P (Suitable for FWD) 2006-2014suitable for Audi TT 8J (Suitable for FWD) 2006-2014 Specifications Top mounts: OE top mounts required Damping adjustable: Not available Camber adjustable: Not available Height adjustable: Yes, lowering 0-25mm depending on the vehicle models Spring Rate Rear: 3.5 kg/mm(196 lbs/in)Spring length Rear: 239 mm Spring Preload advised: 7-10 mm Color: Silver body with red spring Package included Package included：2x Rear coil-overs2x C spanners Dimension Package size : 73*26*19 cm Weight: 9100 g Features1.0-25mm(depends on vehicle models) lower height adjustable2. Dust boot, solid rubber bump stops3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets4. Simple install,Easy to adjust.5. Use the vehicle's original upper mounts (not included in our product kit).Please note1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen. 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
