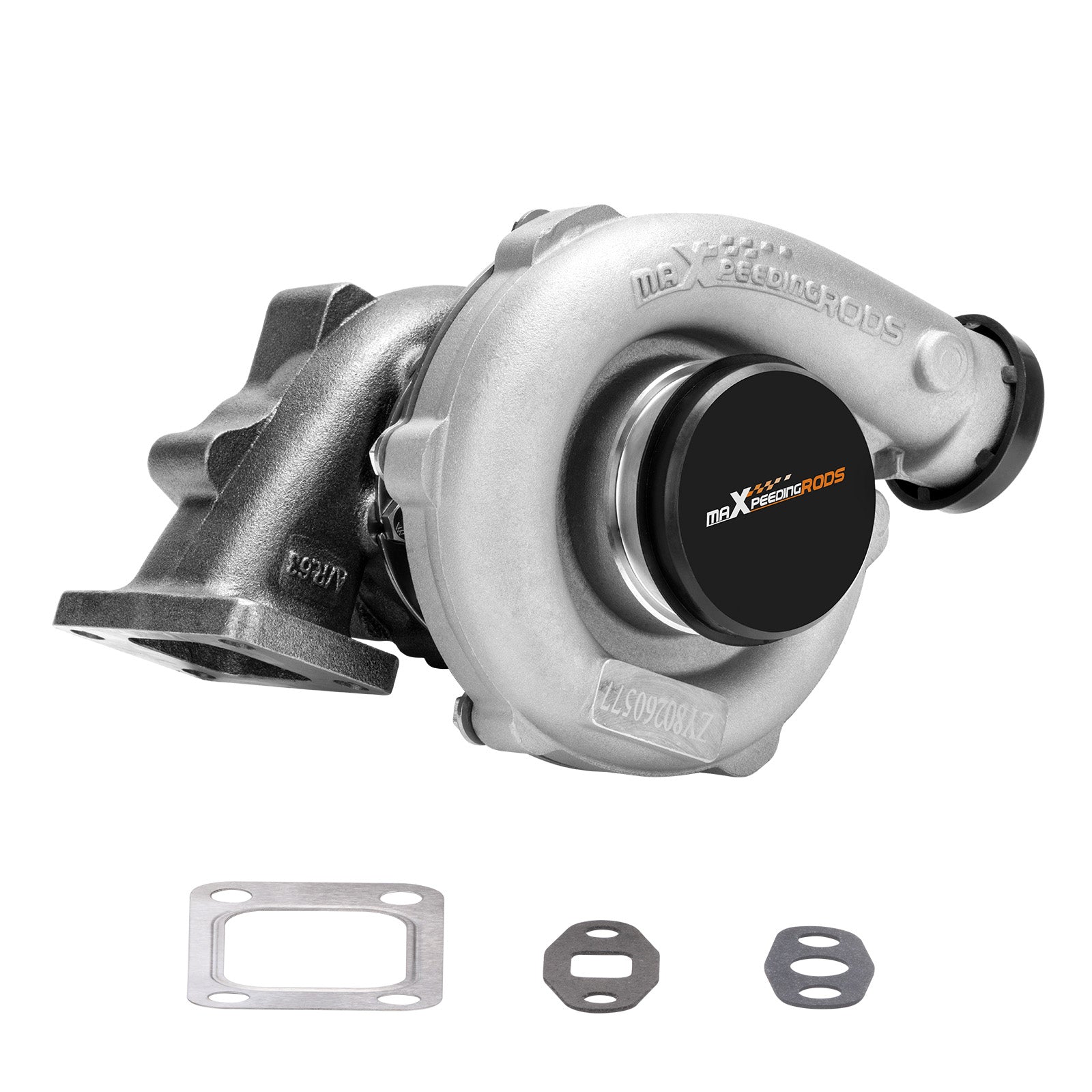

Billet Compressor Wheel Universal turbocharger T3T4 T04E T3 .63 AR Turbine for 1.5L-2.5L eng 400HP

This Billet Compressor Wheel Universal turbocharger T3T4 T04E T3 .63 AR Turbine for 1.5L-2.5L eng 400HP is intended for precise maintenance, assembly, and repair of vehicles. The kit helps to perform tasks faster, cleaner, and more controlled than with general tools.

Use this product for the specified application and always compare vehicle model, year of manufacture, engine code, part number, and dimensions with your vehicle before purchasing.

Key benefits

• For controlled assembly and disassembly without unnecessary damage to surrounding parts.
• Handy set for pulling, pressing, installing, or removing parts.
• Always check vehicle, year of manufacture, engine code, part number, and dimensions before ordering.
• Supplied according to the product images and specifications.

Application and specifications

Billet Compressor Wheel Universal turbo turbocharger T3T4 T04E T3 .63 AR Turbine for 1.5L-2.5L eng 400HP This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering. Advantages Based on original MaXpeedingRods product information Suitable for direct replacement or performance upgrade Application: , specifications and compatibility Application: Universal Application: .for 1.5L to 2.5L any 4/6 cylinder engine Specifications: Turbine:Turbine Intake Flange: T3 T4 4 bolt Flange Patterns Turbine Exhaust Flange: Standard T3 5 bolt flange pattern Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust inlet：44.5mm/81mm Compressor:Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet：45mm(inside diameter)/53mm(outer diameter)Compressor inlet：68 mm(inside diameter)/72mm(outer diameter)Oil Inlet: M12*1.25 Oil Outlet:2*M8*1.25 Wastegate：Without Wastegate Cooling Type: Oil Cooled bearing Type: Floating bearing Trust bearing: 270 degree Hosepower:Up to 400+HPTurbo Type: Individual Universal Fitment:Yes Finish:Matte Condition: 100% Brand New Accessories: You will get exactly as shown as picture above Packaging Size:27x 25x 23 cm Packaging Weight: 7220g Packaging included1x Turbocharger1x Flange gasket2x Oil port gaskets1x Manual1x Brochure1x Sticker Features: *Product Material1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃2. Steel Turbine Wheel：K419 alloy - high oxi

Package contents

You will receive the tool set as shown and described with this product.

Please note

• Professional use or assembly by an experienced mechanic is recommended.
• Always check compatibility before ordering.
• If in doubt about fitment or application, you can contact us in advance.

Article number/SKU: GGT04E63-JD-Z3
