Billet Turbocharger compatible for Peugeot Ford Citroen Mazda 1.6 HDI 109 HP 753420 Turbo

This MaXpeedingRods part is suitable for Ford, Mazda, Peugeot, Citroen applications as listed. Always check part number, year, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for CITROEN C2 1.6L D DV6TED4 05

Suitable for CITROEN C3 HDI 1.6L D DV6TED4 06

Suitable for CITROEN C4 HDI 1.6L D DV6TED4 04

Suitable for CITROEN C5 HDI 1.6L D DV6TED4 03

Suitable for CITROEN XSARA Picasso 1.6L D DV6TED4 03

Suitable for CITROEN Picasso 1.6 HDi FAP 1.6L D DV6TED4 04

Suitable for CITROEN Berlingo 1.6 HDi FAP 1.6L D DV6TED4 05

Suitable for PEUGEOT 1007 109HP 1.6DHi Fap DV6TED18 05

Suitable for PEUGEOT 207 Hdi1.6L D DV6TED4 04

Suitable for PEUGEOT 206 Hdi1.6L D DV6TED4 04

Suitable for PEUGEOT 407 Hdi1.6L D DV6TED4 04

Suitable for PEUGEOT 307 Hdi1.6L D DV6TED4 04

Suitable for PEUGEOT 308 Hdi1.6L D DV6TED4 07

Suitable for PEUGEOT 3008 TDi 110 1.6L D DV6TED4 09

Suitable for PEUGEOT 5008 HDI 110 1.6L D DV6TED4 10

Suitable for Peugeot Partner 1.6 HDi 110 FAP 05

Suitable for FORD C MAX1.6L D DV6TED4 04

Suitable for FORD C-MAXTDCi 1.6L D DV6TED4 03

Suitable for FORD Focus TDCi 1.6L D DV6TED4 04

Suitable for FORD Mondeo III 1.6 TDCi03

Suitable for Volvo C301.6D 1.6L D4164T 06

Suitable for VOLVO S401.6L D DV6TED4 05-09

Suitable for VOLVO V50 1.6L D DV6TED4 07-09

Suitable for MAZDA 3 1.6L D DV6TED4 04

For MINICOOPER D 1.6L D(R55 R56) W16 07 -OE-/part number740821

740821-1，740821-0001，740821-5001S，

740821-2，740821-0002，740821-5002S，

750030，

750030-1，750030-0001，750030-5001S，

750030-2，750030-0002，750030-5002S

753420，

753420-2，753420-0002，753420-5002S，

753420-3，753420-0003，753420-5003S，

753420-4，753420-0004，753420-5004S，

753420-5，753420-0005，753420-5005S，

753420-6，753420-0006，753420-5006S，

7534202, 7534203, 7534204, 7534205,

0375J3，0375J6，0375J7，0375J8

1373584，1479055，1355027，1254337，1231096，1789074，1465162，1340133，1441253，1319614，8603746，36002480，36000722，31259243，8603489

Y60113700, Y60113700A, Y60113700B，Y60113700C, Y60113700D，Y60113700E，Y60113700F， Y60113700G

7804903，11657804903,

3M5Q6K682AK，3M5Q6K682AE, 3M5Q6K682AF ，3M5Q6K682AH，

9656125880，9657248680，9660641380，9650764480，9663199280，9654128780，9651839880 Specifications Turbo Model：For GT1544V GT15V GT15

Engine Code：W16,D4164T, DV6TED4

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 109HP

Turbo Type:Individual/VNT

Actuator Type: Vacuum actuator

Universal Fitment:No

Finish:No

Staat: 100% Brand New

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size:36x24x23cm

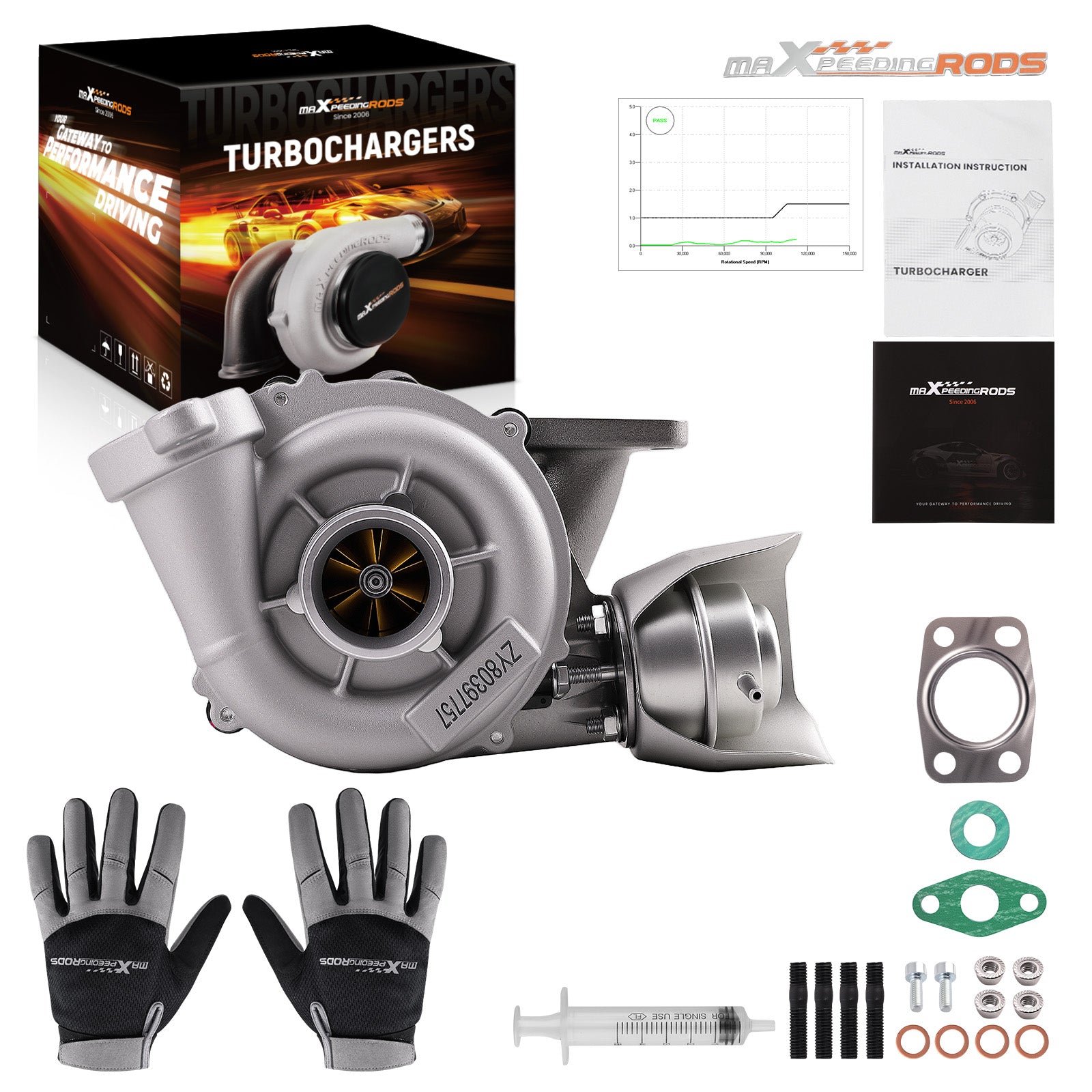

Package Weight: 5400g Package included1x Turbocharger

2x Oil port gaskets

1x Flange gasket

1x Manual

1x Brochure

1x Sticker Features*Product Material

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistanceupto 1000℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product Performance

1. OEM fitment turbo with upgraded material and performance

2. Excellent high temperature resistance，high efficiency and durability

3. Rich experience in turbo production and own factory

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
