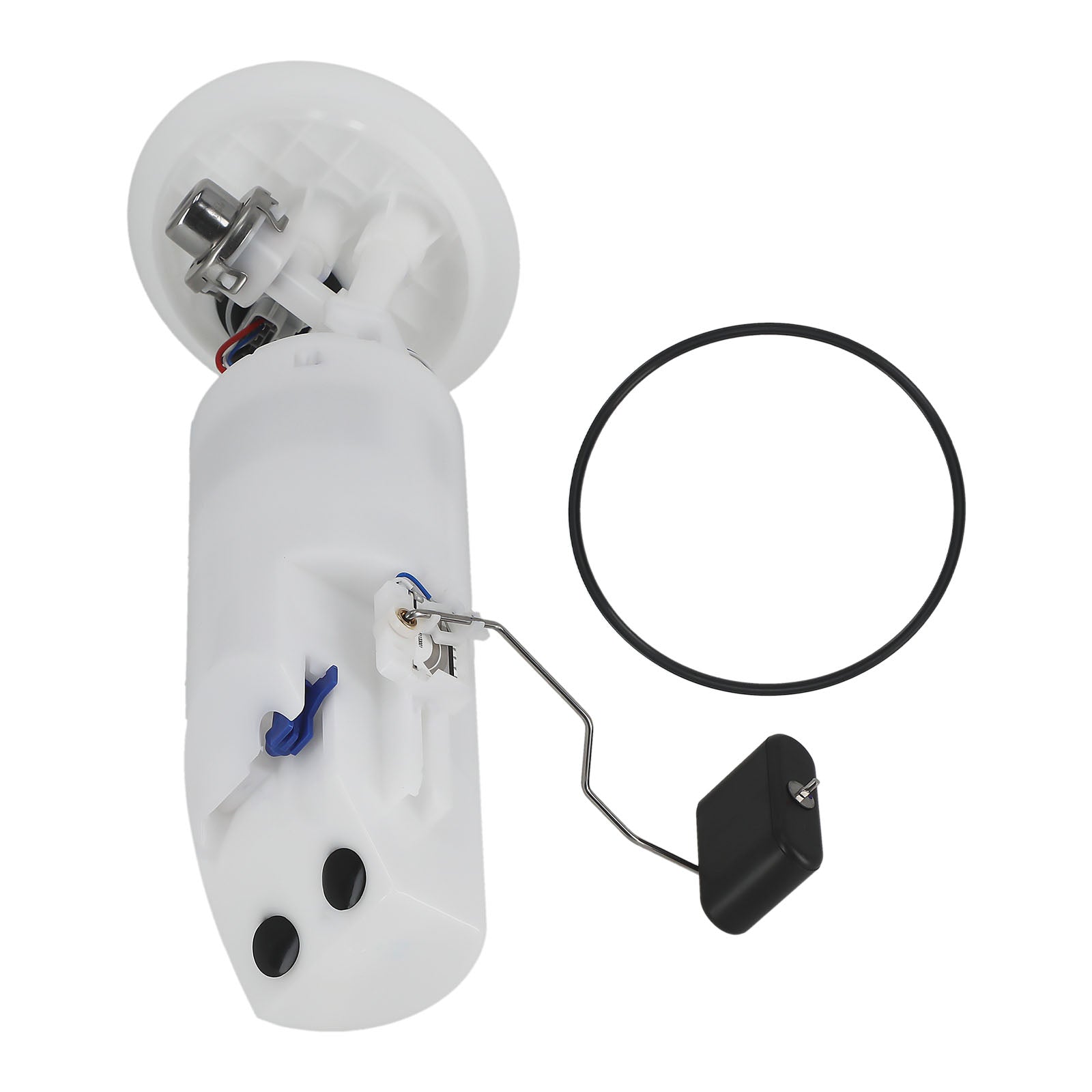

Fuel Pump Assembly compatible for Dodge Caravan compatible for Plymouth Voyager 3.0L 3.3L 3.8L 4897425AB

This MaXpeedingRods part is compatible with Dodge applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Compatible for Chrysler Grand Voyager V6 3.0L 2000

compatible for Chrysler Grand Voyager V6 3.3L 2000

compatible for Chrysler Town & Country V6 3.3L 1996-2000

compatible for Chrysler Town & Country V6 3.8L 1996-2000

compatible for Chrysler Voyager L4 2.4L 2000

compatible for Chrysler Voyager V6 3.0L 2000

compatible for Chrysler Voyager V6 3.3L 2000

compatible for Dodge Caravan L4 2.4L 1996-2000

compatible for Dodge Caravan V6 3.0L 1996-2000

compatible for Dodge Caravan V6 3.3L 1996-2000

compatible for Dodge Caravan V6 3.8L 1996-1999

compatible for Dodge Grand Caravan L4 2.4L 1996-1997

compatible for Dodge Grand Caravan V6 3.0L 1996-2000

compatible for Dodge Grand Caravan V6 3.3L 1996-2000

compatible for Dodge Grand Caravan V6 3.8L 1996-2000

compatible for Plymouth Grand Caravan L4 2.4L 1996-1997

compatible for Plymouth Grand Caravan V6 3.0L 1996-2000

compatible for Plymouth Grand Caravan V6 3.3L 1996-2000

compatible for Plymouth Grand Caravan V6 3.8L 1996-1999

compatible for Plymouth Voyager L4 2.4L 1996-2000

compatible for Plymouth Voyager V6 3.0L 1996-2000

compatible for Plymouth Voyager V6 3.3L 1996-2000

compatible for Plymouth Voyager V6 3.8L 1997-1999OE-/Part numberE7094M, SP6143M, FG0215, P74706M,FE0285 ,4746250, 4897424AA, 4897424AB, 4897424AC, 4897424AD,4897425AB,9533003,0489742AC,67642,TU117,MU143,EFP117MSpecificaties Drive Type: Electrical

Fuel Type: Gasoline

Voltage(V): 12

Flow Rate(Gallons/Hour): ≥30.38

Pressure(MPa): 0.3

Weight(kg): 1.30

Inlet Type: SAE J2044 2009

Inlet Quantity: 1

Outlet Type: SAE J2044 2009

Outlet Quantity: 1

Material: Plastic

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

Seal Ring Included : Yes

Certifications:

CE

IATF16949

IOS14001 Package included1X Fuel Pump Module Assembly(as shown in the pictures)Features1.High-precision automotive grade fuel tank pressure sensor

(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)

2.Dual-channel long-life level sensor

(Dual-channel dual-contact design, more stable and longer life.

HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level

display is more accurate.)

3.Low level design

(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)

4.High dust holding layer filter

(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.

Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)

5.Platform R&D

(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)Note1.Attached installation manual.

2.Professional Installation Is Highly Recommended.

3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
