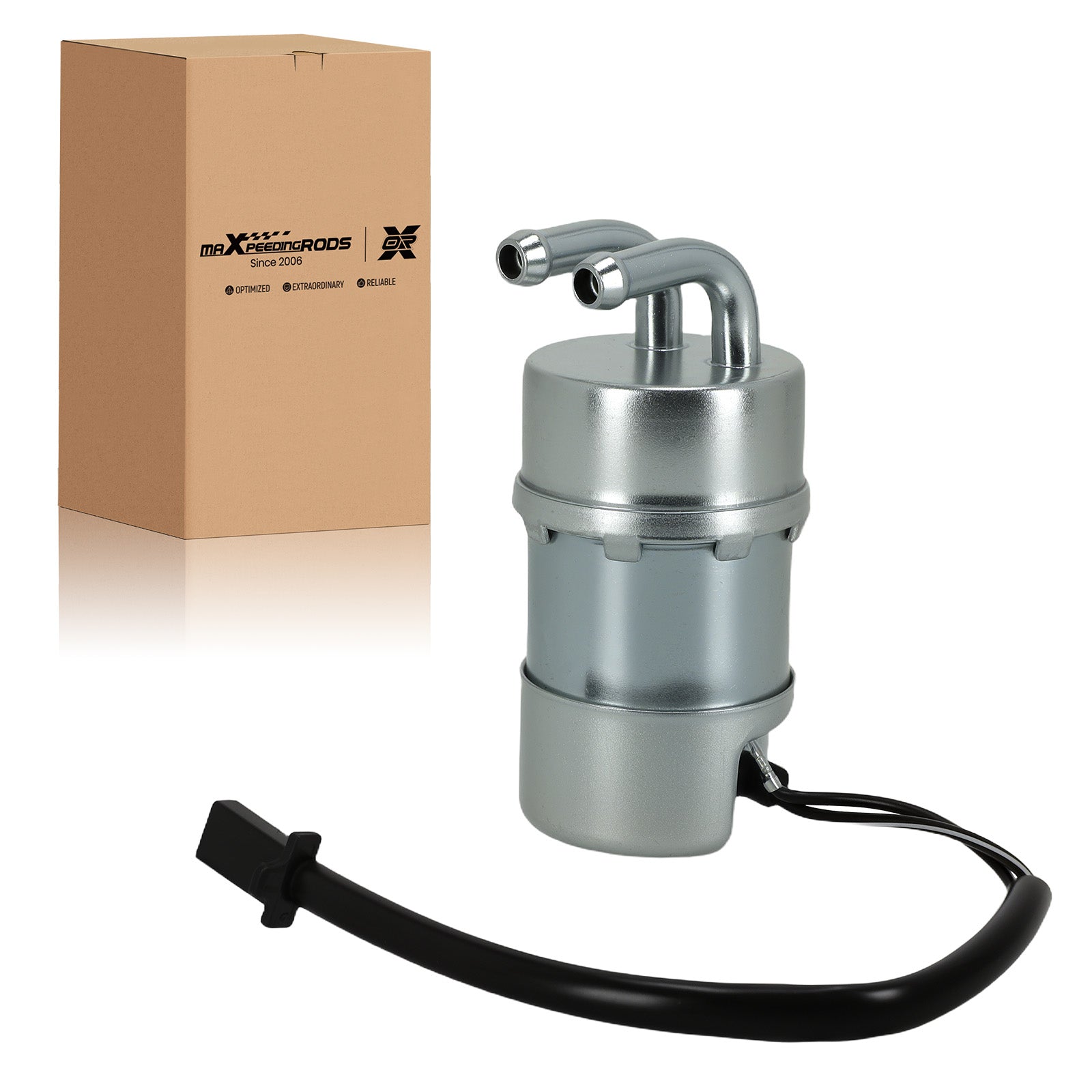

Fuel Pump Assembly compatible for Suzuki VS700 VS750 VS1400 Intruder 1985-2004 15100-38A00

This MaXpeedingRods part is suitable for Suzuki applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Suzuki VS700 GL/GLE Intruder 700 1986-1987

suitable for Suzuki VS750 Intruder 750 1985-1991 Model f/g

suitable for Suzuki VS1400 GLP Intruder 1400 1987-2004

suitable for Suzuki VS1400 Boulevard S83 2005-2009OE- / part number15100-38A00,15100-38A01 Specifications Condition: New Type: Fuel Pump Drive Type: Electrical Fuel Type: Petrol Voltage(V): 12 Flow Rate(Gallons/Hour): 13.2 G/HPressure: 10-34 k Pa Weight(kg): 0.422 Inlet Type: Iron joint Inlet Quantity: 1 Inlet Size：8mm Outlet Type: Iron joint Outlet Quantity: 1 Outlet Size：8mm Material: iron Housing Material: iron Internal Or External Strainer: External Package included1X Fuel Pump (as shown in the pictures)Features Armature：

1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less

spark, more wear-resistant, strong oxidation resistance, compatible with a variety of

fuels, work efficiency increased by 10%, life expectancy increased by 50%.

2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low

hysteresis loss.

3. Insulation paper potect armature under more than 1000V breakdown voltage.

4. Temperature resistance of enameled wire: 220℃.

5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.

Pump Housing：

1. The selection of high-quality carbon seamless steel pipe, effectively

Eliminate electromagnetic eddy current, reduce magnetic loss.

2. Bilateral chamfering, one-time full section of the inner hole processing, concen Tricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core

Vibration, reduce operating noise, increase product life.

3. Environmental plating, strong corrosion resistance.

Turbine Impeller：

1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,

effective suppression of vibration.

2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.

3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.Let op1.Professional Installation Is Highly Recommended.

2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.

3.Due to the different display and different light, the picture may not reflect the actual color of the item.
