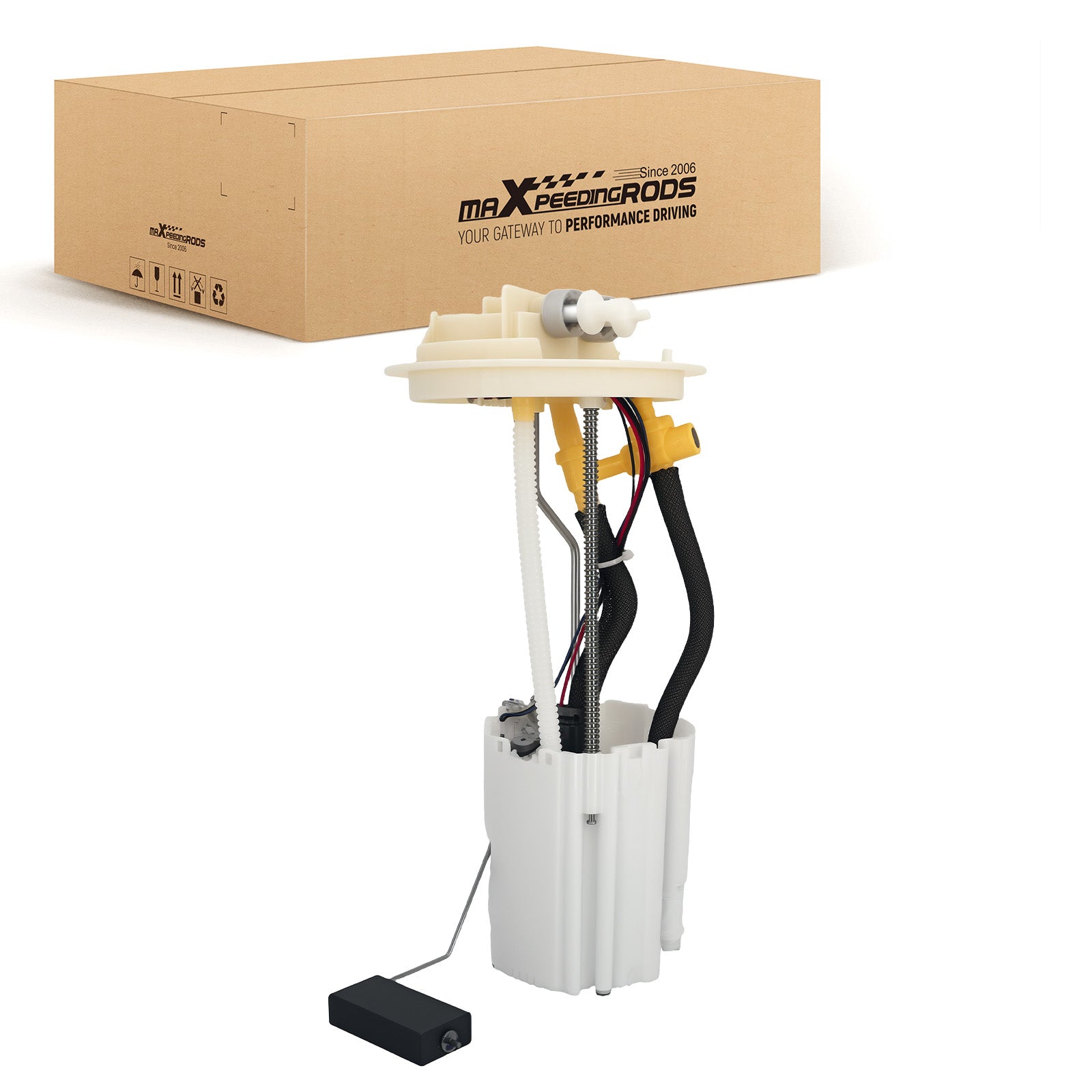

Fuel Pump In Tank compatible for Ford Transit V363 2.2 TDCi 2014-2018 BK319H307BB

This MaXpeedingRods part is suitable for Ford applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Ford Transit V363 Bus 2.2 TDCi RWD2014-2018 (Please note: Diesel version)

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi 4x42014-2018 (Please note: Diesel version)

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2 TDCi RWD2014-2018 (Please note: Diesel version)

Suitable for Ford Transit V363 Van (FCD, FDD) 2.2 TDCi 4x4 2013-2018(Please note: Diesel version)

Suitable for Ford Transit V363 Van (FCD, FDD) 2.2 TDCi RWD2014-2018(Please note: Diesel version)OE-/part number1823097,2048136,BK319H307BB,BK319H307BC,BK31-9H307-BB,BK31-9H307-BCSpecifications Condition: Brand New Drive Type: Electrical Fuel Type: Petrol Voltage(V): 12 Flow Rate(Gallons/Hour): ≥50.19G/HPressure(MPa): 0 Weight(kg): 0.6-0.65 Inlet Type: SAE J2044 2009 Inlet Quantity: 1 Inlet Size：Φ7.89 Outlet Type: SAE J2044 2009 Outlet Quantity: 1 Outlet Size：Φ7.89 Material: Plastic Housing Material: Plastic Fuel Sending Unit Included: Yes Fuel Pressure Sensor Included: No Fuel Level Sensor Included: Yes Float Included: Yes Fuel Reservoir Included: Yes Fuel Strainer Included: Yes Seal Ring Included : No Internal Or External Strainer: Internal Placement on Vehicle: Rear (Fuel Tank)Features1.High-precision automotive grade fuel tank pressure sensor

(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)

2.Dual-channel long-life level sensor

(Dual-channel dual-contact design, more stable and longer life.

HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level

display is more accurate.)

3.Low level design

(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)

4.High dust holding layer filter

(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.

Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)

5.Platform R&D

(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)Please note1.Professional Installation Is Highly Recommended.

2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.

3.Due to the different display and different light, the picture may not reflect the actual color of the item.
