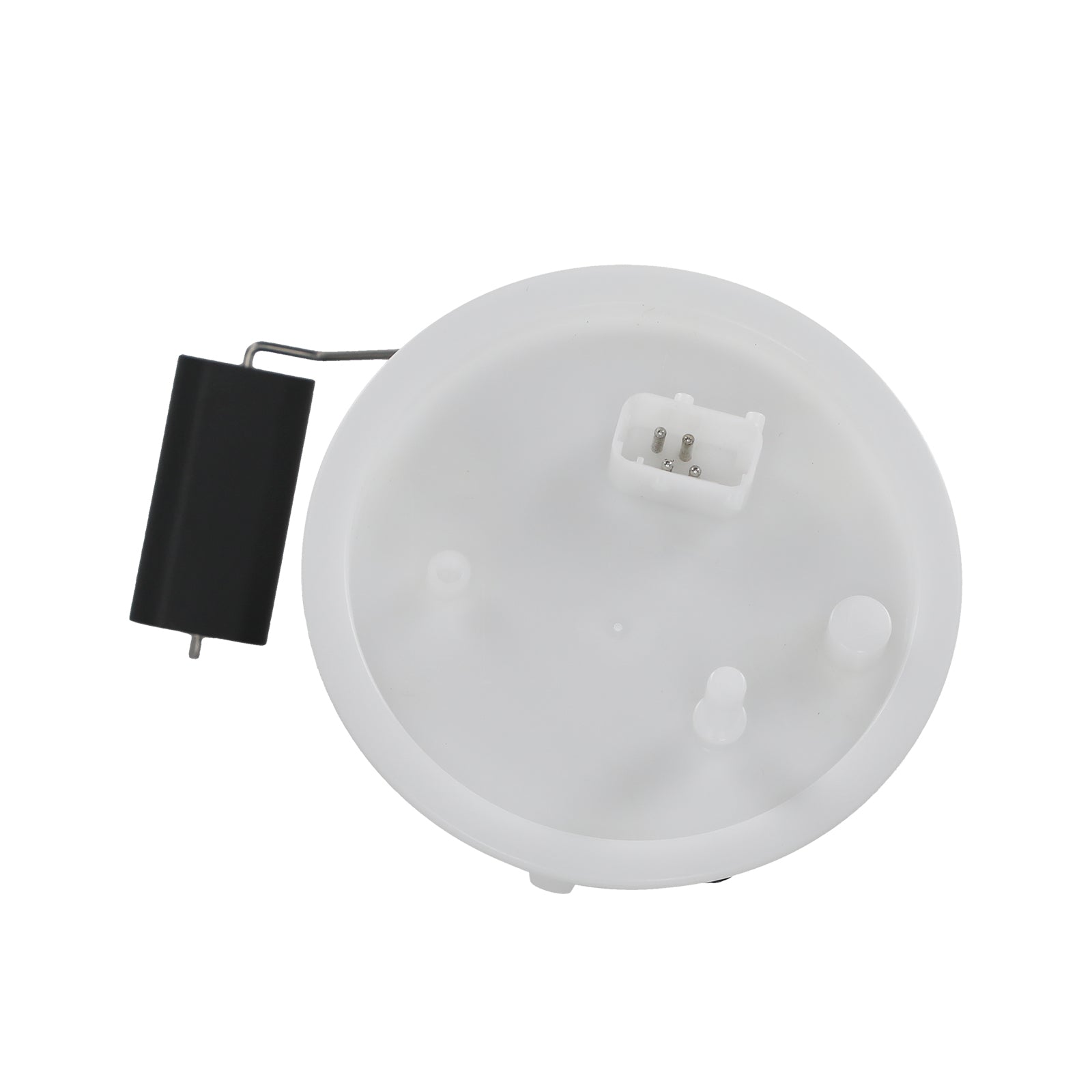

Fuel Pump In Tank compatible for Mini Cooper R55 R56 R57 R59 1.6L 2006-2013 16112752287

This MaXpeedingRods part is suitable for Mini applications as specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Mini CooperR55 1.6L 2007-2013

suitable for Mini Cooper SR551.6L 2007-2010

suitable for Mini One R55 1.6L 2010-2013

suitable for Mini Cooper R56 1.6L 2006-2013

suitable for Mini Cooper S R56 1.6L 2006-2010

suitable for Mini One R56 1.6L 2010-2013

suitable for Mini Cooper R57 1.6L 2007-2013

suitable for Mini One R57 1.6L 2009-2013

suitable for Mini Cooper R59 1.6L 2012-2013OE-/Part number16112754806,16112752287,2503295,2752287,2754806,77004 Specifications Condition: Brand New Drive Type: Electrical Fuel Type: Petrol Voltage(V): 12 Flow Rate(Gallons/Hour): ≥26.4G/HPressure(MPa): 0.3 Weight(kg): 0.8406 Inlet Type: Quick connect Inlet Quantity: 1 Inlet Size：7.9mm Material: POM+Steel Housing Material: Plastic Fuel Sending Unit Included: Yes Fuel Pressure Sensor Included: No Fuel Level Sensor Included: Yes Float Included: Yes Fuel Reservoir Included: Yes Fuel Strainer Included: Yes Seal Ring Included: No Internal Or External Strainer: Internal Placement on Vehicle: Rear (Fuel Tank)Package included1X Fuel Pump Module Assembly(as shown in the pictures)Features1.Raw Material for key parts from same supplier as OE

2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times

3.Pressure Valve Durability Test ≥ 500,000 times

4.High temperature durability testing≥ 600 hours(60℃)

5.100% test Please note Common problems and solutions of fuel pump assembly:

1) Gasoline pump aging: Over time, the internal components of the gasoline pump will gradually wear out, leading to a decrease in pump performance and ultimately resulting in the inability to start.

Solution: Replace the gasoline pump with a new one, ensure to choose a gasoline pump that matches the original vehicle model, and follow the correct installation steps.

2) Circuit malfunction: The operation of the gasoline pump relies on a stable voltage supply. If there are short circuits, open circuits, or poor contacts in the circuit, it may cause the gasoline pump to malfunction.

Solution: Check if the circuit connections are secure and reliable, repair or replace damaged circuit components.

3) Fuel quality issues: Using inferior fuel or fuel containing impurities may cause gasoline pump blockage or increased wear.

Solution: Use high-quality fuel, choose regular gas stations to purchase fuel, and avoid using inferior fuel or fuel containing impurities.

4) Oil level sensor malfunction: The sliding resistor of the oil level sensor is contaminated and corroded, resulting in poor contact between the resistor and the sliding elastic contact.

Solution: Replace the gasoline sensor component.

5) Gas blockage in the gasoline system pipeline: When the fuel tank is running low on fuel or when the temperature is too high in summer, the oil vapor in the pipeline forms a gas blockage. Solution: Wait for the car to cool down for a period of time before restarting, or go to a flat road for a test drive or refueling check.

6) Insufficient pressure: If it is difficult to start the car in the morning or after parking for 1 hour, it may require multiple ignitions to start, which may be due to insufficient pressure in the gasoline pump.

Solution: Check the pressure regulating valve of the gasoline pump. If the pressure is released, the gasoline pump needs to be replaced.

7) Motor malfunction: The most common issue is when the car is parked properly, but it fails to start when driving again. This may be caused by the carbon brush of the gasoline pump motor getting stuck.

Solution: Try tapping and shaking the fuel tank with a wooden stick while starting the car. If successful, it is recommended to check and replace the gasoline pump in a timely manner to avoid breaking down on the road.
