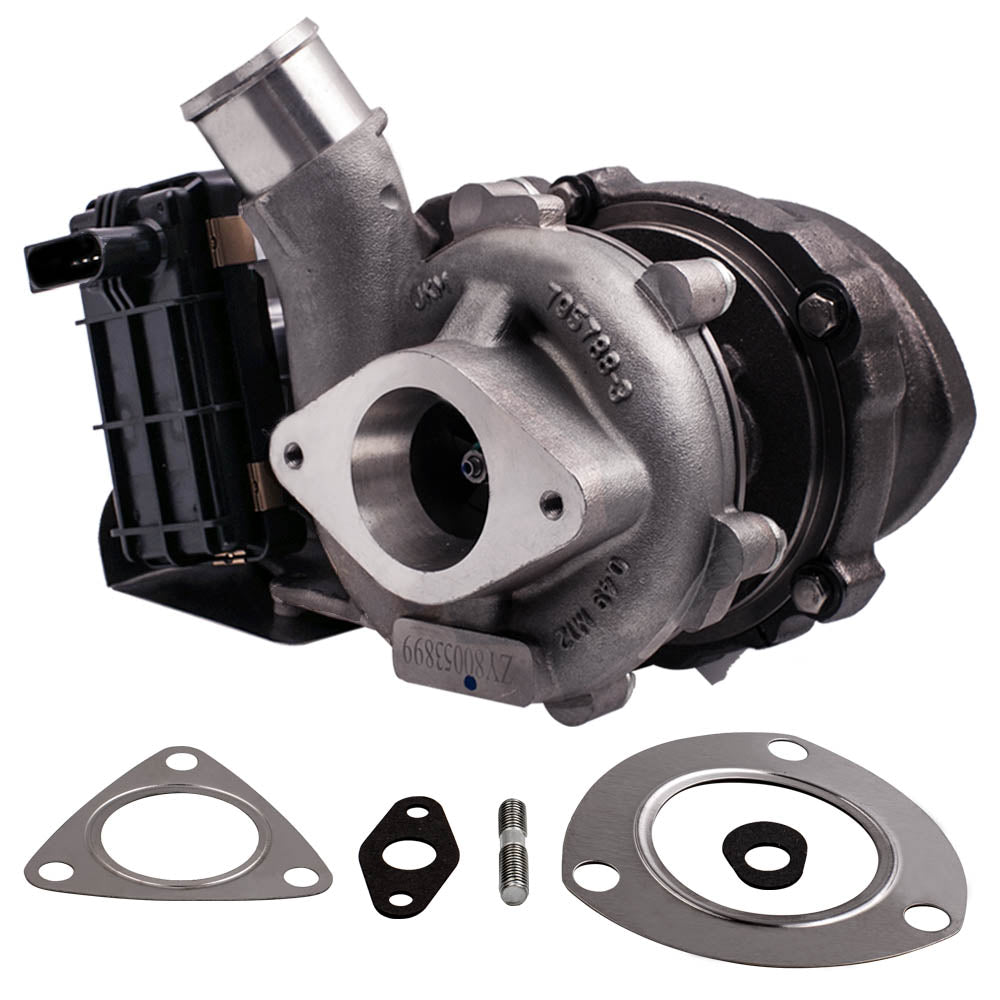

Compatible for Ford Transit compatible for Ranger 2.2 TDCI w/ Electric Actuator for GT1749V Turbo Turbocharger

This MaXpeedingRods part is suitable for Ford applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications and Compatibility

Application Suitable for Ford Commercial Transit 153HP/114KW 2.2TDCI DURATORQ CVRA CVRB CVRC Euro 5 RWD 2011-2014

Suitable for Ford Ranger 153HP/114KW 2.2TDCI DURATORQ CVRA CVRB CVRC Euro 5 RWD 2011-2014OE-/Part Number787556-5017S, 787556-17, 787556-0017, 7875560017,787556-9017S,

787556-5016S, 787556-16, 787556-0016, 7875560016,787556-9016S,

787556-5022S, 787556-22, 787556-0022, 7875560022,

854800-0001, 854800-1, 854800,

BK3Q6K682PC, BK3Q-6K682-PC,

BK3Q6K682PB, BK3Q-6K682-PB,

BK3Q6K682CB, BK3Q-6K682-CB,

BK3Q6K682CC, BK3Q-6K682-CC,

BK3Q6K682HA, BK3Q-6K682-HA,

1717628, 1719695, 1760759 Specifications Turbo Model: GTB1749VK

Actuator Type: Electronic Actuator

Cooling Type: Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust Bearings: 270 Degrees

Horse Power: 114KW / 153HP

Condition: Brand New

Accessories: You will get exactly as shown in the picture above

Package Size: 26* 25 * 23cm

Package Weight: 7840 g Features*Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

*Product Certification

TÜV and ISO 9001 Certification

*All necessary gaskets included for ease of installation

Please note: This Turbo is for the rear wheel drive cars (RWD).Please note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!Technology Advantage1. 100% balancing Test by TURBOTECHNICSVSR3

This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing

The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3.Advanced Actuator Tester/Programmer

Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.
