Compatible for Honda Civic 1988-2000 Height And Damper Adjustable Coilover Suspension Kit Lowering Kit

This MaXpeedingRods part is suitable for Honda applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.Application Compatible For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)Compatible For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only(ED8\ED9\EE6\EE8\EF6\EF7\EF8)Compatible For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)Compatible For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only Compatible For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)Compatible For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only Compatible For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only Note: for some vehicles, you will need sleeves and washers that are already included in our package.Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.Specifications Front and Rear top mount: rubber

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 5 kg/mm (280 lbs/in)

Spring length Front: 180mm

Spring length Rear: 180mm

Adjustable height: lowering 1-3inch

Coilover overall length Front: 365mm-410mm

Coilover overall length Rear: 435mm-480m

Shock type: Twin tube

Spring Preload: 7-10 mm

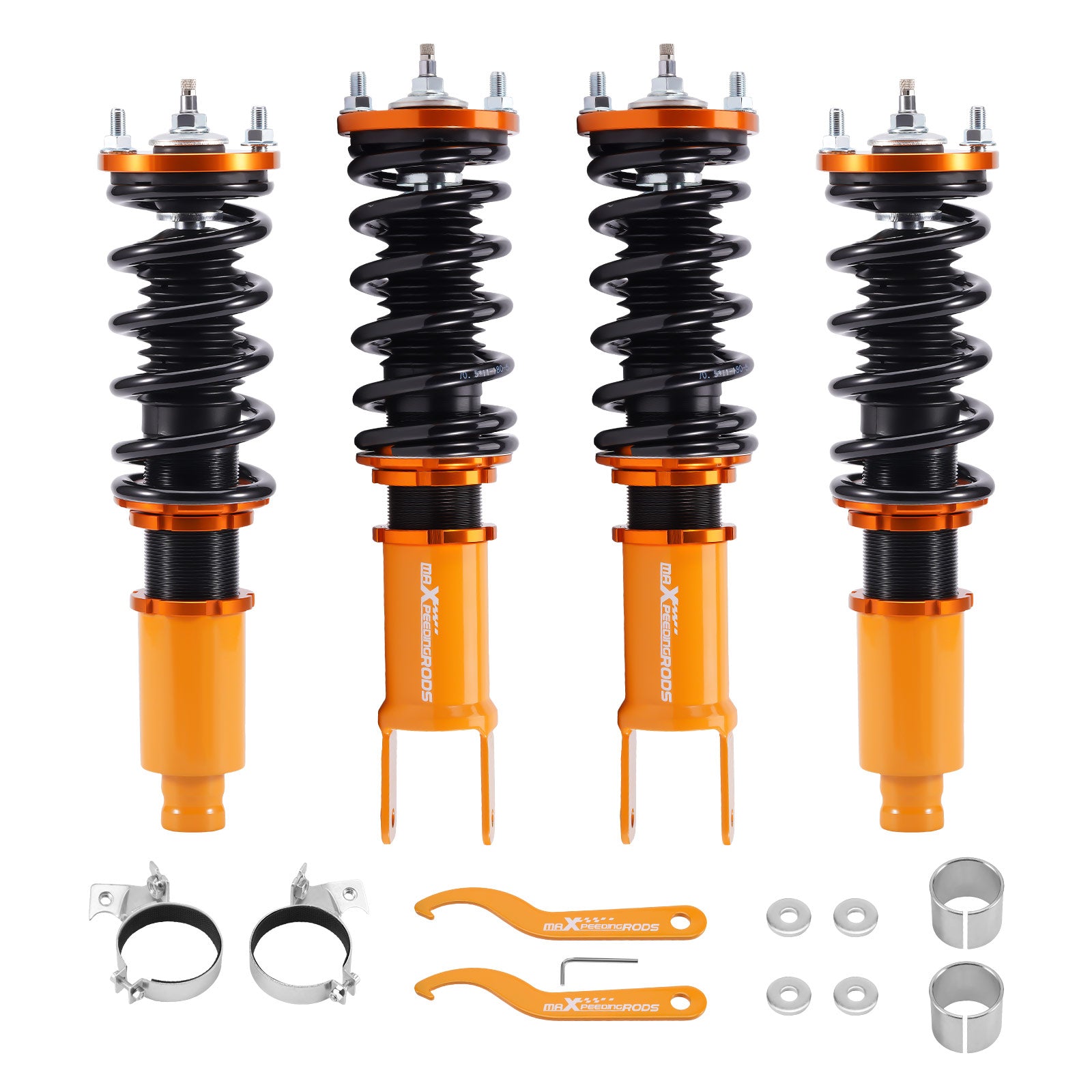

Color: gold body with black spring Package included Complete coilovers assembly 2 front and 2 rear

A pair wrench for height adjustment Dimension Package dimension : 71*51*21

Weight: 22260g Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

4. Twin-Tube structure allows sufficient stroke within the shock absorber.

5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

6. Separate height adjustment does not affect damper stroke.

7. Height can be adjusted with coilovers installed on the vehicle.

8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

9. Height Adjustment tools included.

10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

11. Steel shock bodies with special surface treatment to improve the durability.

12. Full rebuildable.Please note For some vehicles, you will need sleeves and

washers that already included in our package.
