Compatible for Hyundai Veloster 13 14 15 Coilovers Kits Shock Absorbers Lowering Kit

This MaXpeedingRods part is suitable for Hyundai applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),which offer you a lowered stance, and improved performance for your daily use vehicle.Application Suitable for Hyundai Veloster (FS) 2012-2018 Specifications Front top mount: Pillow ball with camber plate

Camber adjustable: Available

Damping adjustable: Not available

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 4 kg/mm (224 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 75-105 mm

Spring length Front: 200 mm

Spring length Rear: 210 mm

Spring Preload advised: 7-10 mm

Color: Golden body with black spring Package included Package included：

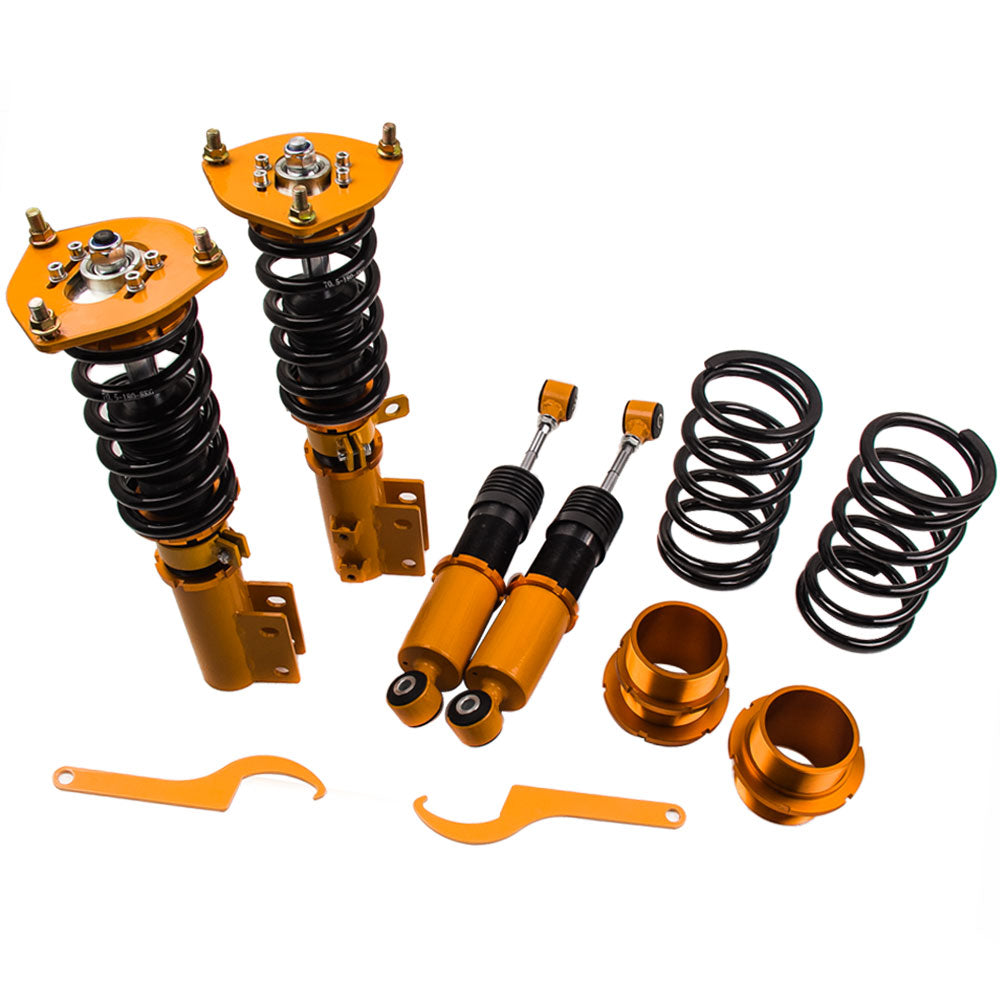

2 x Front coil-overs

2 x Rear coil-overs

2 x C spanners Dimension Package Size: 64*51*20 cm

Weight: 26800 g Features1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

4. CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Note1.All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2.Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation.Any loose nuts, bolts, or locks will cause noise.Do check and tighten before serious problems happen.

3.Impact wrench is prohibited during the installation, it will loosen or damage the product.

4.Examine the clearance between tires and suspension.( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers.Caution: It is not sufficient with torsion beam trailing arm axles)

5.We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
