Compatible for Toyota Corolla 1988 - 1999 E90 E100 E110 Shock Absorber Suspension Kit Red 24 Ways Adjustable Coilovers Lowering Kit

This MaXpeedingRods part is suitable for Toyota applications where listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications and Compatibility

Introduction Ma Xpeeding Rods-B3 series(also called Ma Xpeeding Rods-SLC) based on Ma Xpeeding Rods-B2 series(also called Ma Xpeeding Rods-SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.

Application Suitable for Toyota Corolla E90 E100 E110 AE92 AE101 AE111 1988-1999 Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specifications Top mount: Front camber plate；rear pillow ball

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Adjustable height: lowering 1-3 inch

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: red body with black spring

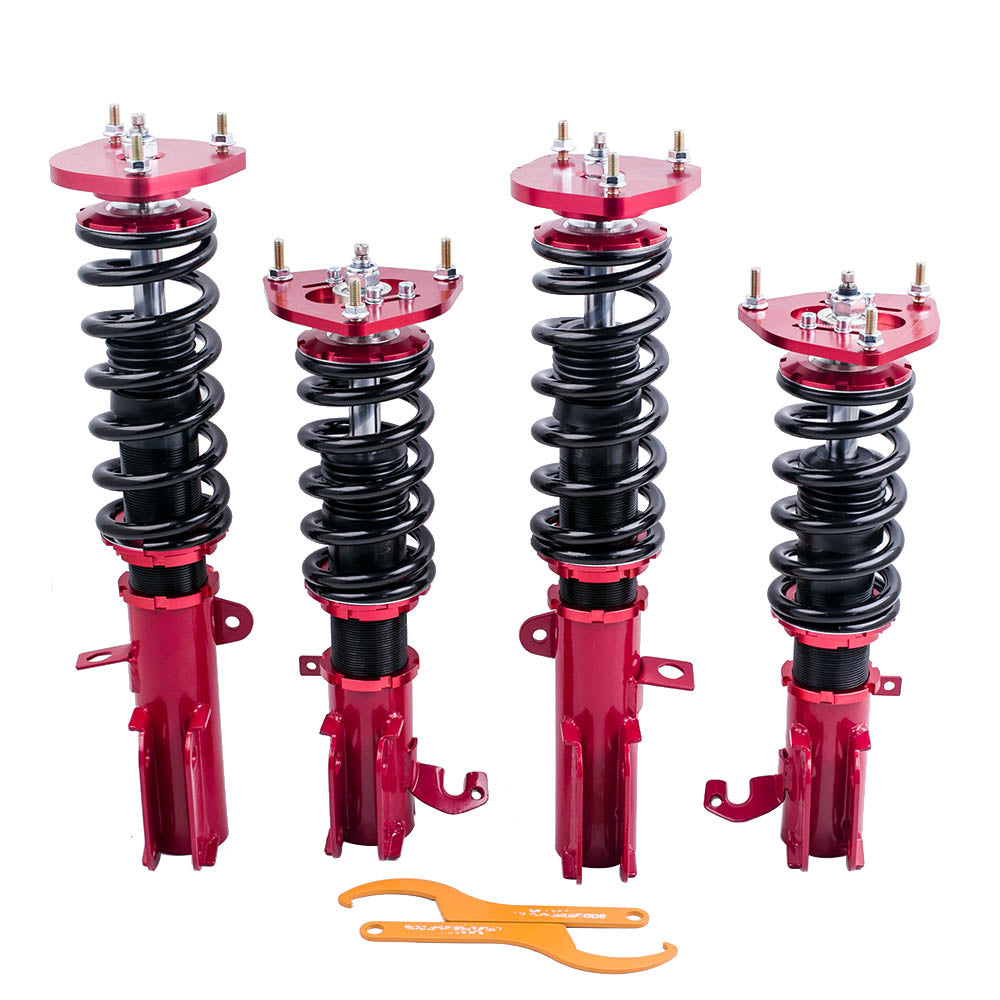

Package included Front complete coilover assembly

rear springs and spring adjusters and shocks

A pair wrench for height adjustment

Dimension Package dimension : 63*51*21

Weight: 26360g

Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3.Camber plate top mounts help to eliminate the need for a separate camber kit.

4.Twin-Tube structure allows sufficient stroke within the shock absorber.

5.Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation.

6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

9.Steel shock bodies with special surface treatment to improve the durability.

10. full rebuildable Warranty: one year warranty for any manufacturing defect
