Compatible For VW Golf Turbo Compatible for Audi A3 compatible for Seat Skoda 140 BHP 103 kW 2.0 TDI BKD BKP AVZ

This MaXpeedingRods part is suitable for Audi, Volkswagen, Skoda, Seat applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Audi A3 2.0 TDI 103 Kw 140HP BKD AZV 2003-2008

suitable for Seat Altea 2.0 TDI 100 Kw 136HP BKD AZV 2004-2007

suitable for Seat Leon 2.0 TDI 100 Kw 136HP BKD AZV 2005-2007

suitable for Seat Toledo III 2.0 TDI 100 Kw 136HP BKD AZV 2004-2007

suitable for Skoda Octavia II 2.0 TDI 100 Kw 136HP BKD AZV 2004

Suitable for VW Golf V 2.0 TDI 100 Kw 136HP BKD AZV 2003-2009

suitable for VW Passat B6 2.0 TDI 100 Kw 136HP BKD AZV 2005-2008

suitable for VW Passat B6 2.0 TDI 103 Kw 140HP BKP 2005-2008

suitable for VW Touran 2.0 TDI 100 Kw 136HP AZV 2003

Suitable for VW Touran 2.0 TDI 103 Kw 140HP BKD 2003

Notice:

Don't suitable for Audi A3 2.0L TDI (8P/PA) with Engine CBAA, CBAB

Don't suitable for Audi A3 TDI AUY/AJM PD UI Euro-4

Don't suitable for VW Golf V, VI 2.0L TDI Engine CBAB, CBDA, CBDB, CFFB, CJAA

Don't suitable for VW Golf V 2.0 TDI Engine BMP, BMM

Don't suitable for VW Passat with DPF PQ35/46 engine

Don't suitable for VW Passat B6 2.0L TDI with Engine BMP, BVD, BMM

Don't suitable for VW Passat B6 2.0L TDI Engine CBAB, CBDA, CBDB

In short : Don't suitable for AUDI A3、 Suitable for VW passat/ Suitable for golf with engine CBAB, CBDA, CBDB, CFFB, CJAA, BMP, BVD, BMM, AUY, AJM, DPFOE-/part number724930-0001,724930-0002,724930-0004 ,

724930-0006,724930-0008,724930-0009,

724930-0010,724930-0012,

724930-5001S,724930-5002S,724930-5004S,

724930-5006S,724930-5008S,724930-5009S,

724930-5010S,724930-5012S,

724930-1,724930-2,724930-4,

724930-6,724930-8,724930-9,724930-10,

03G253019A,03G253019AV,03G253019AX,03G253019AV550,

03G253010J,03G253010JV,03G253010JX,

03G253014H,03G253014HX,03G253014HV,

Notice：Don't fit for the OE/PN number as below: 03L253056A/ 03L253056G/ 038253019N/ 713673-6/ 765261-6/ 03R056253010/ 03G253010/ 03G253014HSpecificaties Turbo Model：GTA1749MV(S2), GTA1749MV, for GT1749MV，(Not for GT1646V, BV39,BV40, BV43 Type)

Engine Code：BKD AZV Euro-4

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower:136hp,140hp

Actuator Type: Vacuum Actuator

Turbo Type: Individual/VNT

Universal Fitment:No

Finish: Matte

Condition: 100% Brand New

Package Size:40x 34x 24 cm

Package Weight: 9500g

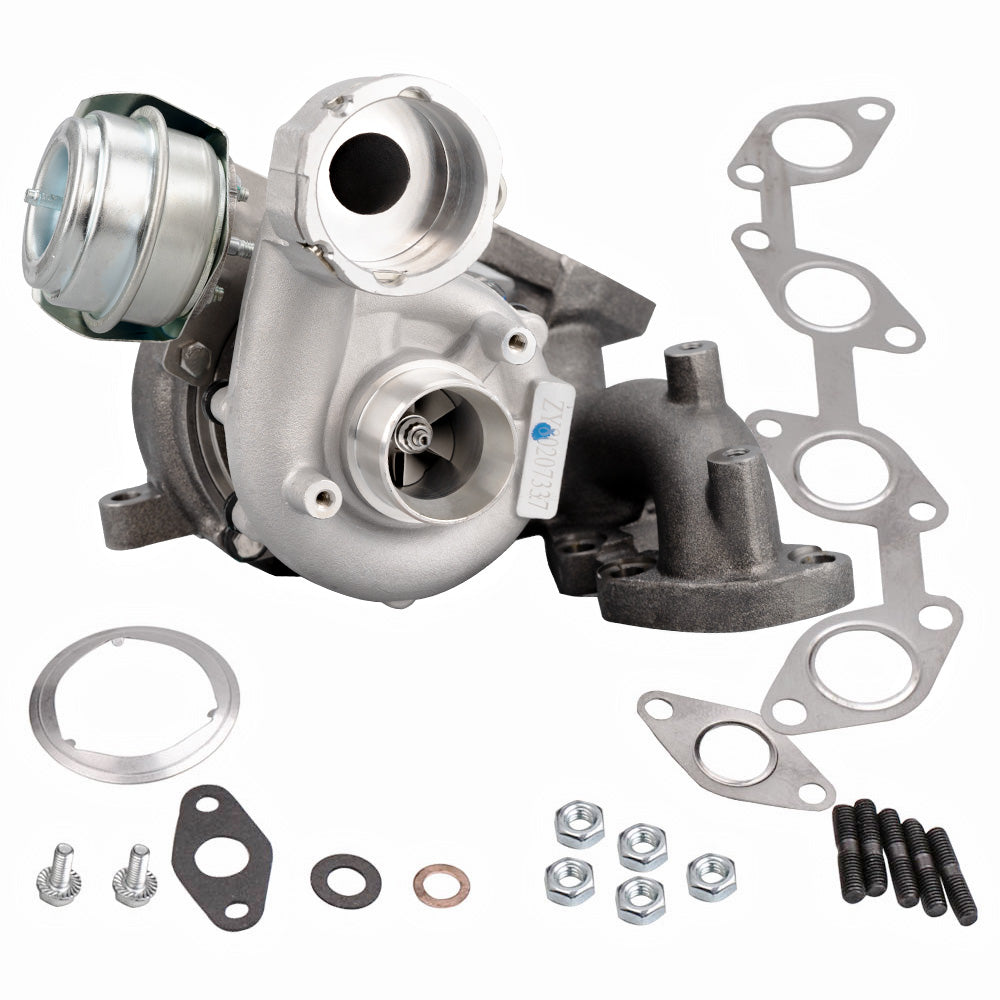

Accessories: You will receive the parts exactly as shown in the picture above.Package included1x Turbocharger

3x Flange Gaskets

5x Bolts&nuts

2x Oil Port Gaskets

2x Screws

1x copper washer Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)
