Compatible for VW Transporter MK 5 T5 +T6 T28 -T30 2003-2015 Coilover Suspension Kit Lowering Kit

This MaXpeedingRods part is suitable for Volkswagen applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MaXpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent. Application Suitable for VW Transporter T5 2003-2015

suitable for VW Transporter T6 2015–present

Including engines 2.0, 3.2V6, 1.9TDi, 2.0TDi, 2.0 Bi TDi, 2.5TDi.

Maximum load T26/T28/T30, excluding T32. Specifications Top mounts: Front and rear OE top mounts required

Damping adjustable: Not available

Camber adjustable: Not available

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Spring Rate Front: 8.5 kg/mm (476 lbs/in)

Spring Rate Rear: 13.5 kg/mm (756 lbs/in)

Spring length Front: 215 mm

Spring length Rear: 168 mm

Spring Preload advised: 7-10 mm

Color: Silver body with golden spring Package included Package included：

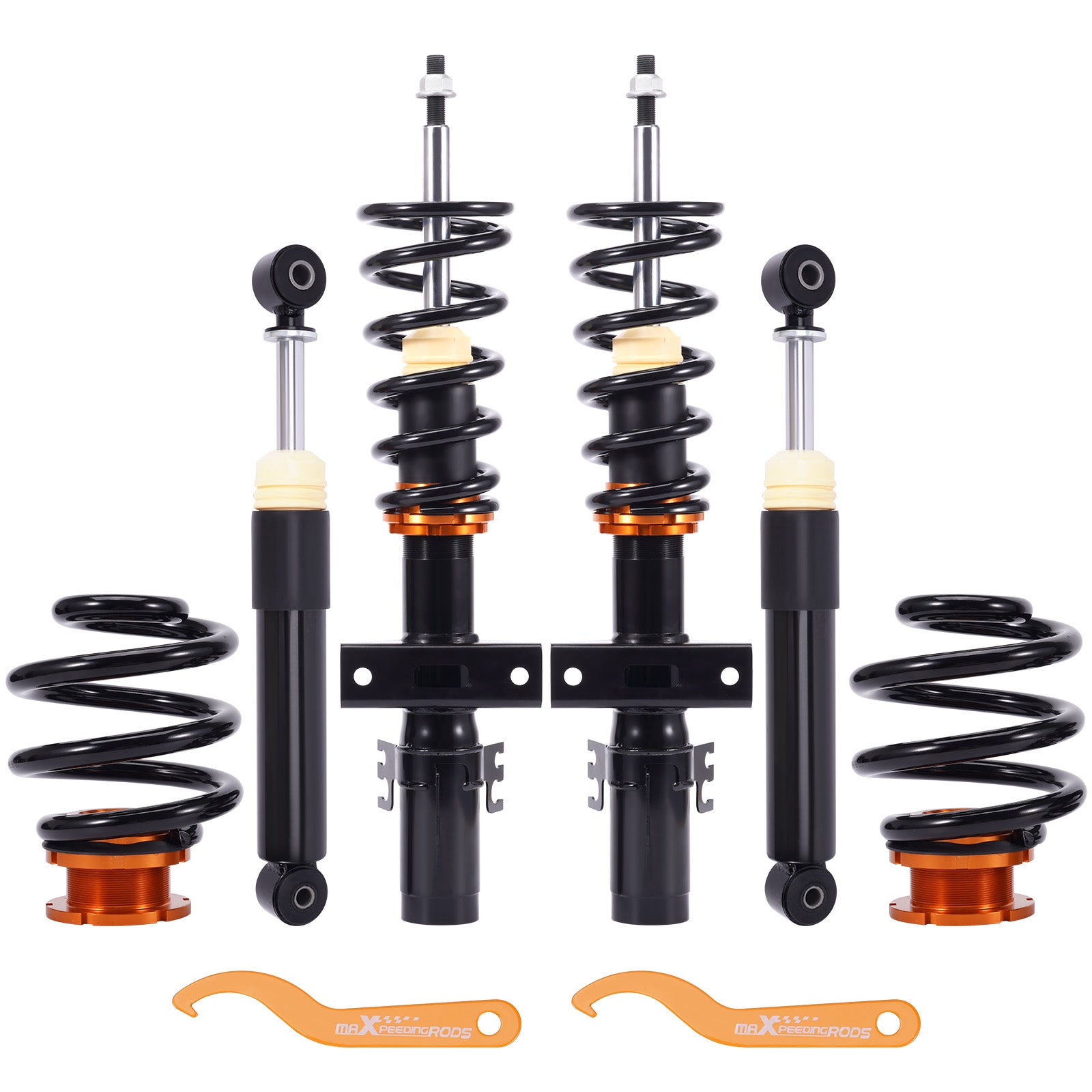

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

1 x Pair of wrenches for height adjustment

(Please note: no top mounts included) Dimension Package size : 71*51*21 cm

Weight: 25900 g Features 1. 0-25mm (depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).
