GTP38 Turbo compatible for Charger Compatible For compatible for Ford F-250 F-350 F-450 7.3L Pickup Trucks 99 00 01 02 03

This MaXpeedingRods part is suitable for Ford applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003

Suitable for Ford F Series Trucks 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors1999

Suitable for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 2000-2003

Suitable for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 2000-2003

Suitable for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine - Produced after 12/98 - Powerstroke Badges on Doors 1999

Please note:

*Turbo Does Not Fit early 1999 7.3L Engines,

*1999 Model Identification

Early 1999 Models: Suitable for V8 Powerstroke Fender Badge and 4 Bolts Securing the Compressor Housing.

Late 1999 Models: Powerstroke Badges on Doors and 5 Bolts Securing the Compressor Housing.

Our turbo only fits for Late models.OE-/Part numberF81Z6K682CARM ,

1831383C92, 1831383C93,1831383C94,

1831450C91, 1831450C94, 1831452C91, 1831660C92

7020120005,702012-0005,7020120006,702012-0006,

7020129006,702012-9006,7020120010,702012-0010,

7020120012,702012-0012,7020125012S,702012-5012S,

7064475003,706447-5003,7064479003,706447-9003,

(Not fit for 1825878C91，702650-0001，471128-9010)Turbine Specifications:

Turbine Wheel Diameter:76.9mm / 67.7mm

Turbine Trim:77.5

Compressor:

Compressor Wheel Diameter:80mm / 59.3mm

Compressor Trim:54.9

Turbo Model:GTP38

Engine Code:7.3L

Cooling Type:Oil cooling

Bearing Type: Floating Bearing

Thrust Bearing:270 degree

Turbo Type:Twin-Scroll

Horsepower: Up to 275HP

Universal Fitment:No

Finish:Matte

Condition: 100% Brand New

Accessories: You will get exactly as shown in the picture above

Package Size:38x36 x 34 cm

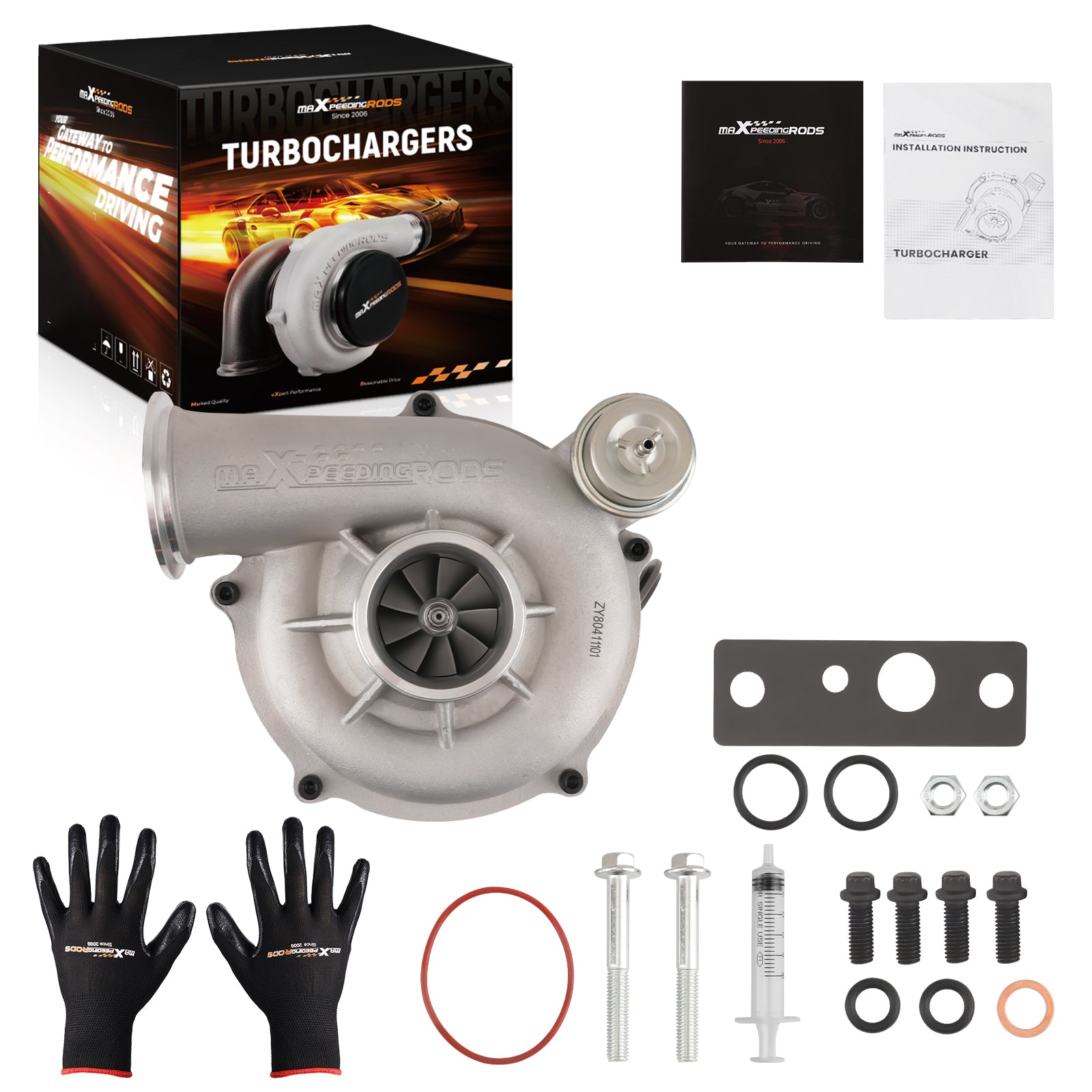

Package Weight: 15850g Package included1x Turbocharger

1x Oil port gasket

8x Bolts + Nuts

5xO-ring

1x Manual

1x Brochure

1x Sticker Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
