H Beam Connecting Rods compatible for Toyota Lexus 3UR LS GS GX 460 LX 570 4.6/5.7L Conrods

This MaXpeedingRods part is suitable for Toyota, Lexus applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Toyota/Lexus 1UR/3UR 4.6 V8 /5.7 V8 engine.

Suitable for:

2007-2017 suitable for Lexus LS 460 & LS 460 L

2005-2011 suitable for Lexus For GS 460

2008 Present suitable for Lexus LX 570

2010 present suitable for Lexus GX 460

2010 present suitable for Toyota Tundra

2007 Present suitable for Toyota Tundra

2008 Present suitable for Toyota Sequoia

2008 Present suitable for Toyota Land Cruiser 200 Series – US and Middle East markets only

2012 suitable for Toyota Land Cruiser (China, Middle East and Australia)

2009-2013 suitable for Toyota Crown Majesta

2010–2012 suitable for Toyota Sequoia

2009–2013 suitable for Toyota Tundra

2009–2014 suitable for Toyota Sequoia

2014 suitable for Toyota Tundra

Pin Type: Floating Pin Piston Specifications*Type: Forged 4340 aircraft chrome moly quality steel for racing

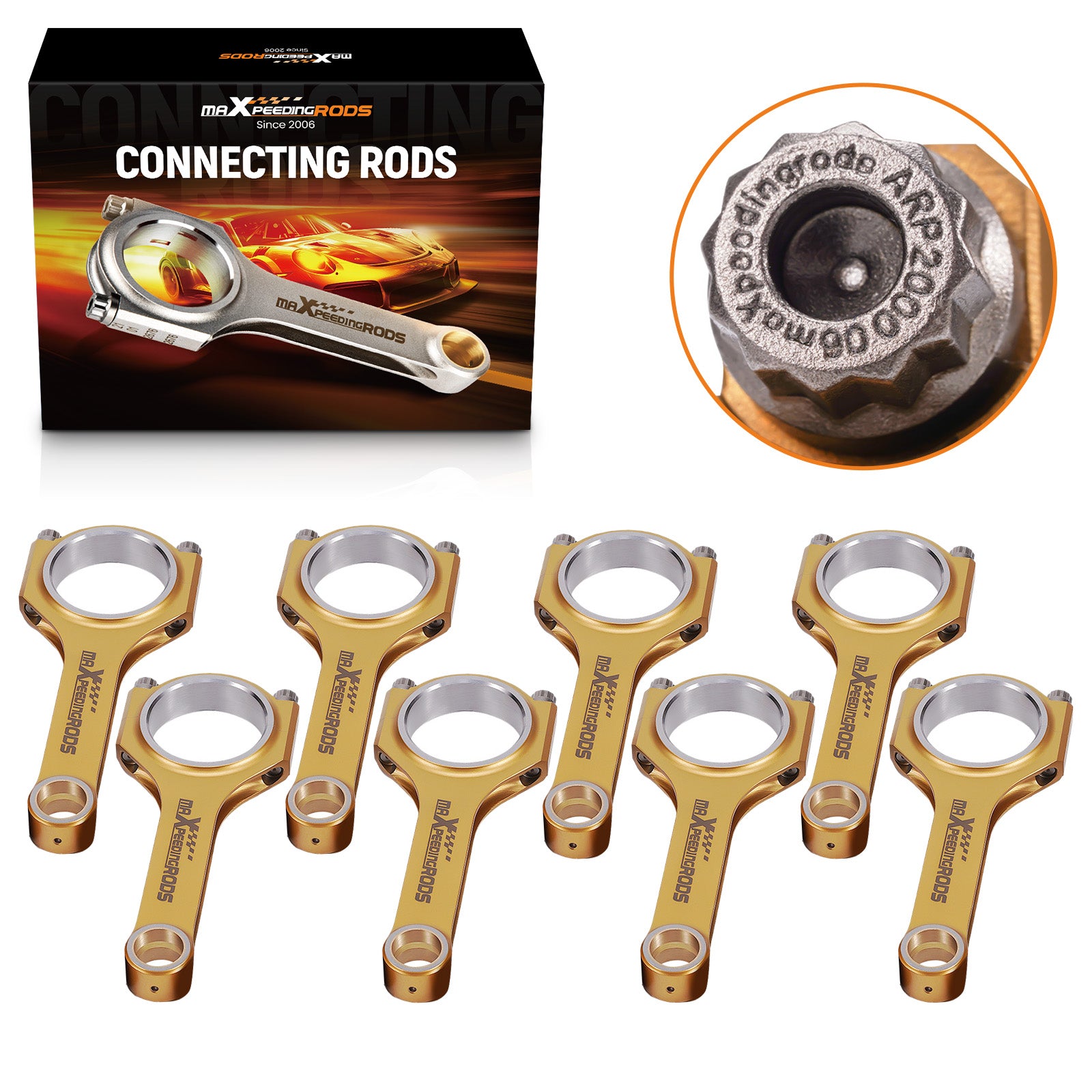

*H-beam Conrods Quantity: 8 Pieces as showing in picture

*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)

*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

*Advertised Horsepower Rating:200HP/piece

*Top acceleration: 9000rpm

*package size：28CM*21CM*14CMDimension Center to center length:147.5mm/5.807"

Big end diameter:56mm/2.205"

Small end diameter:22mm/0.866"

Big end width:20.8mm/0.819"

Small end width:20.8mm/0.819"Features The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.

1. Titanizing can further improve the bending strength of the product;

2. Titanizing will not affect the weight of the connecting rod;

3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;

4. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED.

5. Material: Titanizing Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.

6. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade.

7. H-Beam design reduces weight without compromising strength.

8.Heat-treating & Shot-peened for remained consistent and strong, Shot-peened finish to remove potential for stress risers.

9.High precision CNC machined,Precision rod cap alignment dowels.

10.Bores finished to +/- .005mm.

11.Balanced to within +/- 1 g per rod.

12. Each rod is magnetic particle tested to ensure free of flaws.

13.Use X-rayed, sonic tested.

14.Custom Service.Note*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
