HX55 Turbo for 1994-2011 Dodge Dummins M11 0.70 A/R 0.68 Commins
HX55 Turbo for 1994-2011 Dodge Dummins M11 0.70 A/R 0.68 Commins
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!

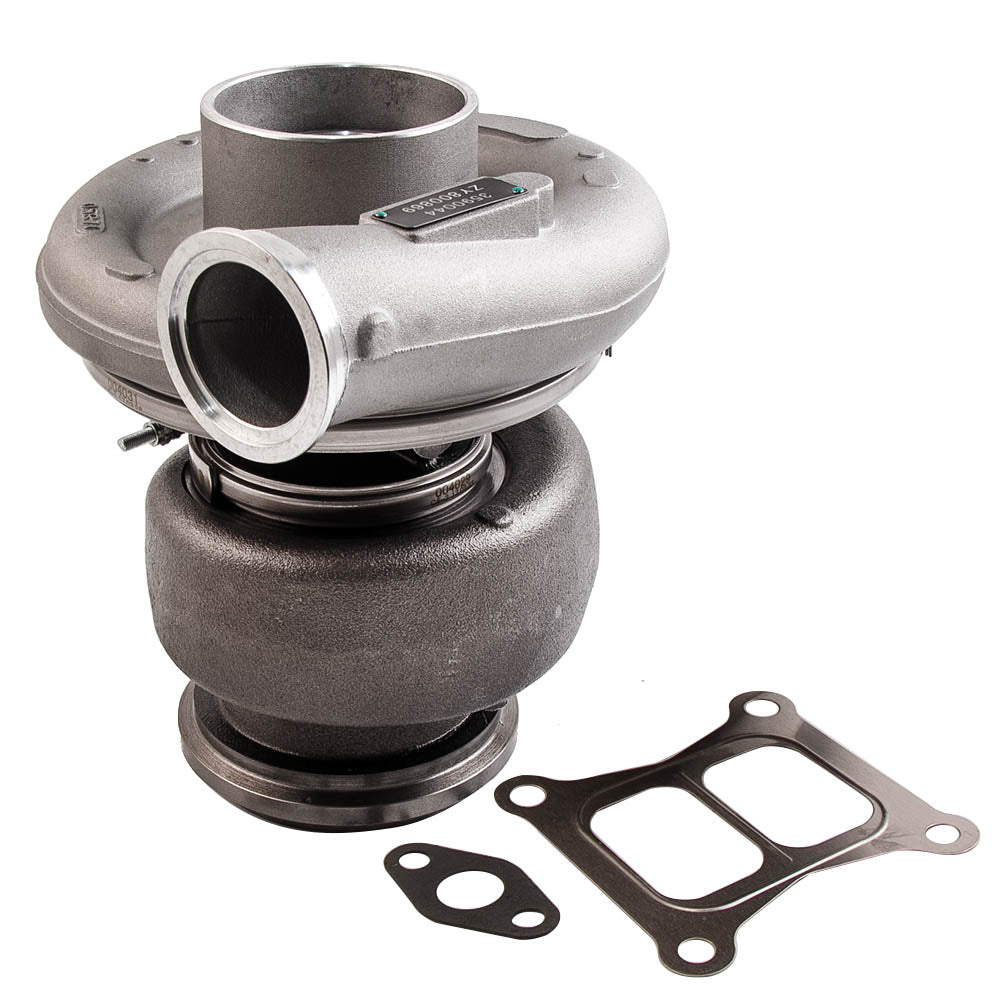

HX55 Turbo Turbocharger for 1994-2011 compatible for Dodge Cummins M11 0.70 A/R 0.68 Cummins
This MaXpeedingRods part is suitable for Dodge applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.
Benefits
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility
Application Suitable for Cummins Truck, Bus with ISM, ISME, M11 Engine 2007-2012
suitable for Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine 1999-2009OE-/part number178923,2834419,
3536149, 3536995, 3536996,
3590044, 3590045,
4033813, 4033813H, 4039173, 4046031,
3800471, 3800471NX, 3800471RX,
3803938, 3803938NX, 3803938RX,Specifications Compressor:
Trim: 0.70
A/R: 0.68
IND: 62.90
EXD: 97.80
Turbine:
Trim: 0. 93
A/R: .88
IND: 86.40
EXD: 77.80
Thread specification: M16 x 18.56
Diameter of oil return hole: 20 MM
Turbo Model: HX55
Engine: M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3
Displacement: 11.0L, 1100 suitable for ccm
Cooling Type：Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearing: 270 Degrees
Hosepower:Up to 500HP
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Size: 34x 31 x 29 cm
Package Weight: 17680 g Features* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Product Certification: TÜV ISO 9001 CERTIFIED
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICSVSR3
2. G3-min-Flow VNT Turbo testing
3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
