MaXpeedingrods Comfort 1 Coilovers Suspension compatible for VW Golf MK4Jetta MK4 98-07

This MaXpeedingRods part is suitable for Volkswagen applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction The ma Xpeedingrods C1 series is designed for those who want to lower their vehicle without sacrificing daily driving comfort. Enjoy improved handling and a smoother ride. Featuring adjustable height and a preset for optimal damping, this series enables you to reduce ride height while maintaining overall comfort.Application Suitable for VW GOLF IV (1J1) Suitable for FWD 08/1997-12/2007

suitable for SEAT LEON (1M1) Suitable for FWD 11/1999-06/2006

suitable for VW NEW BEETLE (9C1, 1C1) Suitable for FWD 01/1998-11/2010

suitable for Audi TT (TTC, TTR) Suitable for FWD Coupe Roadster 04/2000-06/2006

Please note: Will not fit 4-MOTION (AWD), suitable for VW Golf MK4 R32, and suitable for Audi Quattro (AWD) models.Specifications Front Top Mounts: Aftermarket top mounts

Rear Top Mounts: OE top mounts required

Damping Adjustable: Not available

Camber Adjustable: Not available

Height Adjustable: Available, lowering 35-65 mm depending on the vehicle models

Main spring rate front: 6 kg/mm (336 lbs/in)

Main spring rate rear: 6 kg/mm (336 lbs/in)

Main spring length front: 170 mm

Main spring length rear: 237 mm

Helper spring rate front:1 kg/mm (56 lbs/in)

Helper spring length front:102 mm

Front spring inner diameter: 62 mm

Rear spring inner diameter: 55.5-62 mm

Spring Type Front: Linear spring & Helper spring

Spring Type Rear: Progressive spring

Spring Material: 55 Cr Si steel

Shock Body Material: Stainless steel

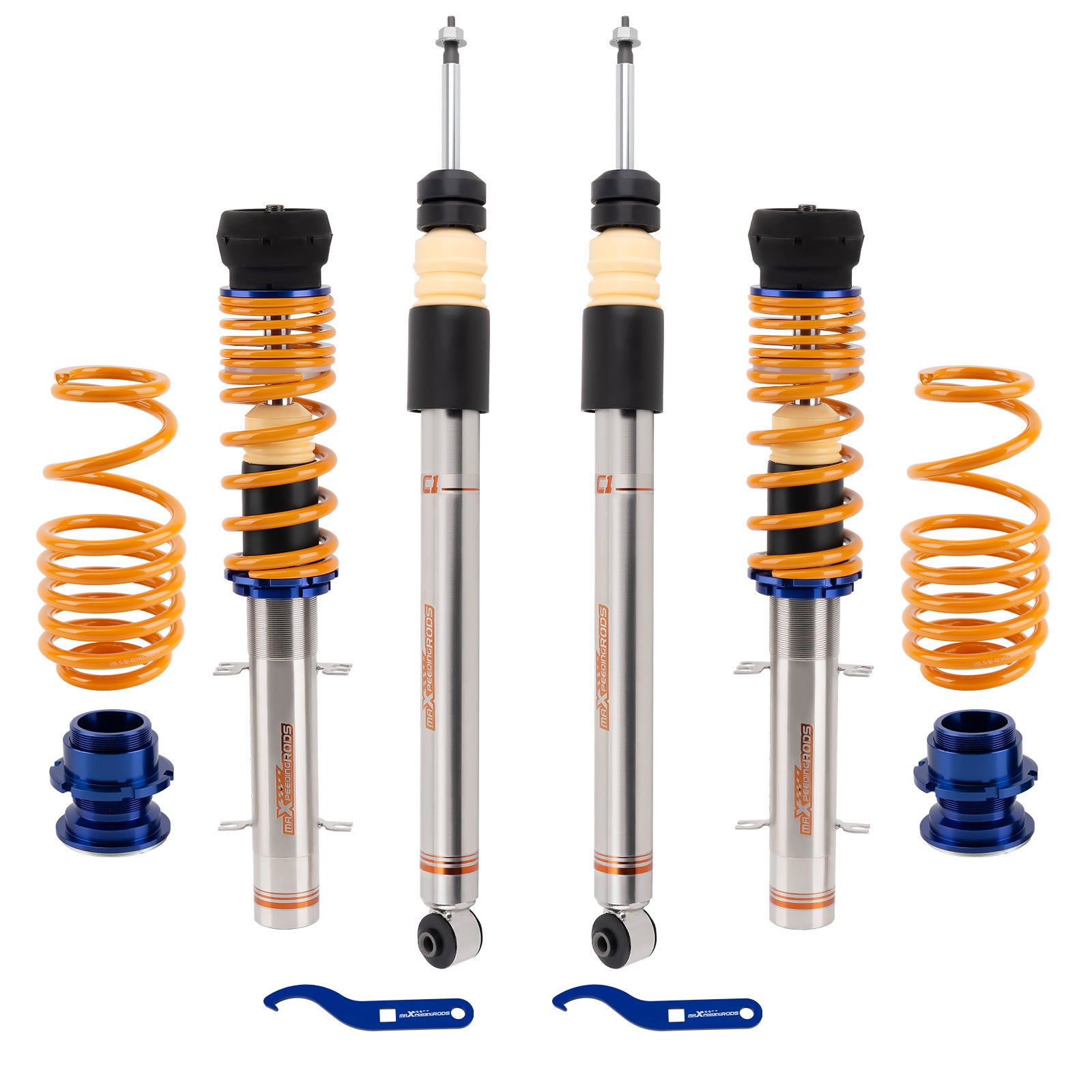

Color: Silver body with golden spring Package included Package included：

2 x Front coil-overs

2 x Rear coil-overs

2 x C spanners Dimension Package Size: 71*51*21 cm

Weight: 21100 g Features1. The stainless steel shock body offers excellent corrosion resistance and durability, prolonging the lifespan of the coil-overs.

2. The factory preset damping and newly designed damping valve will optimize comfort, handling, and performance.

3. Aftermarket top mounts guarantee optimal compatibility and reliability, maintaining vehicle comfort and minimizing noise, vibration, and harshness to the greatest extent.

4. Height adjustment enables precise tuning of the vehicle's stance, improving comfort and handling for a better driving experience.

5. High-strength variable stiffness springs balance comfort and support, improving handling and stability during cornering.

6. High Viscosity Index Damping Oil delivers reliable damping performance and minimizes viscosity fluctuations across a range of temperatures.

7. Twin-tube damping technology offers outstanding comfort and stability, ensuring a smooth ride across different road conditions.

8. The 45# reinforced steel piston rod offers high strength, durability, and wear resistance for enhanced stability.

9. Anodized AL6061 aluminum spring seats and locking rings are lightweight, corrosion-resistant, and strong.

10. The extended dust cover protects the damper from dust intrusion and prolongs the damping system's service life.

11. High-quality sealing materials effectively prevent damper oil leakage, thus enhancing operational efficiency and reliability.

12. The rubber buffer provides excellent elasticity and shock absorption for a comfortable ride.
