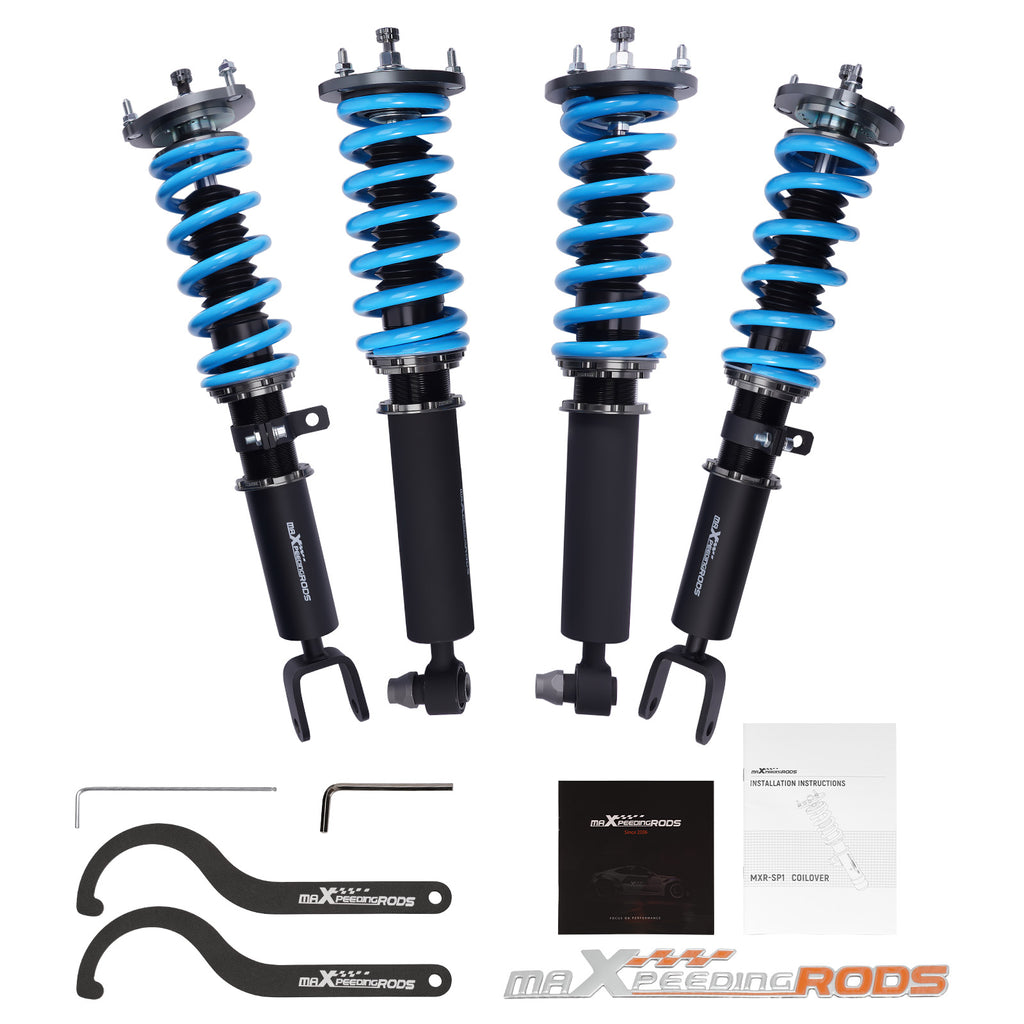

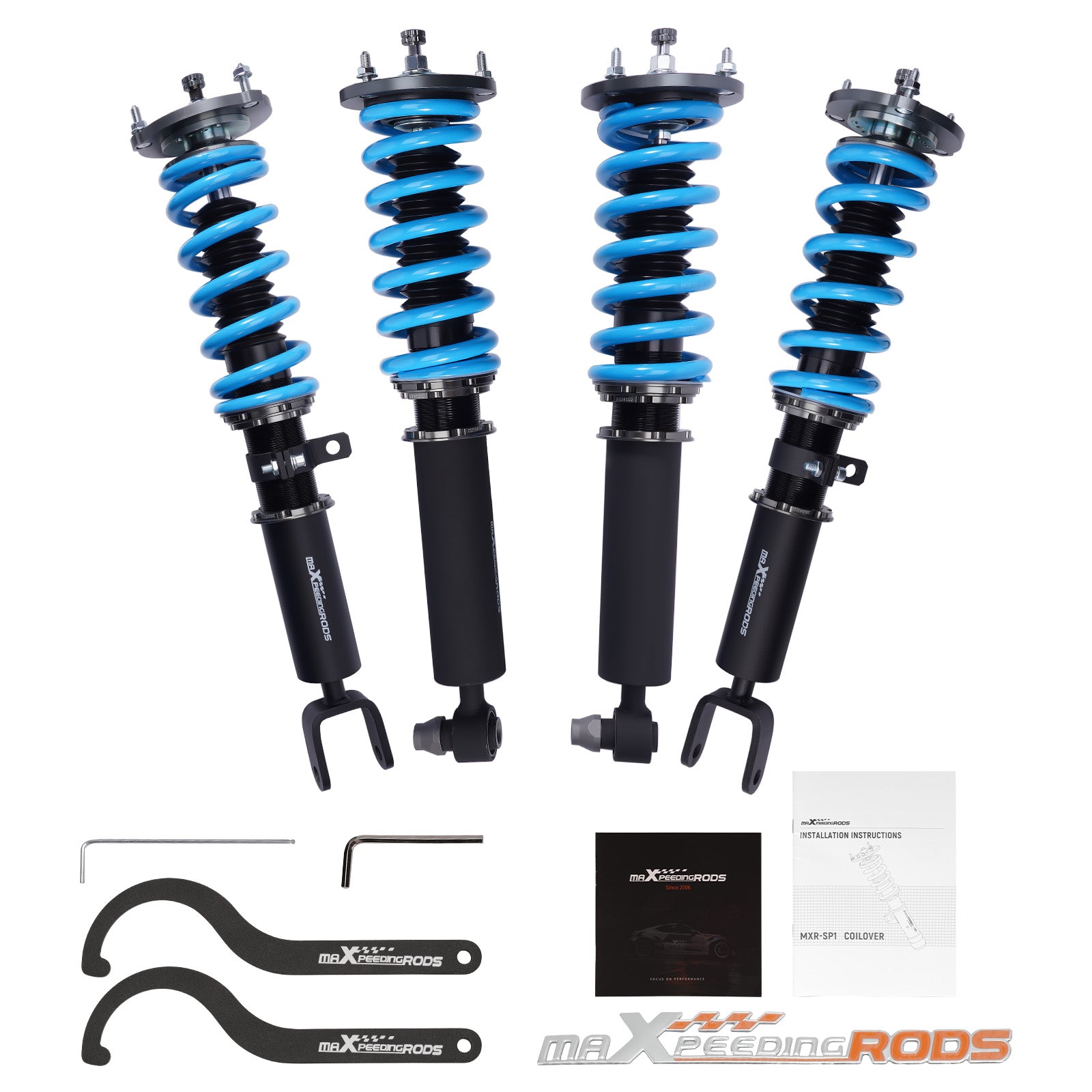

Performance Coilovers Kit compatible for BMW 5 Series F10 RWD Saloon 2009-2016 528i 520d Lowering Kit

This MaXpeedingRods part is compatible with BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications and Compatibility

Application:

Compatible with BMW 5-Series (F10) Saloon (01/2009-10/2016) RWD

520i, 523i, 528i, 535i, 550i, 518d, 520d, 535d

Specifications:

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping: 24 levels of rebound damping force

Shock structure type: twin-tube

Front top mount: Pillow ball

Rear top mount: Standard rubber

Camber adjustable: Not available

Spring Rate Front: 12 kg/mm (672 lbs/in)

Spring Rate Rear: 10 kg/mm (560 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 230 mm

Spring length Rear: 230 mm

Coilover overall length Front: 380mm-495mm

Coilover overall length Rear: 490mm-570mm

Spring Preload advised: 7-10 mm

Introduction: MaXpeedingRods T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate (for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle a more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which ensures good quality and long life.

Features

1. Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable Reliable

6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. With a better-damping setting, you will get better performance and comfort at the same time.

9. Twin-Tube structure ---provides excellent handling control characteristics for most driving conditions

10. Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.

12. Clean room assembled---maintain a higher level of accuracy and reliability.

13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

Package included：2x Front coil-overs2x Rear coil-overs1x Allen wrench2x C spanners

Please note: Will not fit Electronic controlled damper or air suspension Not for AWD
