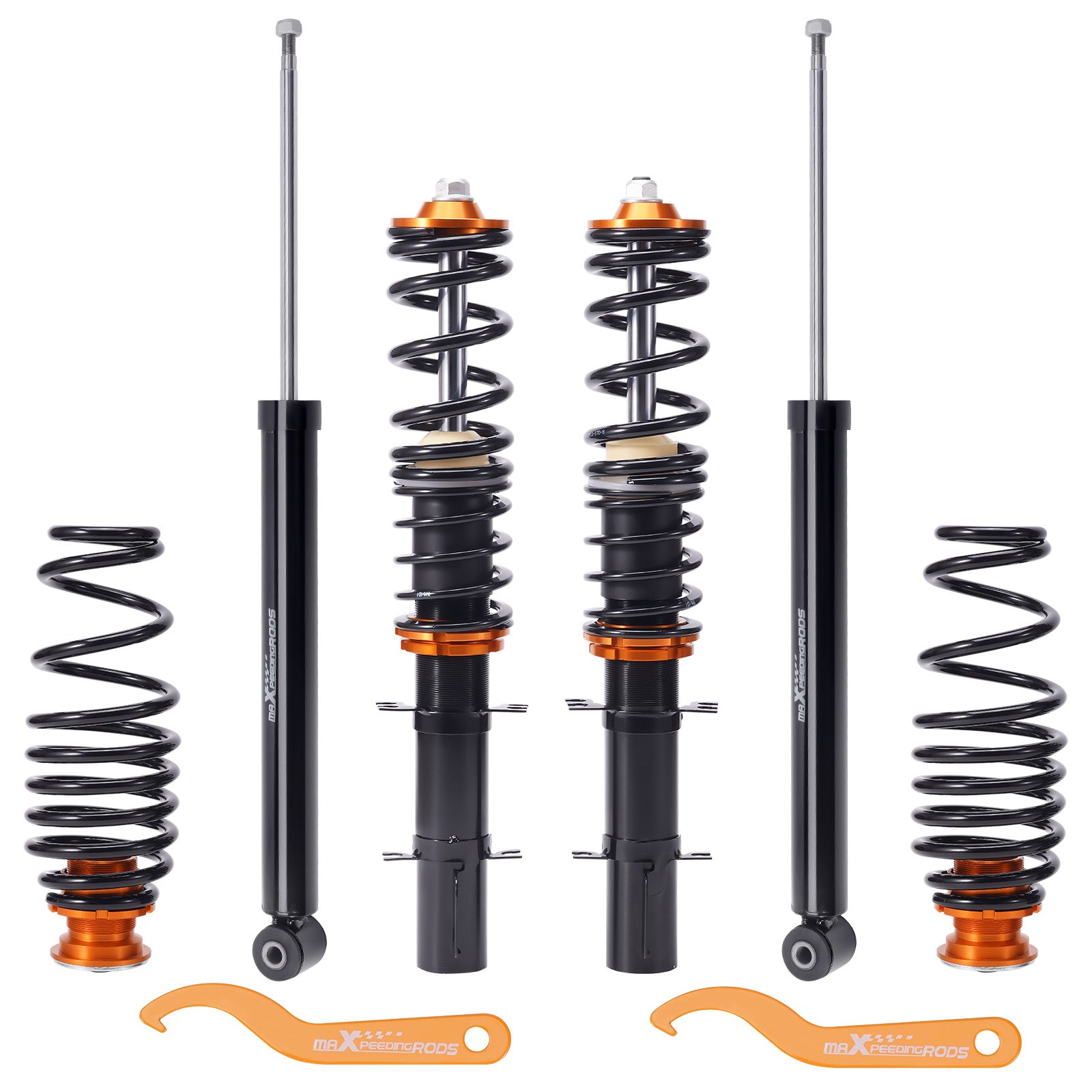

Coilovers Suspension Kit compatible for VW Golf MK4 IV 1.8T GTI TDI 2.3 V5 Bora Saloon

This MaXpeedingRods part is suitable for Volkswagen applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Ma Xpeedingrods-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.Application Suitable for VW GOLF IV (1J1) Suitable for FWD 08/1997-12/2007

suitable for SEAT LEON (1M1) Suitable for FWD 11/1999-06/2006

suitable for VW NEW BEETLE (9C1, 1C1) Suitable for FWD 01/1998-11/2010

Note: Will not fit 4-MOTION (AWD), suitable for VW Golf MK4 R32, and suitable for Audi Quattro (AWD) models.Specifications Top mounts: Front and rear OE top mounts required

Damping adjustable: Not available

Camber adjustable: Not available

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Spring length Front: 170 mm

Spring length Rear: 275 mm

Spring Preload advised: 7-10 mm

Color: Black body with black spring Package included Package included：

2 x Front coil-overs

2 x Rear coil-overs

2 x C spanners Dimension Package Size: 71*51*21 cm

Weight: 20850 g Features1.0-25mm(depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install,Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).
