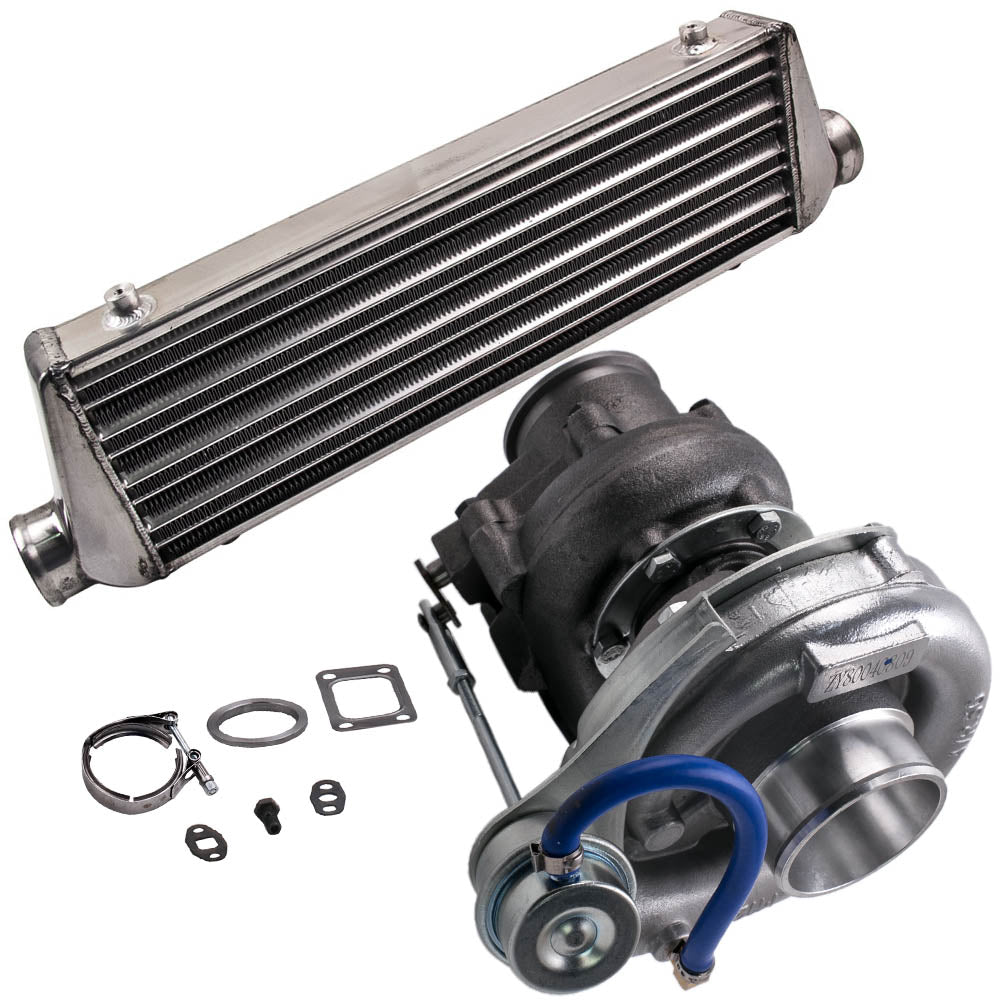

T04E T3 T4 Turbo suitable for Charger + 27 x 7 x 2.5 2.5 inch Intercooler 64mm Turbo Pipe Kit
T04E T3 T4 Turbo suitable for Charger + 27 x 7 x 2.5 2.5 inch Intercooler 64mm Turbo Pipe Kit
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
T04E T3 T4 Turbo compatible for Charger + 27 x 7 x 2.5 2.5 inch Intercooler 64mm Turbo Pipe Kit
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Advantages
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility
Application Suitable for 1.5L to 2.5L any 4/6 cylinder engine Specifications Turbo compatible for Charger Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns Exhaust Outlet (Downpipe) Flange: V-Band Flange Turbine Trim: 72.8 Turbine Inducer Diameter: 65.5 mm Turbine Exducer Diameter: 55.9mm Turbine A/R: 0.63 Compressor Trim: 44.2 Compressor Inducer Diameter: 50.5 mm Compressor Exducer Diameter: 76 mm Compressor A/R: 0.5 Oil Inlet: M12*1.25 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Warranty: one year Internal Wastegate: Yes Cooling Type: Oil Cooled Horse Power: Capable of Boosting Horse Power up to 420HPIntercooler Inlet / Outlet size : 2.5"Overall size : 27'' (L) x 7'' (H) x 2.5'' (W)Core size : 21'' x 7'' x 2.25''Core design: Tube Fin Compress Air Flow Rate ＜350 Cubic Feet/Min，Rated up to 500 Max HPPressure drop: 2~5psi at 35psi, 0.2~0.5psi at 15psi Material: Aluminum, Light weight designed Notice* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (No Instruction Included)
.jpg?x-oss-process=image/auto-orient,1/quality,q_70/resize,m_mfit,w_1000,h_1000)
A:Hallo, Wenn Ihr Modell Petrol Estate /Petrol Saloon 1995cc 100KW/1995cc 105KW ist, kann es angepasst werden. Bitte überprüfen Sie es erneut. mfG.
Answer
*Please select a category!
Geben Sie Ihr Reiseziel ein, um eine Versandschätzung zu erhalten.
warranty
T04E T3 T4 Turbo compatible for Charger + 27 x 7 x 2.5 2.5 inch Intercooler 64mm Turbo Pipe Kit
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Advantages
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility
Application Suitable for 1.5L to 2.5L any 4/6 cylinder engine Specifications Turbo compatible for Charger Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns Exhaust Outlet (Downpipe) Flange: V-Band Flange Turbine Trim: 72.8 Turbine Inducer Diameter: 65.5 mm Turbine Exducer Diameter: 55.9mm Turbine A/R: 0.63 Compressor Trim: 44.2 Compressor Inducer Diameter: 50.5 mm Compressor Exducer Diameter: 76 mm Compressor A/R: 0.5 Oil Inlet: M12*1.25 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Warranty: one year Internal Wastegate: Yes Cooling Type: Oil Cooled Horse Power: Capable of Boosting Horse Power up to 420HPIntercooler Inlet / Outlet size : 2.5"Overall size : 27'' (L) x 7'' (H) x 2.5'' (W)Core size : 21'' x 7'' x 2.25''Core design: Tube Fin Compress Air Flow Rate ＜350 Cubic Feet/Min，Rated up to 500 Max HPPressure drop: 2~5psi at 35psi, 0.2~0.5psi at 15psi Material: Aluminum, Light weight designed Notice* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (No Instruction Included)
