T3 T04E V-band Turbocharger +Turbo Manifold compatible for BMW E39 E38 E36 E46 Z3 M52 M50

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

T3 T04E Turbocharger w/ Wastegate T3 Turbo Manifold E46 323I / 323IS new

Application:

Suitable for BMW 6-cylinder (M50 + M52) engines

Suitable for BMW E34

1990-1992 suitable for BMW E34 520i M50B20 engine

1992-1995 suitable for BMW E34 520i M50TU B20 engine

1990-1992 suitable for BMW E34 525i M50B25 engine

1992-1996 suitable for BMW E34 525i M50TU B25 engine

Suitable for BMW E36

1990-1992 suitable for BMW E36 320i M50B20 engine

1994-1999 suitable for BMW E36 328i M52B28 engine

1992-1994 suitable for BMW E36 320i M50TU B20 engine

1989-1992 suitable for BMW E36 325i M50B25 engine

1992-1995 suitable for BMW E36 325i M50TU B25 engine

1994-1999 suitable for BMW E36 320i M52B20 engine

1994-1999 suitable for BMW E36 323i M52B25 engine

1997-2000 suitable for BMW E36 323ti M52B25 engine

1998-2001 suitable for BMW E36/7 Z3 2.8 M52TUB28 engine

Suitable for BMW E39

1995-1998 suitable for BMW E39 523i M52B25 engine

1996-1999 suitable for BMW E39 520i M52B20 engine

1998-2000 suitable for BMW E39 520i M52TUB20 engine

1998-2000 suitable for BMW E39 523i M52TUB25 engine

1995-1998 suitable for BMW E39 528i M52B28 engine

1998-2000 suitable for BMW E39 528i M52TUB28 engine

Suitable for BMW E46

1998-2000 suitable for BMW E46 320i/320 Ci M52TUB20 engine

1998-2000 suitable for BMW E46 323i/323 Ci M52TUB25 engine

1998-2000 suitable for BMW E46 328i/328 Ci M52TUB28 engine

Suitable for BMW Z3 Z3

1998-2000 suitable for BMW Z3 Z3 2.0 i M52TUB20 engine

1997-1999 suitable for BMW Z3 Z3 2.8 i M52B28 engine

Suitable for BMW E38

1998-2001 suitable for BMW E38 728i/728iL M52TUB28 engine

1996-1998 suitable for BMW E38 728i/728iL M52B28 engine

1. AboutT3 T04ETurbocharger

Perfect for 4 or 6 CYL, 1.5L to 2.5L engines

Exhaust (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet Pipe Flange: V-Band Flange

Cooling Type:Oil Cooled

Wastegate:w/ Wastegate

Horse Power:Boost Horse Power up to 420HP

Compressor Side:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet:78 mm

Compressor inlet:51.5 mm

Oil Inlet:M12*1.25 & 2*M8*1.25

Oil Outlet:2*M8*1.25

Bearing: Journal Bearing

Cooling Type:Oil Cooled

Thrust Bearings:270 Degrees

Hosepower:Up to 420 HP

2.About Cast Iron Turbo Manifold T3 flange:

Features:

*100% Brand New

*one year warranty

*Cast Iron Turbo Manifold

*With 35mm/38mm External Wastegate Flange

*T3 Flange, fit T3 and T3turbo

*Great for Increase HP, Improve More Air Flow, Gain 10-15HP

*Professional Installer is Highly Recommended (Instruction Included. (If not, we could offer you the E-book version. ))

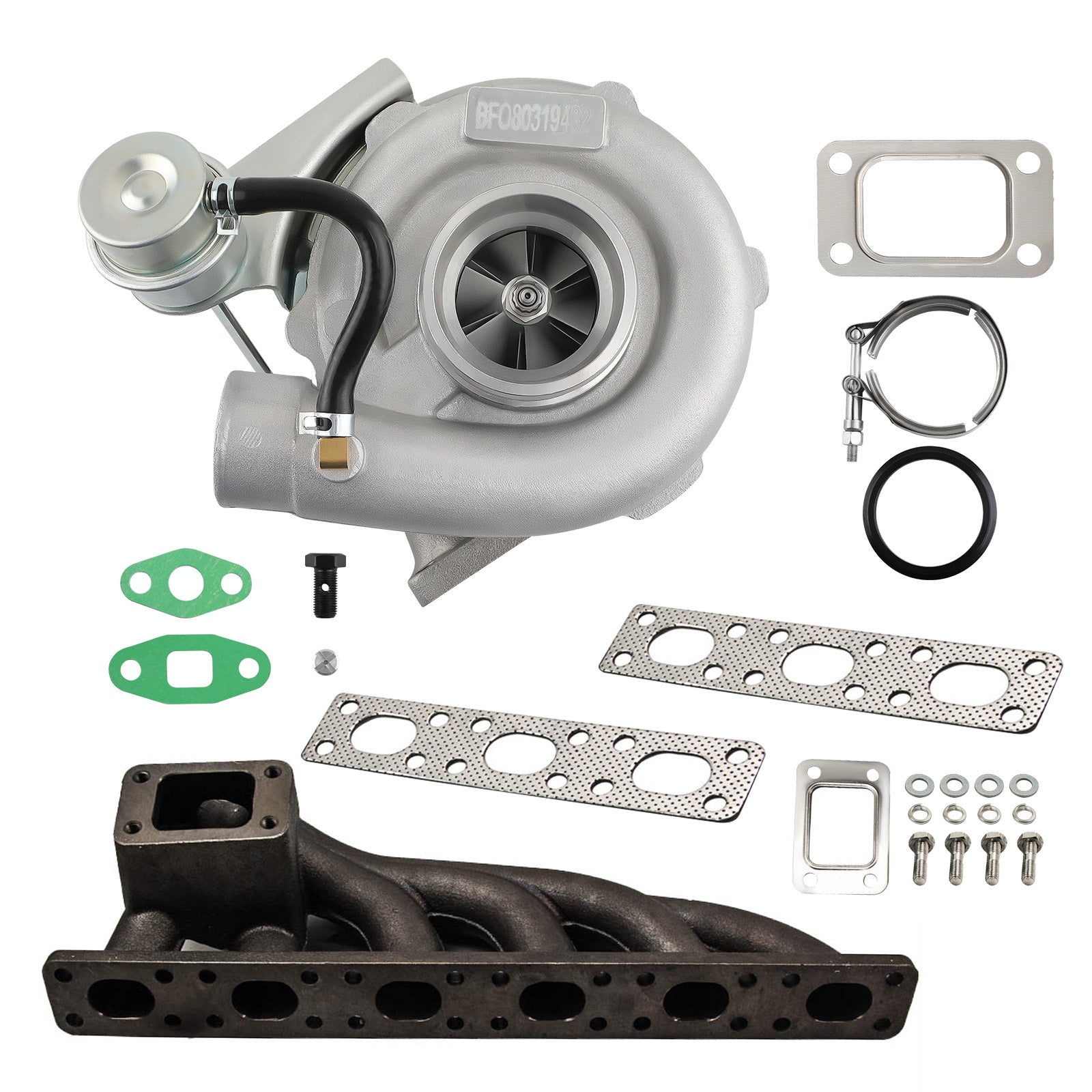

Included:

* 1x T3 V-band Turbocharger

* 1x Bottom mount Turbo Exhaust Manifold

* Hardware as Shown in the Picture Above

Please note:

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.

* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))

*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
