T3/t4 Turbo Kit 350hp + Wastegate + Charge Air Cooler+ Pipe+ Bov + Oil Pipe 10 Pcs.

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Universal Turbo Kit Perfect For 1.5L-3.0L engine

This Kit Will be able to add 350+HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)

*Notice:Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.Specifications Turbine Side:

Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet pipe Flange: 5 bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter:64.8 mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.63

Compressor Side:

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Compressor Inlet Diameter: 72mm(2.8")

Compressor Outlet Diameter:53mm（2"）

Bearing Type: Wet Float Bearing

Cooling Type:Oil Cooling

Thrust Bearing:270 degree

Horsepower:Up to 400HP

Oil Inlet: 1/8 NPT

Turbo Type:Individual

Condition: New

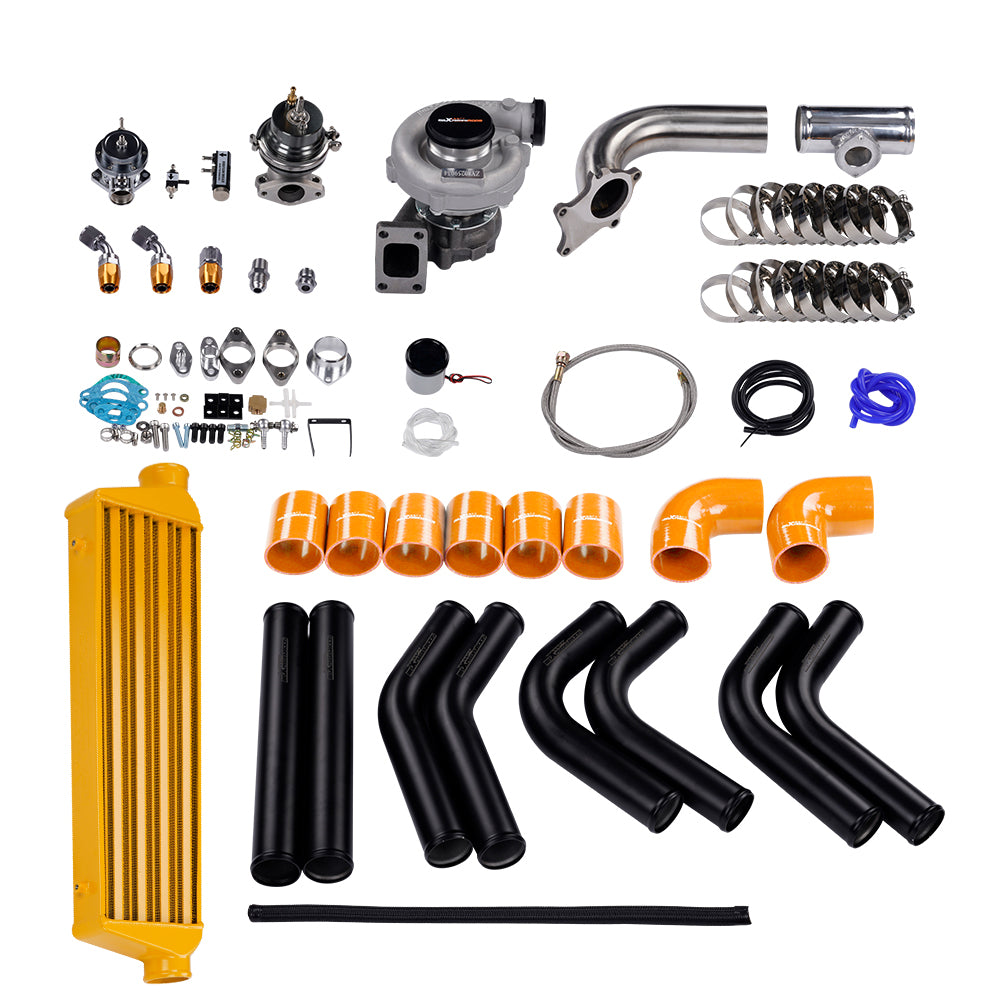

Accessories: You will get exactly as shown as picture above

Other specification in the kit :

*1 x Intercooler:Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.

Support up to 350 hp for this small intercooler size - tube and fin style .

Intercooler core size:21*7*2.5

*1 x Universal turbo intercooler piping kit including:

2 x Straight Aluminum Pipe

2 x 45°Aluminum Pipe

2 x 75°Aluminum Pipe

2 x 90°Aluminum Pipe

6 x 2.5" Straight Silicon Hose (Blue)

2 x 2.5" 90 Degree Hose (Blue)

16 x 2.5" Stainless Steel T-Clamp

*1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe.25PSi Boost!

*1 x BOV pipe: can install anywhere suitable

*1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit

*1 x Turbo Boost Gauge: 2" (52mm) Turbo Boost Meter Gauge.

*1 x Turbo Boost Controller:

*1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.

*1x 5 Bolt pipe: 2.5" t3/t4 5-bolt stainless steel TIG welded pipe. pipe length: 13“

Package Size:94x 46 x 45 cm

Package Weight: 24600g Package included1x Turbocharger

1x Oil Feed / Return Line

1x 35/38mm Wastegate

1x 5 Bolt Turbo pipe

1x Turbo Boost Gauge

1x Turbo Intercooler

1x Tubo Boost Controller

1x Type-S Blow Off Valve(Random Color)

1x BOV Adapter/pipe

1x Turbo Piping Kit

1x Manual

1x Brochure

1x Sticker Features1.Turbocharger:

*Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

*Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

*Compressor housing：ZL104 aluminum with lightweight

*Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

Cost-effective turbo increase 20-40% power for your car

Rich experience in turbo production and own factory

High-Speed oil seal ring and Precision clearance

Built for durability and strength

* Technology Advantage:

100% balancing Test by TURBOTECHNICSVSR3

G3-min-Flow VNT Turbo testing

Advanced Actuator Tester/Programmer

2. Intercooler

* core size:21*7*2.5 cools down the turbocharged air efficiently

* Lightweight aluminum racing intercooler,

* Strong TIG welds will support high PSI levels

3.Boost controller

* Can be setup to adjust boost PSI on the fly

* Can be adjusted for any PSI level desired

* Control your boost with a precise click

* Includes complete install kit

* Anodized aluminum finish

* CNC machined design

4. Intercooler piping kit

* Made of 6061 aluminum

* Lightweight yet strong aluminum piping

* High pressure silicone couplersand T-bolt clamps

5. Turbo Oil returen /Feeding line kit

* Stainless Steel Braided

* Includes complete install kit

*It helps circulate oil from the turbocharger to the oil pan.

* The kit provides a anodized look

* gives a best cooling performance on your turbo and long lasting life.

6.Blow Off Valve Kit

* CNC Billet Aluminum Type RS Style Blow off Valve

* Easy Mount Piping Set Included For Bolt-On.

* Including all necessary hardwares.

* easily adjustable to prevent both permature boost leakage and compressor surge.

* Fast response One For Low And High Boost Pressure.

* Performance design produces a powerful and aggressive sound

* Quality design will not leak under high boost conditions

* Flanges can be installed at user discretion

7. 38MM Wastegate

* Most reliable wastegates For competition vehicles.

* accurate boost control

* high quality appearance features Dual port design

* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.

8. 5 Blot Turbo pipe

* CNC machined surface

* Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.

9. BOV pipe/Adapter

* can install anywhere suitable

10.Turbo Boost Gauge

* Red LED Illuminated Needles.

* Comes with All the Wiring Necessary for Installation.

* All Accessories are Included for
