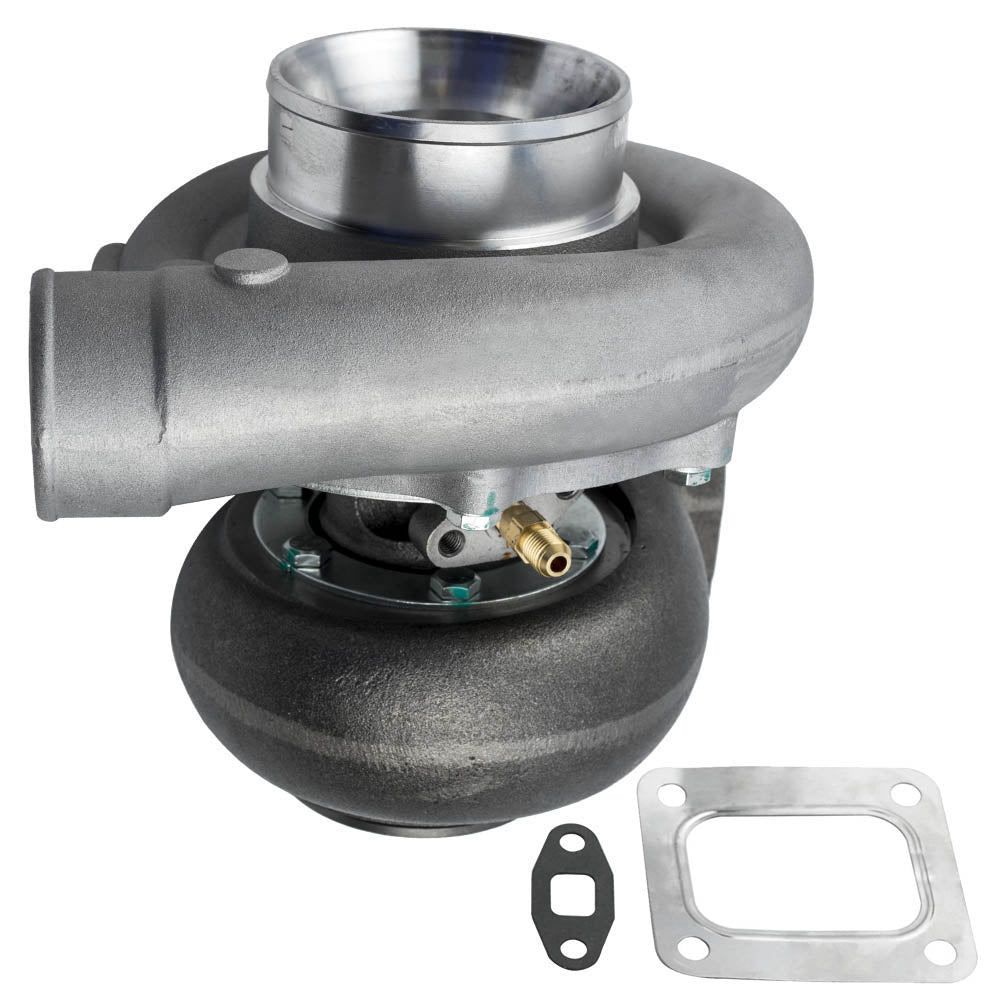

T76 Turbo suitable for Charger .96 A/R Comp .80 A/R Oil cold 500HP Floating Bearing
T76 Turbo suitable for Charger .96 A/R Comp .80 A/R Oil cold 500HP Floating Bearing
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
T76 Turbo compatible for Charger .96 A/R Comp .80 A/R Oil cold 500HP Floating Bearing
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check the part number, fitment and specifications before ordering.
Advantages
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility
Application Universal turbofor V6 suitable for V8 Cars
Perfect fit for Above 3.0L Engines, 6/8 cylinder Specifications Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange:V-Band
Turbine Inducer Diameter: 73.5
Turbine Exducer Diameter: 64.3
Turbine Trim: 76.5
Turbine A/R:0.96
Oil Inlet: 1/8"-27 Oil Outlet: 2*M8*1.25 Compressor Trim: 56.1 Compressor Inducer Diameter:76.6
Compressor Exducer Diameter:102.3
Compressor Air Inlet: 130.9mm Compressor Air Outlet: 107mm Compressor A/R:0.8 Inner diameter: 91.95mm Outer diameter: 74.5mm Bearing:Wet Float
Cooling Type:Oil Cooled
Wastegate: External Wastegate
Turbo Type: Individual
Thrust Bearing:270 degree
Horse Power: Boost Horse Power up to 500BHP
Condition: New
Accessories: You will get exactly as shown in the picture above
Package Size: 29*27*24 cm
Package Weight: 10000 g Package included1x Turbocharger
1x Flange gaskets
1x Oil port gaskets Features*Product Material
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness corrosion resistance
*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICSVSR3
2. G3-min-Flow VNT Turbo testing
3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!Warranty: one year warranty for any manufacturing defect
