Turbo 0.50 A/R T04E T3 T4 0.63 Turbine T04e Universal Turbocharger 400+HP
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Benefits
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, Specifications, and Compatibility
Application Suitable for 1.5L to 2.5L any 4/6 cylinder engine
Notice: Please confirm that your car's displacement is between 1.5-2.5L. Please check the size before purchasing and make sure that your car has enough space to install this turbo. Specifications Turbine:
Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet：44.5mm/81mm
Compressor:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet：45mm(inside diameter)、53mm(outer diameter)
Compressor inlet：68 mm(inside diameter)、72mm(outer diameter)
Oil Inlet: M12*1.25
Oil Outlet:2*M8*1.25
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust bearing: 270 degrees
Horse Power: Up to 400 hp
Wastegate：Without Wastegate
Actuator Type: W/O Actuator
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size:27x 25x 24 cm

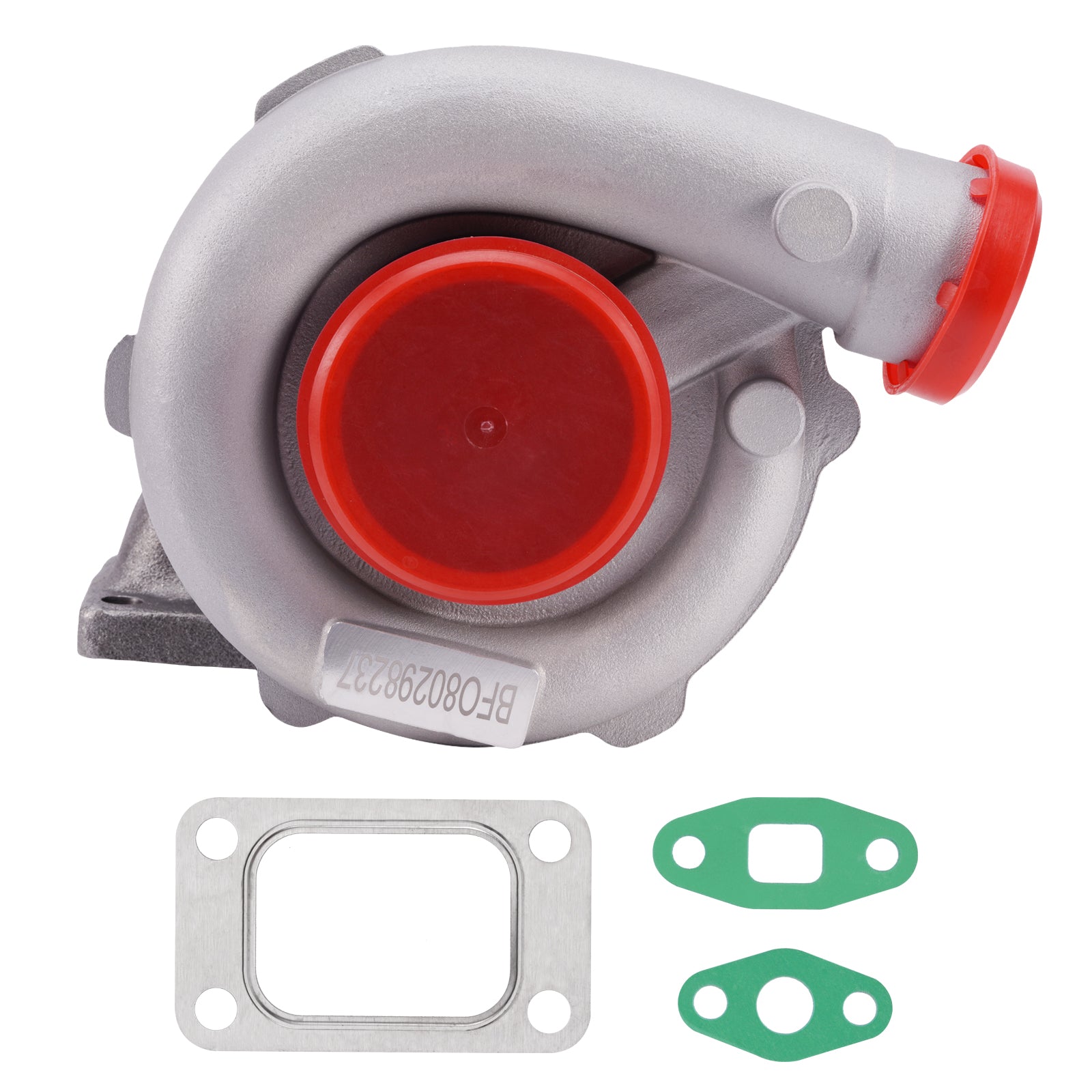

Package Weight: 7250g Package included1x Turbocharger
1x Flange Gasket
2x Oil Port Gaskets Features1. Cost-effective Turbo increase 20-40% power for your car
2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. ZL104 aluminum compressor housing with lightweight
6. 100% balancing Test by TURBOTECHNICS VSR3 Please note* Does NOT have an internal wastegate so you must have an external wastegate on your manifold.
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not OE parts. Please check the specifications and compatibility before purchasing.
* Before installation, please check the oil supply sufficient, cleanliness of the air filter and gasoline, and the gasoline air tightness
