Water Cooled Turbocharger 769708 Compatible for Nissan Navara 2.5L YD25DDTI2006-

This MaXpeedingRods part is suitable for Nissan applications where specified. Always check the part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Nissan Navara 2.5L YD25DDTI2006

Suitable for Nissan Pathfinder 2.5L YD25DDTI2006

*Notice:

1.Please Carefully distinguish this Turbo with 14411-EB300.

This turbo have 4 bolt exhaust inlet flange which connect with the manifold, but the inlet flange of 14411-eb300 only have 3 bolts.

2.DO NOT for 14411-5X01A which equipped with elctric actuator.OE-/Part Number769708,

769708-1,769708-0001, 769708-5001S,

769708-2,769708-0002, 769708-5002S,

769708-3,769708-0003, 769708-5003S,

769708-4,769708-0004, 769708-5004S,

767720,

767720-1,767720-0001, 767720-5001S,

767720-2,767720-0002, 767720-5002S,

767720-3,767720-0003, 767720-5003S,

767720-4,767720-0004, 767720-5004S,

767720-5,767720-0005, 767720-5005S,

767720-6,767720-0006, 767720-5006S,

14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,

14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,

14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,

14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,Specifications Turbo Model: For GT2056V, GTA2056LV

Eingine code: YD25DDTI

Cooling Type: Water & Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 171HP

Actuator Type:Vacuum actuator

Turbo Type:Individual/VNT

Universal Fitment: No

Finish: Matte

Condition: New

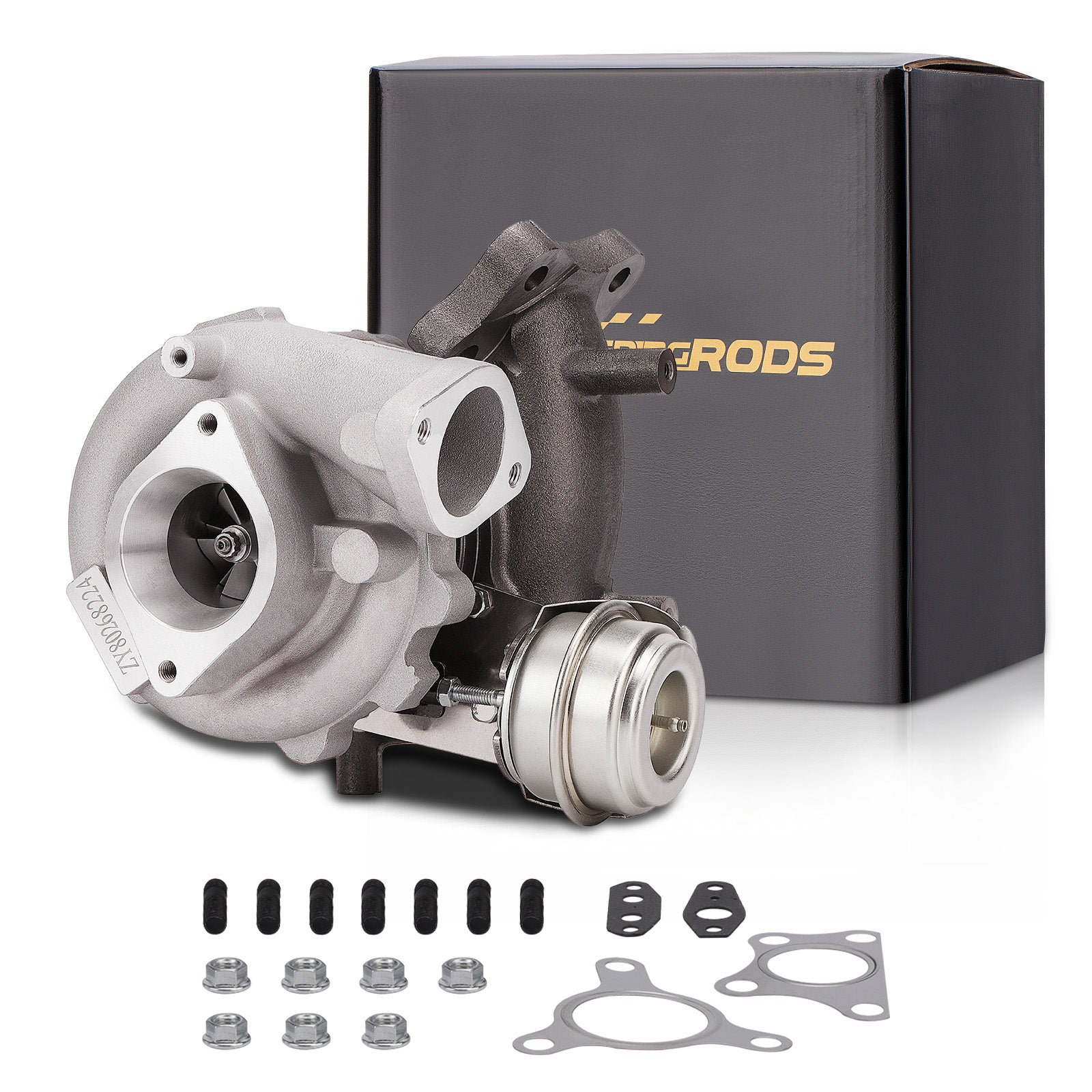

Accessories: You will receive the parts exactly as shown in the picture above

Package Size:25*24*23cm

Package Weight: :7940g Package included1x Turbocharger

2x Flange gaskets

2x Oil/Water port gaskets

7x Bolts

8x Nuts

1x Manual

1x Brochure

1x Sticker Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!Warranty: one year warranty for any manufacturing defect
