Turbocharger compatible for Audi A4 A5 A6 Q5 compatible for VW Volkswagen 2.0 TFSI 2009-2012 Quattro 06H145702L 06H145701Q

This MaXpeedingRods part is suitable for Audi, Volkswagen applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application2009-15 suitable for Audi A4, A4 Avant, Quattro Avant with CDNB,CDNC, CAEA, CAEB, CFKA Engine

2009-15 suitable for Audi A5 Coupe, A5 Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine

2010-15 suitable for Audi A5 Convertible with CDNB,CDNC, CAEA, CAEB, CFKA Engine

2009-15 suitable for Audi Q5 2.0L, S4 Avant, S5 Coupe, Sportback with CDNB,CDNC, CAEA, CAEB, CFKA Engine

2008- Suitable for Audi A5 Coupe 3.2L with CDNB,CDNC, CAEA, CAEB, CFKA Engine

2008-15 suitable for Audi A4, S4 with CDNB, CDNC, CAEA, CAEB, CFKA Engine

2008-15 suitable for Audi A5, S5 with CDNB, CDNC, CAEA, CAEB, CFKA Engine

2008-15 suitable for Audi A6 with CDNB, CDNC, CAEA, CAEB, CFKA Engine

2008-15 suitable for Volkswagen Passat with CDNB, CDNC, CAEA, CAEB, CFKA Engine

2008-15 suitable for Seat Exeo with CDNB, CDNC, CAEA, CAEB, CFKA Engine

*this turbo is not suitable for Audi A4 Quattro Base Sedan 4-Door 2.0L 1984CC 121 Cu. In. l4 GAS DOHC2012

OE/Part number06H145702L,06H 145 702 L,06H 145 702L,

06H145702S, 06H 145 702 S, 06H 145 702S,

06H145702G,06H 145 702 G,06H 145 702G,

06H145702Q,06H 145 702 Q, 06H 145 702Q ,

06H145702R,06H 145 702 R, 06H 145 702R ,

06H145702T, 06H 145 701 T, 06H 145 701T ,

06H145702LV, 06H145702LX,

06H145702SV,06H145702SX,

06H145702GV,06H145702GX,

06H145702QV,06H145702QX,

06H145702RV,06H145702RX,

06H145702TV,06H145702TX,

53039700291, 5303-970-0291,

53039880291, 5303-988-0291,

Specifications Turbo Model: RHF5

Engine Code:CDNB, CDNC, CAEA, CAEB, CFKA, TFSI

Cooling Type:Water Cooled

Bearing Type: Floating Bearing

Trust Bearing:360 degree

Hosepower: 155KW/211PS

Actuator Type: Electronic Actuator

Turbo Type:Individual

Condition: 100% Brand New

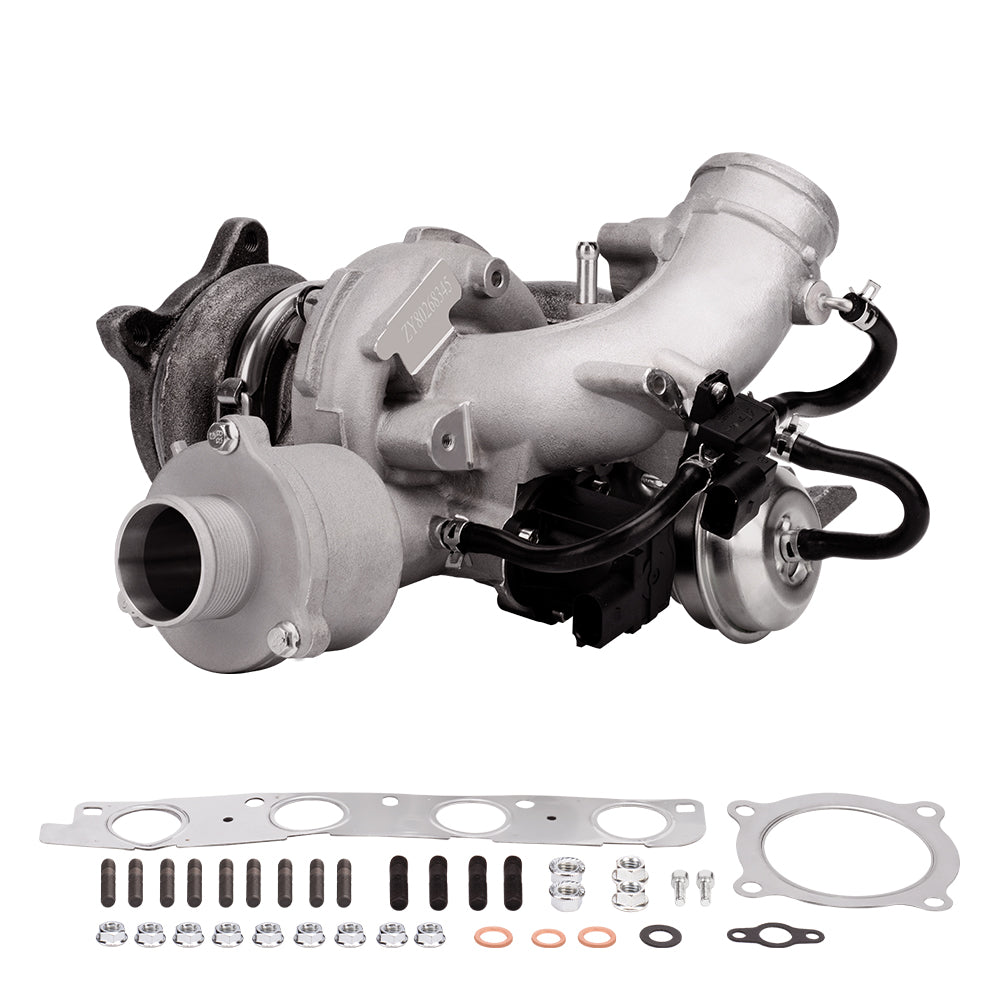

Accessories: You will get exactly as shown in the picture above

Package Size:49 x 38 x 26 cm

Package Weight: 12850g

Package included1x Turbocharger

1x Flange gaskets

2x Oil/Water port gaskets

1x Manifold gasket

13x Bolts Nuts

2x Screws

3x Washers

1x Manual

1x Brochure

1x Sticker

Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer

Please note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!Warranty: one year warranty for any manufacturing defect
