Turbo manifold Kit for GT35 GT3582 T3 a/r .63 compatible for Nissan Safari TD42 TB42 TD45 TB45

This MaXpeedingRods part is suitable for Nissan applications as specified. Always check part number, year, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Turbo Turbocharger & Exhaust Manifold Kit suitable for Nissan Patrol 4.2L TD42 GQ Y60

TD42 Turbo Manifold Kit

Application

Suitable for Nissan Safari / Suitable for Patrol 4.2L TD42TB42, TB45, TD45

Perfect for all 4/6 cylinder and 3.0L-6.0L engines

Horse Power: Capable of Boosting Horse Power up to 600HP

about turbo:

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange

Exhaust Outlet Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Bearing Type: Wet Float

Cooling Type: Water + Oil

Wastegate: W/O Wastegate

Oil feed/inlet: M10*7/16-24

Oil drian/outlet: M14.1 & 2*M8*1.25

water inlet/outlet: M14* 1.5

Maximum PSI: 22

Warranty: one year for any manufacture defects

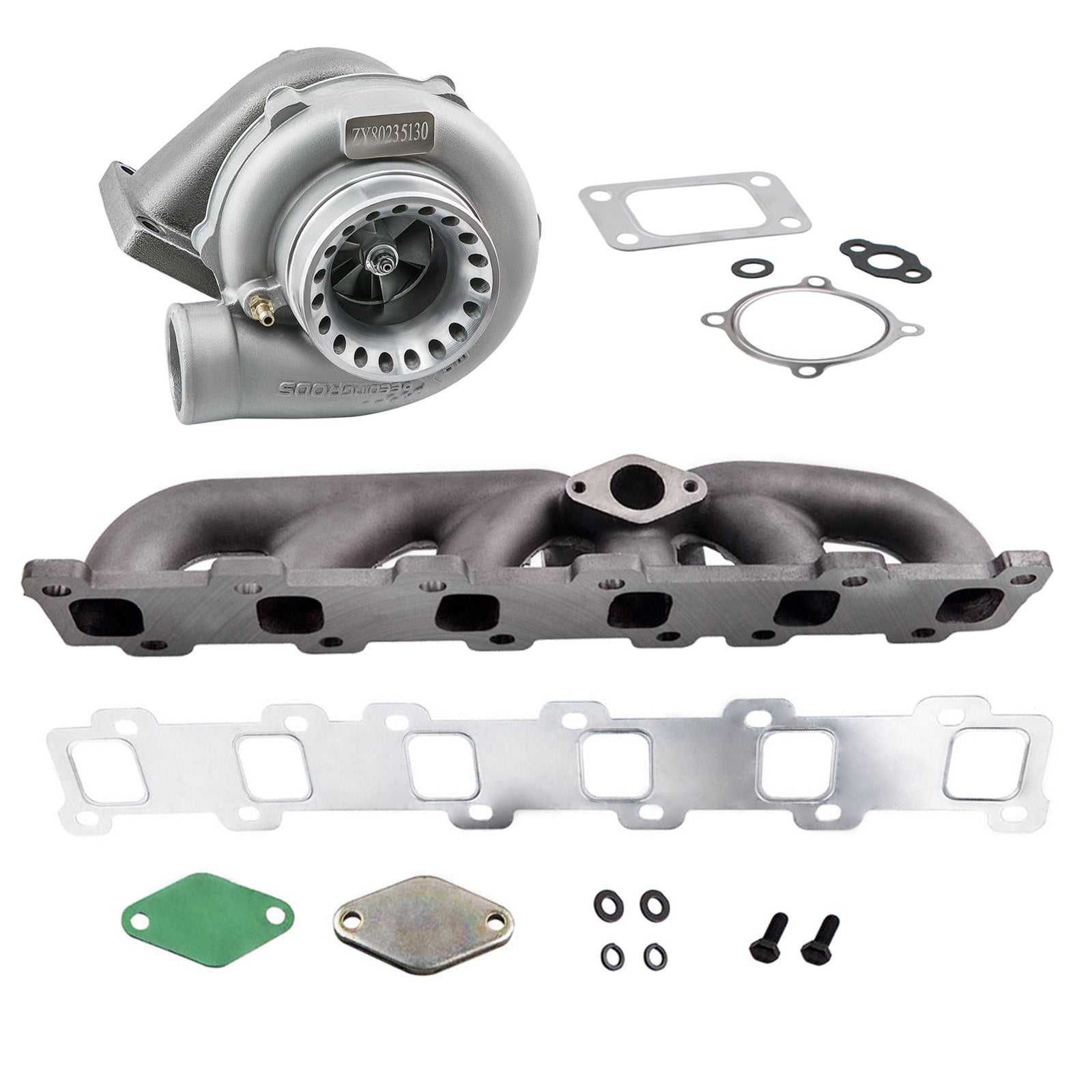

Include：Turbo Turbocharger & Exhaust Manifold Kit (same as picture)

About Manifold:

Turbo Flange :T3 flange

Mount Type:top mount / high mount

External Wastegate:38mm. You canplate itoff if intending to use internally wastegated Turbo(The blocking plate is included as shown in the picture)

Features

Product Material:

1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing: ZL104 aluminum

4. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance

5. Max HP: UP to 600hp

Product Features:

1. Excellent Design:

Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance

2. High Temperature Resistance:

special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°

3. High Efficiency:

High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag

4. Durable:

Water-cooled/oil-cooled structure extends turbine service life

5. 100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.

Product Features：

1. Rich Experience In Turbo Production And Own Factory

2. Quality Assurance

3. High-Speed Oil Seal Ring

4. Strict Quality Inspection

5. Precision Clearance

6. High-speed Accessories

7. Increase Engine Power

8. Improve Emissions & Save Oil

Installation Notice

We highly recommend you make sure the points below before installing:

1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.

2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.

3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.

Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.

Notice

* To protect the turbochager and your car engine, Air filter is necessary

* Professional installation is highly recommended

*This Turbo is not vehicle specific. It is compatible with a wide range of applications therefore Please check the specifications and verify compatibility prior to placing your order.

* For any needs please contact us
