Universal 16 Row Engine Transmission Oil Cooler Kit AN10 Aluminium Thermostat

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications, and Compatibility

Application Universal-Suitable for most cars, may requires additional accessories to meet the needs of the particular application. Please ensure enough space for installation.Specifications Type: 16-Row Oil Cooler Kit

Material: Aluminum

Style: English Style

Oil Cooler Inlet/Outlet Size: AN10

Corner Brace Thickness: 3mm

Hose Size:AN10

Hose Length: 1 Pc 1m & 1 Pc 1.2m

Hose Clamp Size: AN10

Oil Filter Sandwich Adapter Type: Banjo Fittings & Thermostatic Adapter

Banjo Fitting Size: AN10

Oil Filter Sandwich Adapter's Center Adapter: 3/4-16 & M20*1.5

Oil Filter Sandwich Adapter's Ports Size: 1/8 NPT Ports

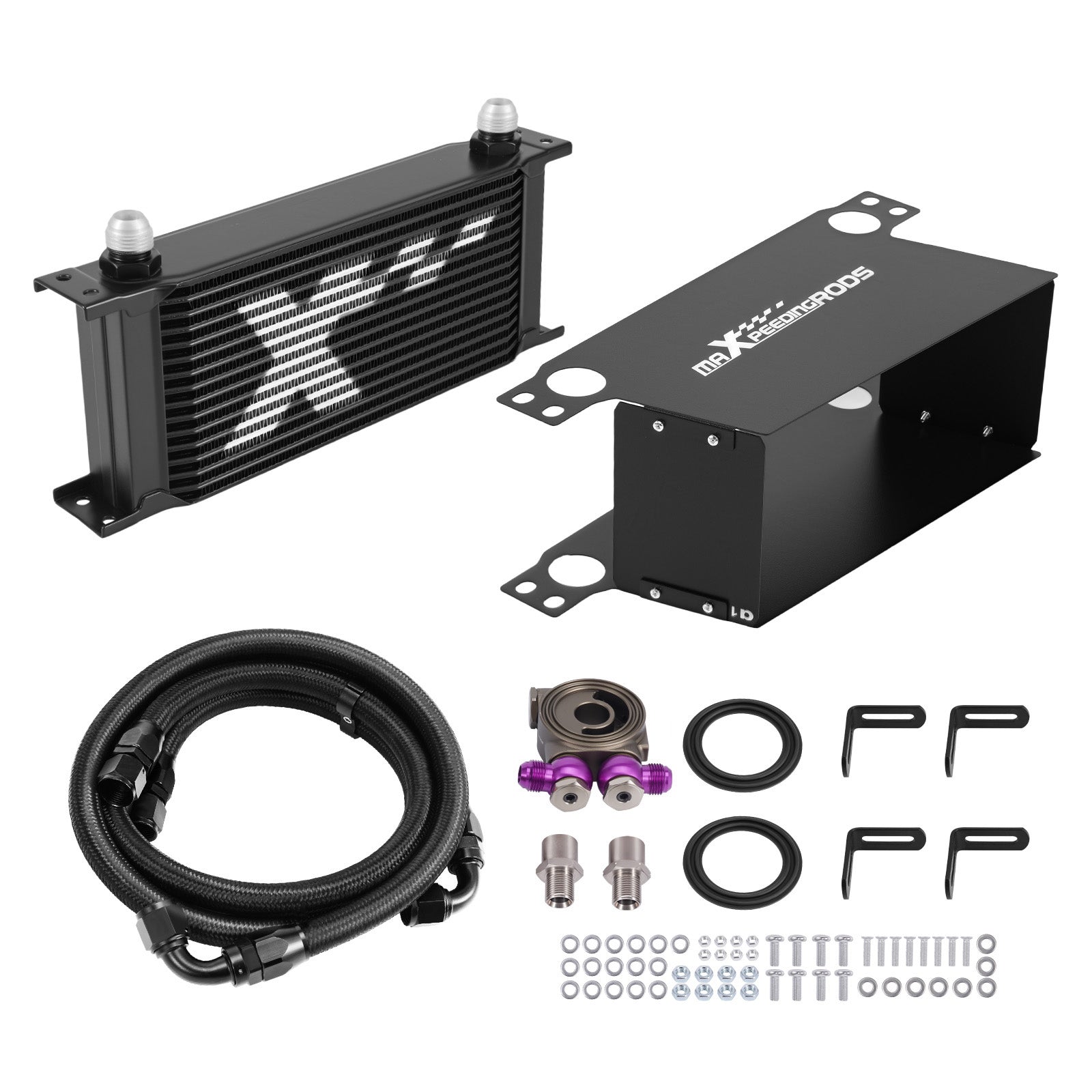

Thermostat Working Temperature: 73℃-83℃Package included1* 16-Row Oil Cooler

1* Air Guide Kit

1* Banjo Fittings Oil Filter Sandwich Adapter

1* AN10 Braided Oil Cooler Hose(1m)

1* AN10 Braided Oil Cooler Hose(1.2m)

1* Corner Brace Kit

1* 3/4-16 Center Adapter

1* M20*1.5 Center Adapter

1*Hose Clamp

(As Shown in the Picture)Features1. The oil cooler is made of high quality aluminum, and it is powder-coated and oxidized which can protect the product and be more durable.

2. This oil cooler kit is efficient to cool the oil temperature, and it can keep the oil at a suitable operating temperature to improve engine performance. It can also help to prolong the life of oil and the internal engine components.

3. The oil cooler kit includes a air guide kit, which canmake the contact area between the air and the oil cooler greater. Thus it can reduce the oil temperature more effectively. The air guide kit’s top cover and base plate can be interchanged to achieve either a left-facing or right-facing air intake. You can choose the orientation based on the vehicle's installation position.

4. This oil filter sandwich adapter is made of aluminum alloy for durability. It is elaborate because ofthe CNC machined from aluminum with an anodized finish. Purple fittings with cooper gold oil filter sandwich adapter are matched and fashionable. It has a thermostat which can automatically adjust the oil entering the oil cooler according to the oil temperature. This oil filter sandwich adapter includes two banjo fittings. They can achieve 360° rotation and ensure the oil filter sandwich adapter can be positioned at an optimal angle, regardless of the vehicle orientation. There are four 1/8 NPT ports for option to install oil temperature sensor or oil pressure sensor.

5. This oil cooler kit also includes 4 corner braces and other accessories which make the installation more secure.Note1. Preparation Before Installation: ①Fill the oil cooler with oil. ②Completely fill until all air is evacuated. ③Attach the AN10 oil cooler hoses. ④Fill the AN10 oil cooler hose with appropriateoil.

2. This is a universal oil cooler kit. Just measure the size of the space before buying to ensure that it can be installed, and then you can choose the right size according to your cooling efficiency needs.

3. The oil filter sandwich adapter's mounting threads are M20x1.5 and 3/4-16 UNF. Please confirm compatibility before installation.

4. Professional Installation is Highly Recommended.

5. The item description was measured by hand, it could have 1-2 inches deviation.
