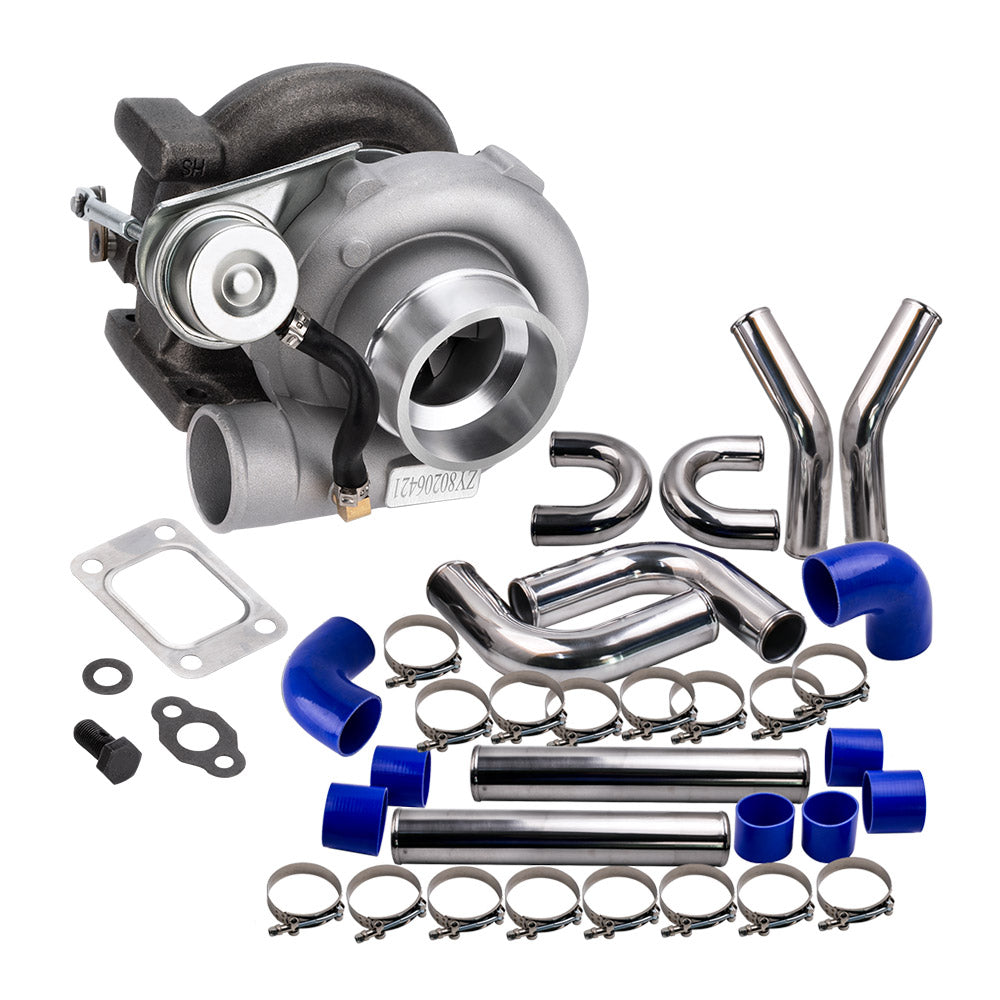

Universal T25 T28 Turbocharger and 3 inch 76mm Intercooler Piping pipe Blue hose Kits

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Perfect for all 1.5L-2.0L engine，for all 4 cylinder Horse Power: Boost Horse Power up to 350BHPThisis auniversal application turbo Kit.some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.Specificaties Package Including1x Turbo and gaskets2x 90 Degree Aluminum Pipe 3"2x Straight aluminum pipe 3"2x 45 Degree Aluminum Pipe 3"2x U Aluminum Pipe 3"8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue16x T-bolt Clamps Turbo Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange Exhaust Outlet (Downpipe) Flange: 5-Bolt Turbine Trim: 76 Turbine A/R: 0.64 Turbine Inducer Diameter: 53.8mm Turbine Exducer Diameter: 47mm Compressor Trim: 48 Compressor A/R: 0.60 Compressor Inducer Diameter: 49.2mm Compressor Exducer Diameter: 71 mm Bearing Type: Wet Float Cooling Type: Water + Oil Internal Wastegate: Yes Garantie: one year for any manufacture defects Oil Restrictor: Yes Oil Restrictor size：inside diameter 2mm Oil Inlet: M12*1.25 Oil Outlet:M14 2*M8*1.25 Water: M18*1.5 Horse Power: Boost Horse Power up to 350BHPAccessories: You will get exactly as shown as picture above Piping Pipe Kit Pipe Thickness: 1.8mm Pipe length: 18''Notice* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (No Instruction Included)
