Universal T3 T4 T04E Turbo Turbocharger .57 A/R Oil CooledTurbine 5 Bolts Flange for 1.5L to 2.5L 400HP

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications, and compatibility

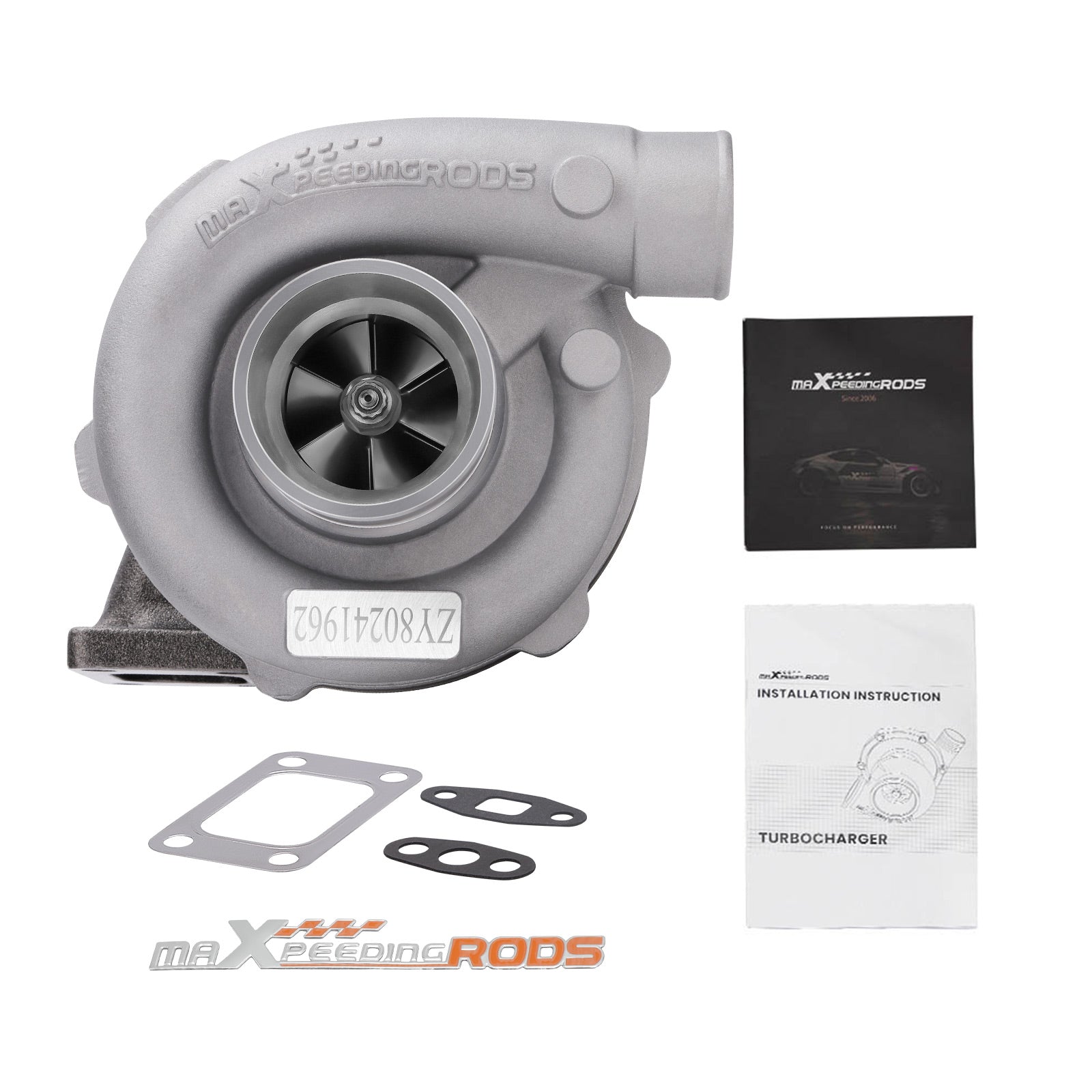

Overview Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods universal turbocharger got just what you're looking for. Don't hesitate to get a turbo to boost your car's power.Package included1x Turbocharger1x Flange Gasket2x Oil Port Gaskets1x Manual Application This item fits: Universal Application.Suitable for 1.5L to 2.5L any 4/6 cylinder engine Specifications Turbine Intake Flange: T3 T4 4 bolt Flange Patterns Turbine Exhaust Flange: Standard T3 5 bolt flange pattern Wastegate：Without Wastegate Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Turbine Trim: 74.2 Turbine A/R: 0.57 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust inlet: 45mm/87mm Compressor outlet: 42mm(inside diameter)、52mm(Outer diameter)Compressor inlet: 68 mm(inside diameter)、77mm(Outer diameter)Oil Inlet: M12*1.25 Oil Outlet:2*M8*1.25 Cooling Type: Oil Cooled Bearing Type: Floating Bearing/Journal Bearing Trust Bearing: 270 degree Hosepower:Up to 400+HPTurbo Type: Individual Universal Fitment: Yes Finish:Matte Condition: Brand New Product Size:23x 22x 18 cm Package Weight: 7620g Features*Product Material1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃3. Compressor housing：ZL104 aluminum with lightweight 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance*Product Performance1. Cost-effective turbo increase 20-40% power for your car2. Rich experience in turbo production and own factory3. High-Speed oil seal ring and Precision clearance4. Built for durability and strength* Technology Advantage: 1. 100% balancing Test by TURBOTECHNICSVSR32. G3-min-Flow VNT Turbo testing3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle.* Professional installation is highly recommended.* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
