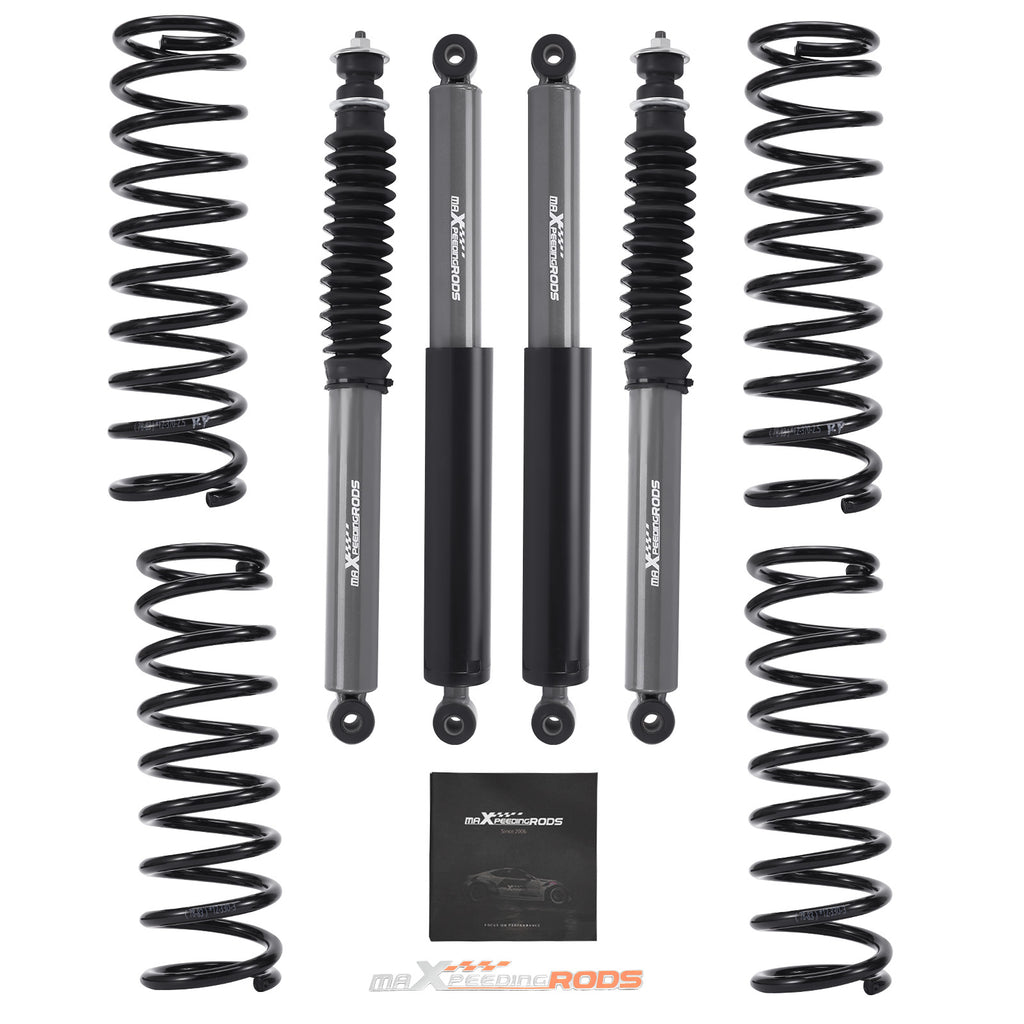

Front Rear Suspension Lift Kit Shock compatible for Suzuki Jimny 2" 50mm 98-13

This MaXpeedingRods part is suitable for Suzuki applications as stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Notice:

Pick up service is not available.

In order to ensure that you get the item well

Please confirm your Car Model numbers match our description

Application:

For Gen 3 (98-18) Compatible with Suzuki Jimny

Come with specific RHD springs

Specifications:

Product Type: suspension lift kit

Lift Height: 2" lift front and rear

Material: High Tensile Strength Steel

Finish: Powder coated

Bushing Material: Rubber

Diameter of Piston Rod: F&R 12.5mm/0.49"

Piston Diameter：F&R 25mm/0.98"

Outer Cylinder Diameter: F&R 40mm/1.57"

Travel Range: F: 175mm/ 6.88" R: 185mm/ 7.28"

Extended Length: F:521mm /20.51" R: 512mm/20.15"

Collapsed Length:F: 346mm/13.62" R: 327mm/12.87"

Nitrogen Charged：yes

Dust Cover Equipped: yes

Rear spring rate: 167.99 lb/in / 3kg/mm

Front spring rate: 139.99 lb/in / 2.5kg/mm

Features:

• Nitrogen charged twin-tube shock absorber with high durability.

• Power coated surface：provides superior corrosion resistance.

• Rubber bushings for better absorption.

• 35KN Tensile Strength.

• Precision Welding.

• Improve your on and off-road ride.

Included:

2x rear shocks

2x rear coils

1x front driver side coil the longer one

1x front pass side coil

packge dimensions: 63*52*21 cm

weitght: 19.75kg
