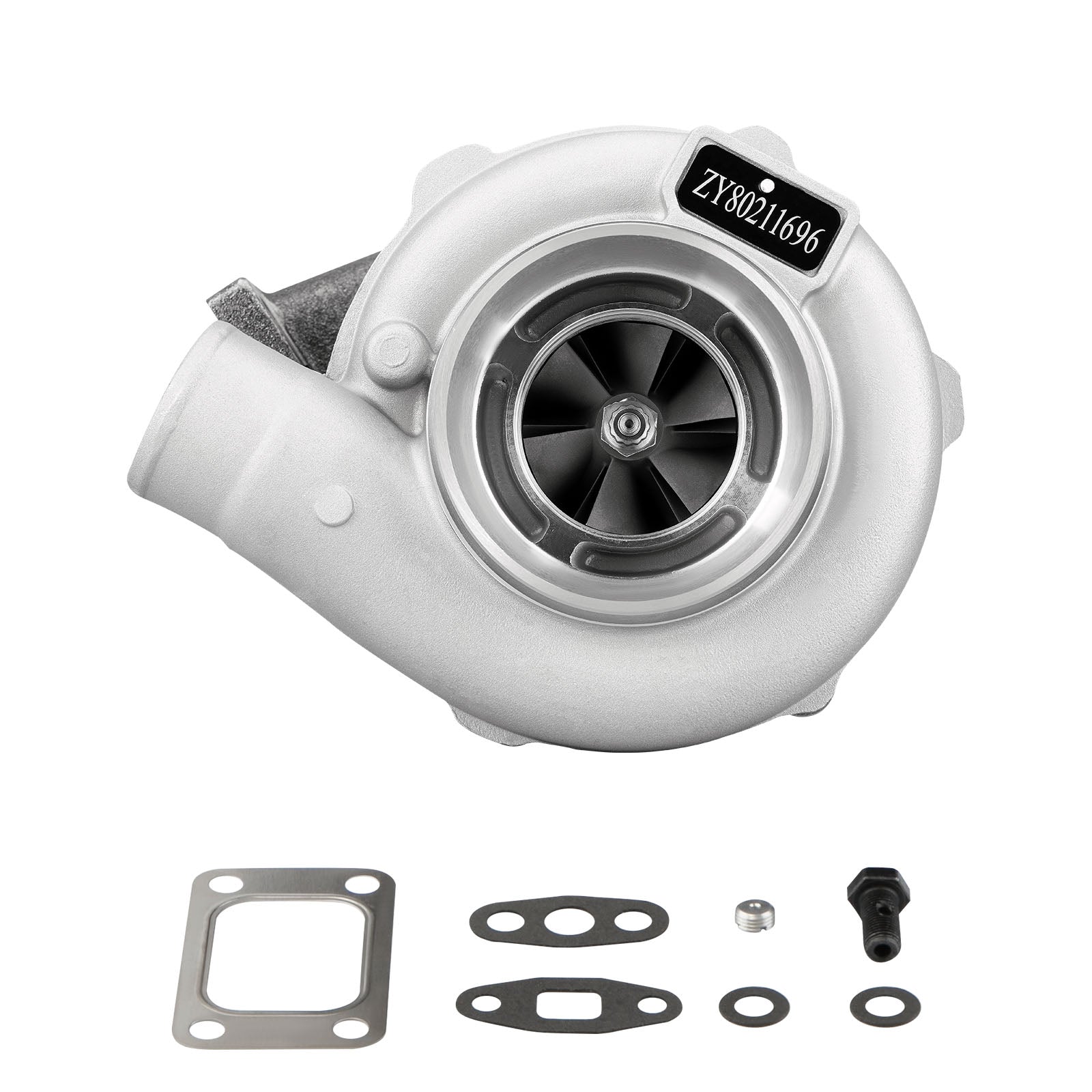

For GT30 GT3037 GT3076 T3 Flange A/R .6 Turbine A/R .82 Water Anti-Surge Turbo Turbocharger

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications, and compatibility

Application Perfect for all 4/ 6 cyl 2.5L-3.0L engines Specifications Universal Fitment: Yes Finish:Matte Exhaust Inlet Flange: Standard T3 Flange Exhaust Outlet Flange: 4-Bolt Turbine Side:Turbine Trim: 74.2 Turbine Inducer Diameter:64.8mm Turbine Exducer Diameter: 55.8mm Turbine A/R: 0.82 Compressor Side:Compressor Trim: 48.1 Compressor Inducer Diameter: 52.7mm Compressor Exducer Diameter: 76mm Compressor A/R:0.6 Oil Inlet: M12*1.25 & 2*M8*1.25 Oil Outlet: 2*M8*1.25 Water: M18*1.5 Horse Power: Capable of Boosting Horse Power up to 500BHPCooling Type: Water + Oil Cooled Bearing: Journal Bearing Wastegate: External Wastegate Thrust bearing: 270 Degrees Turbo Type: Individual State: 100% Brand New Accessories: You will get exactly as shown in the picture above Package Size:30 x 28 x 24cm Package Weight: 8750g Package included1x Turbocharger

1x Flange gasket

4x Oil/water port gaskets

1x Bolt Features*Product Material

1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* notice:This model is a universal turbo. Before purchasing, please confirm whether there is enough space in your car to install this turbo.* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Gasoline car must install a water cooling device to avoid overheating.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
