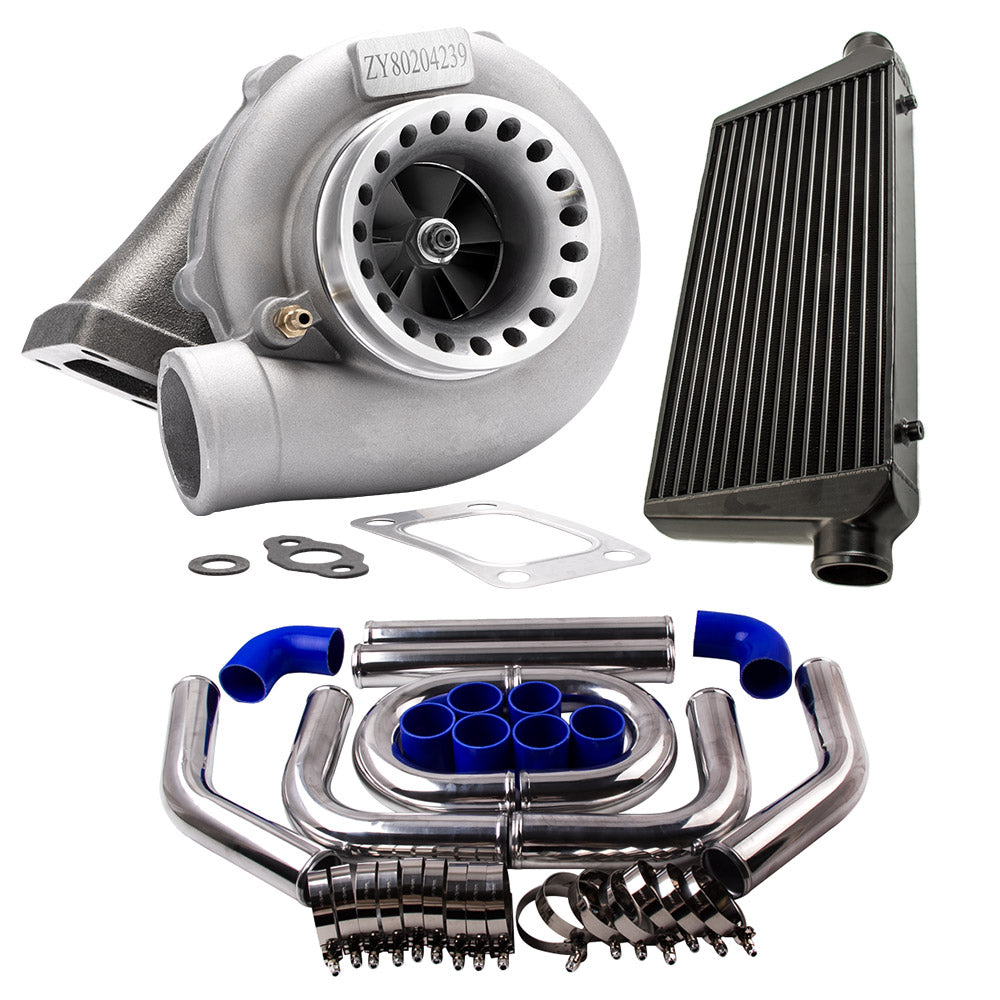

For GT3582 Turbo compatible for Ford Falcon BA/BF XR6 FPV and 64mm Pipe Kits and Intercooler 76mm

This MaXpeedingRods part is suitable for Ford applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Perfect for all 4/6 cylinder and 3.0L-6.0L engines Horse Power: Capable of Boosting Horse Power up to 600HPCooling Type: Water + Oil Specifications Turbo Exhaust Inlet (Turbo Manifold) Flange: T3 Flange Exhaust Outlet (Downpipe) Flange: 4 Bolt Turbine Trim: 84 Turbine Inducer Diameter: 68mm Turbine Exducer Diameter: 62.4mm Turbine A/R: 0.63 Compressor Trim: 57 Compressor Inducer Diameter: 61.5mm Compressor Exducer Diameter: 81.5mm Compressor A/R: 0.7 Bearing: Wet Float Warranty: one year for any manufacture defects Internal Wastegate: No Intercooler Turbo Piping Pipe Kit Pipe Thickness: 1.8mm Pipe length: 18''-New Never been tried or installed.-100% quality assurance tested-Made out of high quality of 6061 aluminum Manual polishing finished Intercooler Core Dimension: 600 X 300 X 76 MMInlet / outlet size: 3" inch Thickness: 3" (76mm)Pipe length: 18''Pipe Thickness: 1.8mm Oil Inlet: M10*7/16-24 Oil Outlet: M14.1 2*M8*1.25 Water: M14*1.5 Core design: Tube Fin Color: Black Intercoolers are designed with a tube and fin core which has the highest thermodynamic dissipative process.100% quality assurance tested Made out of high quality of 6061 aluminum Manual polishing finished Package Including2x 90 Degree Aluminum Pipe 2.5"2x Straight aluminum pipe 2.5"2x 135 Degree Aluminum Pipe×2 2.5"2x U Aluminum Pipe×2 2.5"6x Straight Silicon Hose 2.5" (Blue )2x 90 Degree Silicone Hose×2 2.5"(Blue )16x Clamps 2.5"1x Turbo and gaskets600x300x76mm Intercooler Features1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius3. Compressor housing：ZL104 aluminum4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance5.The impeller is colored by five-axis CNC milling, the shape of the blade is more perfect, and the precision is higher.6.Water-cooled/oil-cooled structure extends turbine service life.7.100% BALANCING TEST：This Turbocharger you will receive has been balanced using the VSR machine technology.8.Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance.9. Max HP： UP to 600hp.Notice* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (No Instruction Included)
