for GT45 Universal Turbo Turbocharger A/R 1.05600+ BHP w/ Oil Feed Drain Lines
for GT45 Universal Turbo Turbocharger A/R 1.05600+ BHP w/ Oil Feed Drain Lines
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
For GT45 Universal Turbo Turbocharger A/R 1.05600+ BHP w/ Oil Feed Drain Lines
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Benefits
- Based on original MaXpeedingRods product information
- Suitable for direct replacement or performance upgrade
Application, specifications and compatibility

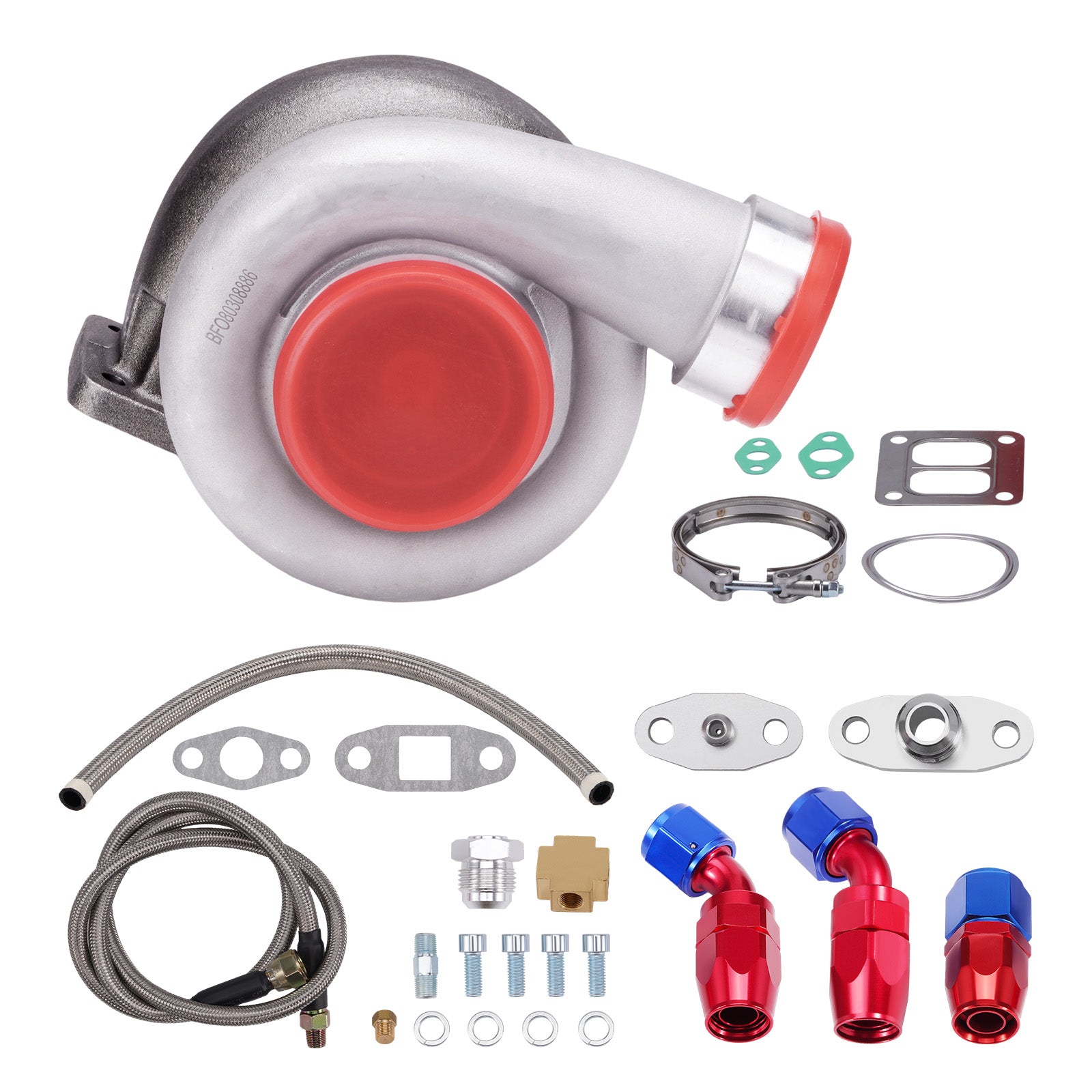

For GT45 Turbocharger & Oil Return Feed Line Kits
Application
Perfect for all 4.0L-6.0L engine
Horse Power:Capable of Boost Horse Power up to 600+ BHP
About turbo
Specifications
Compressor
Compressor Trim:49.6
Compressor Inducer Diameter:69 mm
Compressor Exducer Diameter:98 mm
Compressor A/R:0.66
Turbine
Exhaust Inlet (Turbo Manifold) Flange:T4 Twin Scroll Flange
Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Turbine Trim:77.6
Turbine Inducer Diameter:88 mm
Turbine Exducer Diameter:77.5 mm
Turbine A/R:1.05
Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Cooling Type: Oil Cooled
Bearing:Wet Float
Wastegate:w/o Wastegate
Turbo Height:243cm
Turbo Width:273cm
About Oil lines
* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
