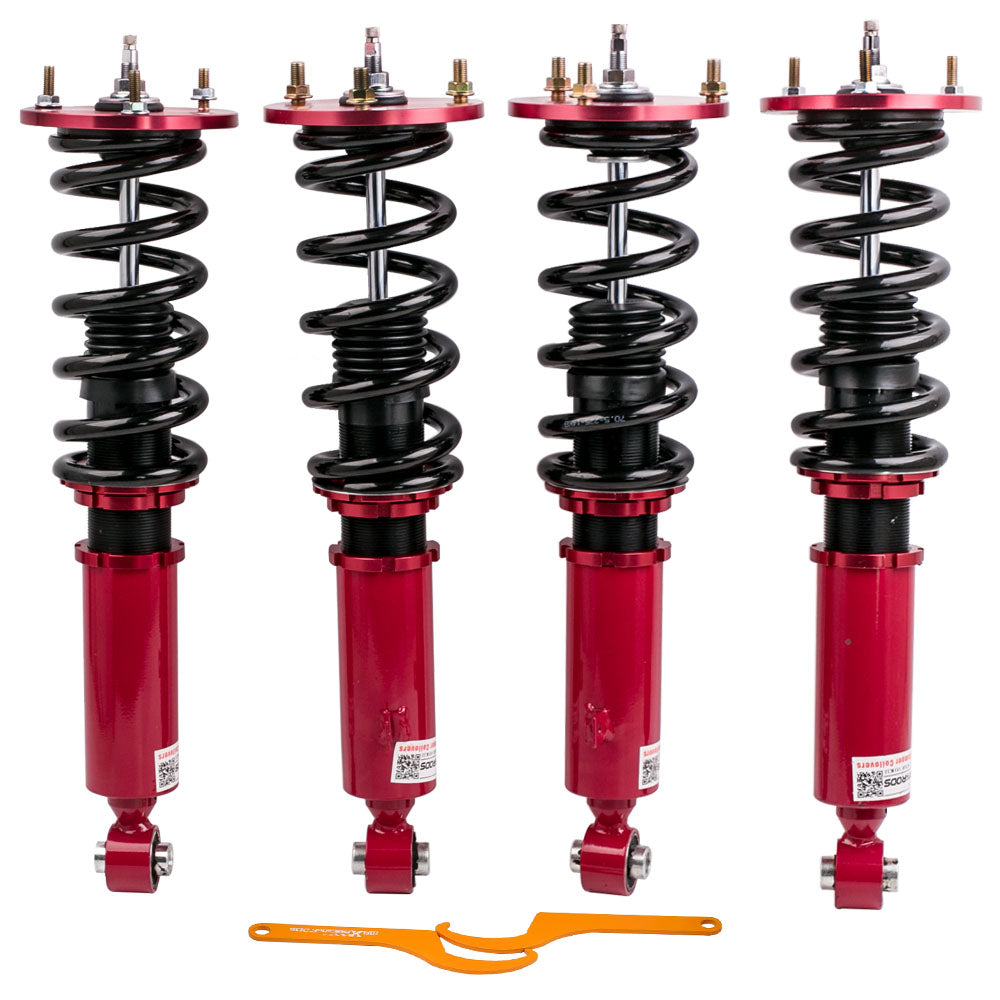

For MK3 87-93 compatible for Supra 24 Way Adj. Damper and Height Shocks Absorber Tuning Coilovers

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications, and compatibility

Application Suitable for TOYOTA　Suitable for SUPRA　1986.01-1990.08　JPN　MA70　GT TURBO, GT TWIN TURBO SSuitable for TOYOTA　Suitable for SUPRA　1986.01-1993.04　JPN　GA70　G, GT, GT TWIN TURBOSuitable for TOYOTA　Suitable for SUPRA　1987-1992　USA　MA70LSuitable for TOYOTA　Suitable for SUPRA　1990.08-1993.04　JPN JZA70　GT, TWIN TURBO, TWIN TURBO RSuitable for TOYOTA　SOARER　1986.01-1991.05　JPN　GZ20　GT TWIN TURBO, TWIN TURBO L, 2.0VXSuitable for TOYOTA　SOARER　1986.01-1991.05　JPN　MZ20　GT, GT LIMITEDSpecifications Front and Rear top mount: Standard rubber Damping adjustable: Available, 24 levels of rebound damping force Camber adjustable: Not available Height adjustable: Yes, lowering 25-75mm depending on the vehicle models Spring Rate Front: 14 kg/mm (784 lbs/in)Spring Rate Rear: 12 kg/mm (672 lbs/in)Front spring inner diameter: 70.5 mm Rear spring inner diameter: 70.5 mm Spring length Front: 230 mm Spring length Rear: 230 mm Spring Preload advised: 7-10 mm Color: Red body with black spring Features1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight6. Heavy Duty Steel Lower Mounts--- Highly Durable Reliable7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.9. Twin-Tube structure ---provides excellent handling control characteristics for most driving conditions10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts Please note1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.3. Impact wrench is prohibited during the installation, it will loosen or damage the product.4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
