Product description

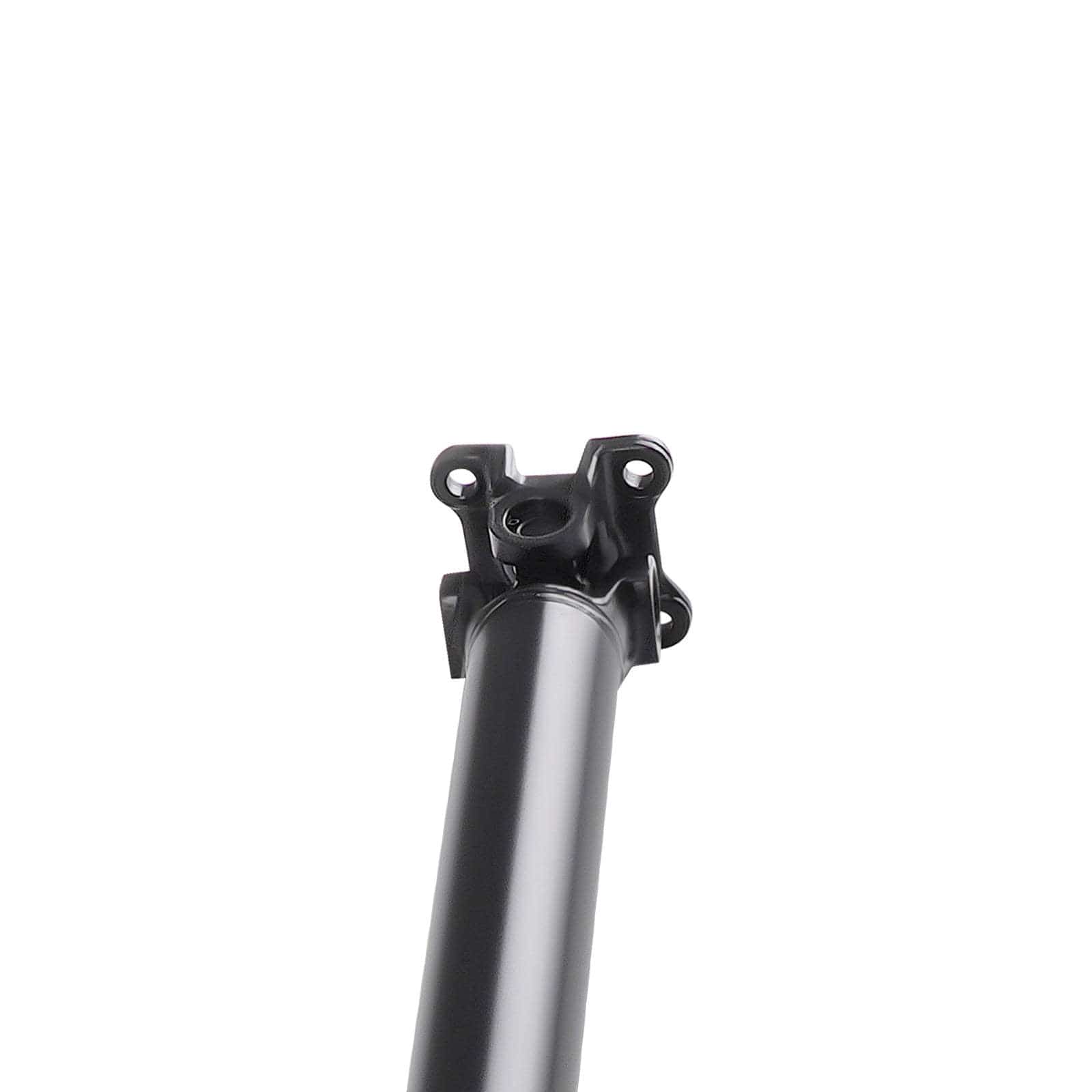

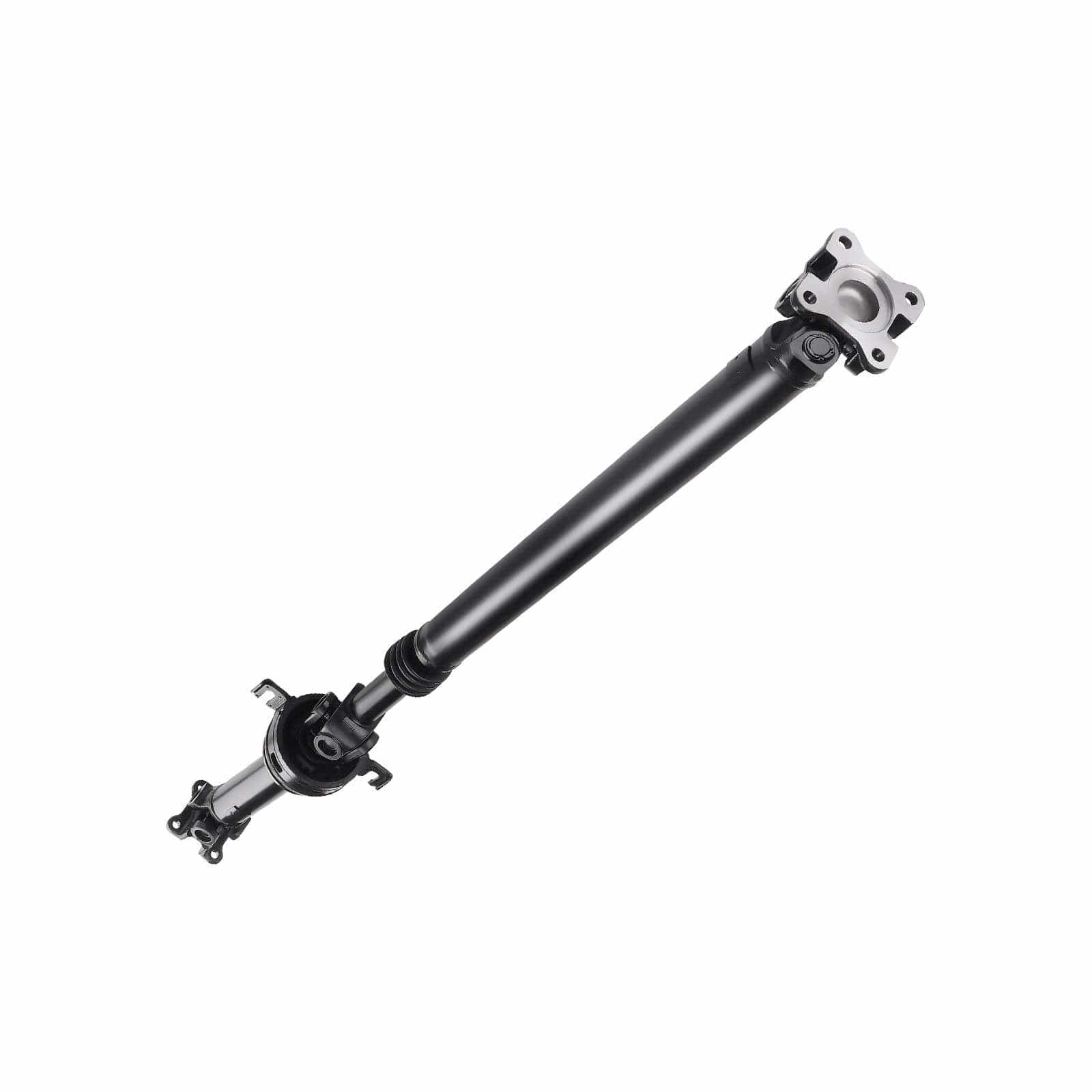

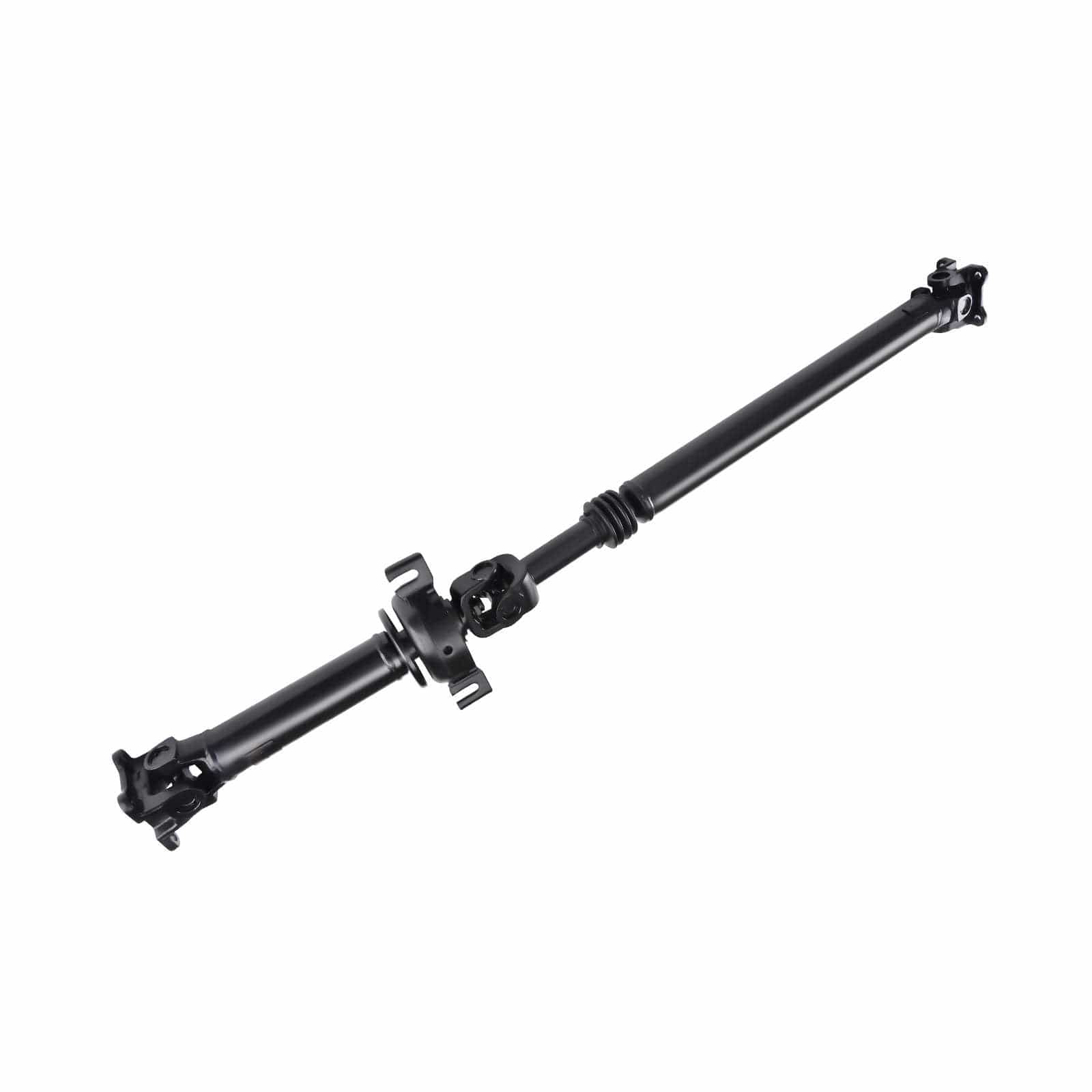

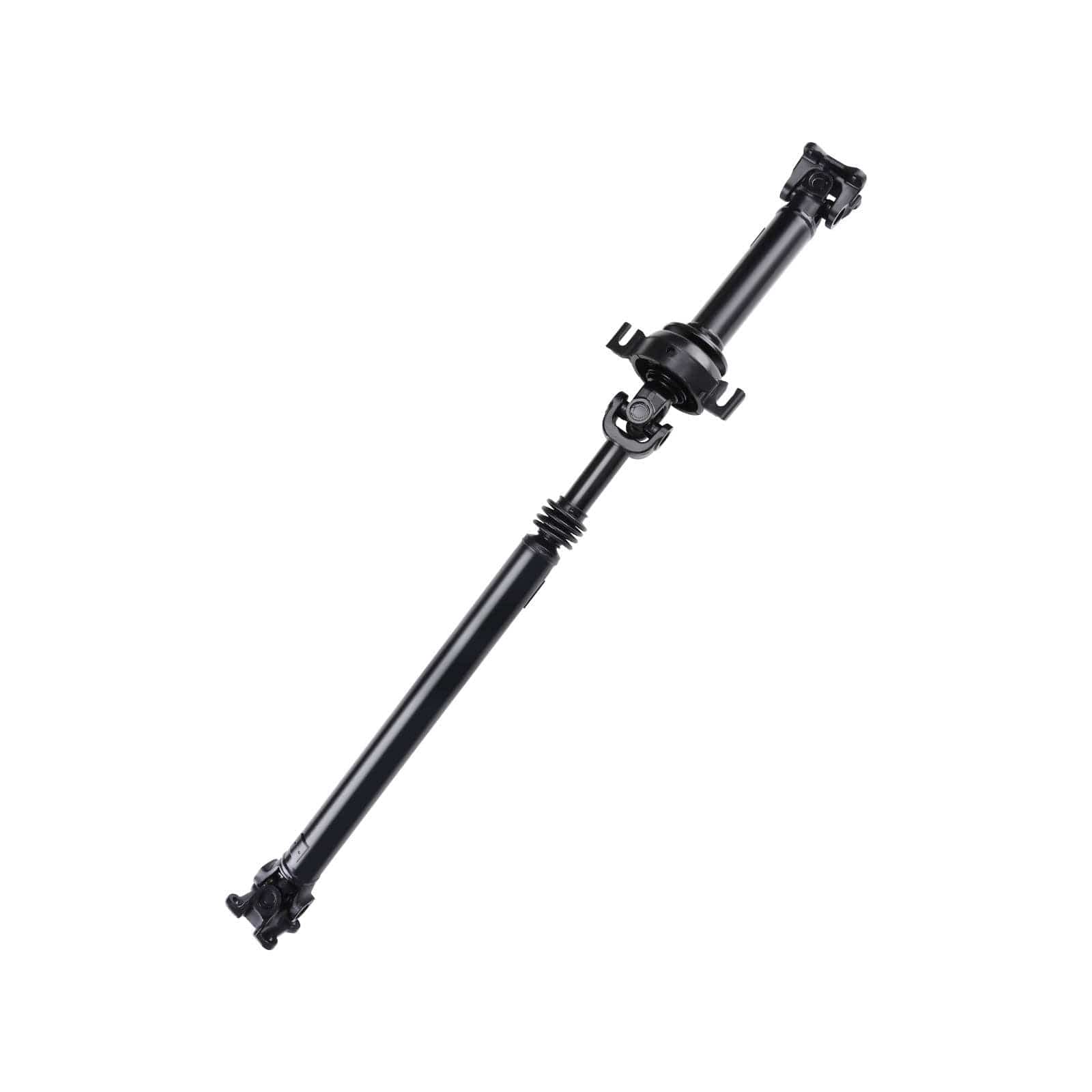

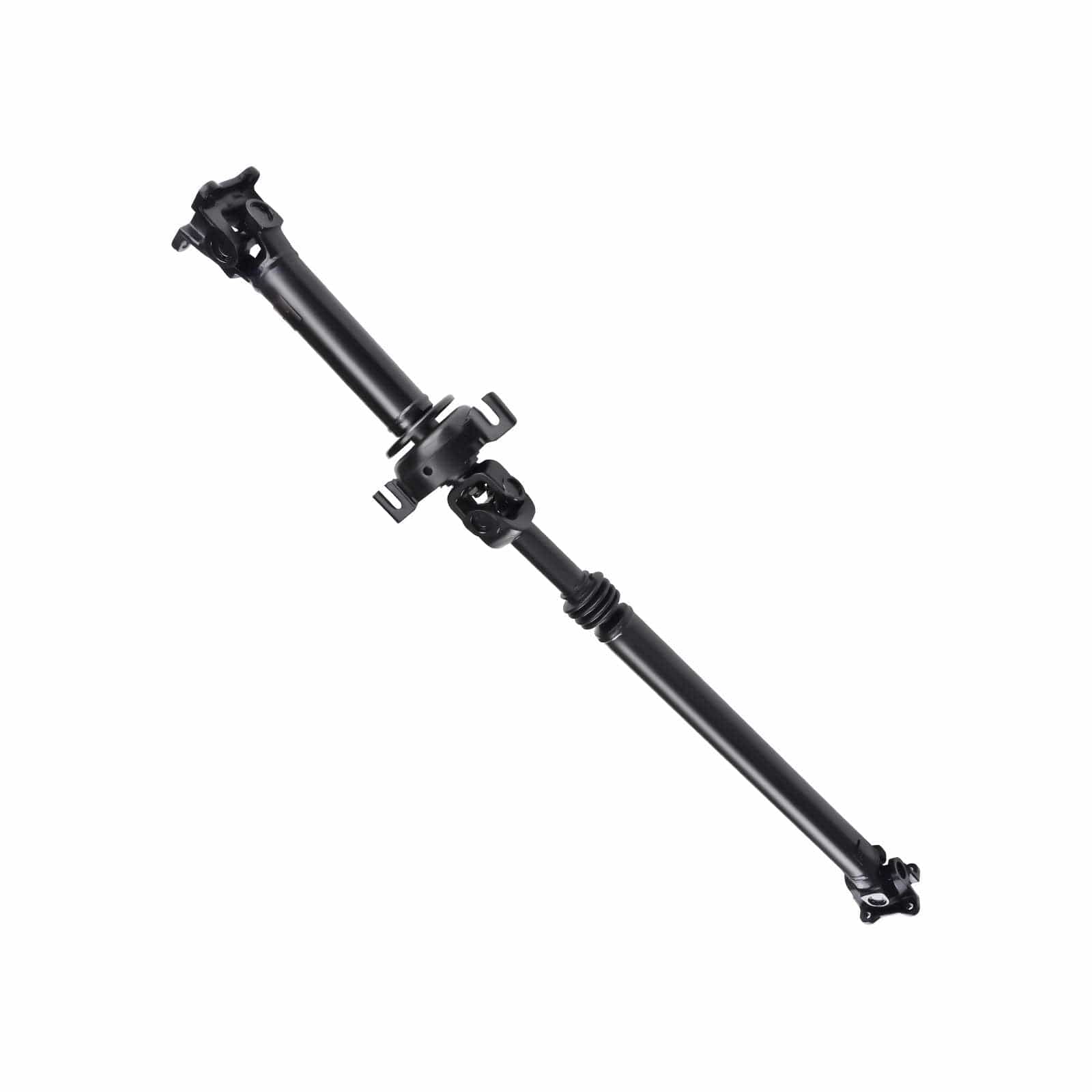

Rear driveshaft (cardan shaft), suitable for Mazda BT-50 Pick-up and related Ford Ranger models.

Suitable for:

• Mazda BT-50 Pick-up CD, UN 2.6 4x4, 2606 cc, 92 kW, 125 hp, 2006/10-2015/12
• Mazda BT-50 Pick-up CD, UN 3.0 CDVi, 2953 cc, 115 kW, 156 hp, 2006/12-2015/12
• Mazda BT-50 Pick-up CD, UN 3.0 CDVi 4x4, 2953 cc, 115 kW, 156 hp, 2006/10-2015/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.2 MZ-CD, 2198 cc, 92 kW, 125 hp, 2015/04-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.2 MZ-CD 4WD, 2198 cc, 110 kW, 150 hp, 2011/11-2020/11
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.2 MZ-CD 4WD, 2198 cc, 88 kW, 120 hp, 2011/11-2023/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.2 MZ-CD 4WD, 2198 cc, 92 kW, 125 hp, 2012/12-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.5 CNG, 2488 cc, 122 kW, 166 hp, 2011/11-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.5 MZi, 2488 cc, 122 kW, 166 hp, 2011/11-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.5 MZi 4WD, 2488 cc, 120 kW, 163 hp, 2011/11-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.5 MZi 4WD, 2488 cc, 122 kW, 166 hp, 2011/11-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 3.2 MZ-CD, 3198 cc, 147 kW, 200 hp, 2011/11-2023/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 3.2 MZ-CD 4WD, 3198 cc, 147 kW, 200 hp, 2011/11-2023/12
• Mazda BT-50 Pick-up CD, UN 2.2, 2184 cc, 68 kW, 92 hp, 2006/10-2013/06
• Mazda BT-50 Pick-up CD, UN 2.2, 2184 cc, 73 kW, 99 hp, 2006/10-2013/06
• Mazda BT-50 Pick-up CD, UN 2.5 MZR-CD, 2499 cc, 105 kW, 143 hp, 2006/08-2013/06
• Mazda BT-50 Pick-up CD, UN 2.5 MZR-CD 4x4, 2499 cc, 105 kW, 143 hp, 2006/12-2015/12
• Mazda BT-50 Pick-up CD, UN 2.5 TDi, 2499 cc, 81 kW, 110 hp, 2006/08-2015/12
• Mazda BT-50 Pick-up CD, UN 2.5 TDi 4x4, 2499 cc, 81 kW, 110 hp, 2006/08-2015/12
• Mazda BT-50 Pick-up CD, UN 2.6, 2606 cc, 90 kW, 122 hp, 2006/10-2013/06
• Mazda BT-50 Pick-up CD, UN 2.6, 2606 cc, 92 kW, 125 hp, 2006/10-2015/12
• Mazda BT-50 Pick-up CD, UN 2.6 4x4, 2606 cc, 90 kW, 122 hp, 2006/10-2011/11
• Mazda BT-50 Pick-up CD, UN 2.6 4x4, 2606 cc, 115 kW, 156 hp, 2006/10-2015/12
• Ford Ranger TKE 2.2 TDCi, 2198 cc, 96 kW, 131 hp, 2015/05-2016/12
• Ford Ranger TKE 2.2 TDCi 4x4, 2198 cc, 92 kW, 125 hp, 2011/04-2016/12
• Ford Ranger TKE 2.2 TDCi 4x4, 2198 cc, 110 kW, 150 hp, 2011/04-2024/12
• Ford Ranger TKE 2.2 TDCi 4x4, 2198 cc, 96 kW, 131 hp, 2015/05-2016/12
• Ford Ranger TKE 2.2 TDCi 4x4, 2198 cc, 118 kW, 160 hp, 2015/05-2024/12
• Ford Ranger TKE 2.5i, 2488 cc, 122 kW, 166 hp, 2011/11-2024/12
• Ford Ranger TKE 2.5i 4x4, 2488 cc, 122 kW, 166 hp, 2011/11-2016/12
• Ford Ranger TKE 2.0 EcoBlue, 1995 cc, 125 kW, 170 hp, 2021/06-2024/12
• Ford Ranger TKE 2.0 EcoBlue 4x4, 1995 cc, 157 kW, 213 hp, 2018/09-2024/12
• Ford Ranger TKE 2.0 EcoBlue 4x4, 1995 cc, 125 kW, 170 hp, 2019/03-2024/12
• Ford Ranger TKE 2.0 EcoBlue 4x4, 1995 cc, 96 kW, 130 hp, 2019/03-2024/12
• Ford Ranger TKE 2.0 EcoBlue rear-wheel drive, 1996 cc, 132 kW, 180 hp, 2018/09-2024/12
• Ford Ranger TKE 3.2 TDCi, 3198 cc, 147 kW, 200 hp, 2011/11-2024/12
• Ford Ranger TKE 3.2 TDCi 4x4, 3198 cc, 147 kW, 200 hp, 2011/04-2024/12
• Ford Ranger TKE 3.2 TDCi 4x4, 3198 cc, 147 kW, 200 hp, 2018/06-2024/12
• Mazda BT-50 II Pick-up B22, B32, UP, UR 2.2 MZ-CD, 2198 cc, 110 kW, 150 hp, 2011/11-2020/06

Specifications

• OEM / Part Number: SA6825100D, SA6825100E, SA6825100F, SA6825100G, UR7725100A, 6M344602CE, 6M344602CB, 6M34-4602-CE, 1447190, 5006136, 5223453
• Condition: New
• Installation Position: Rear
• Material: Steel
• Total driveshaft length: 58.346 in.
• Driveshaft extended length: 2.362 in.
• Driveshaft compressed length: 55.984 in.
• Driveshaft wall thickness: 0.071 in.
• Driveshaft diameter: 2.5 in.
• Greaseable: No
• Total length adjustable: Yes
• Type: Direct replacement

Check fitment

Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
